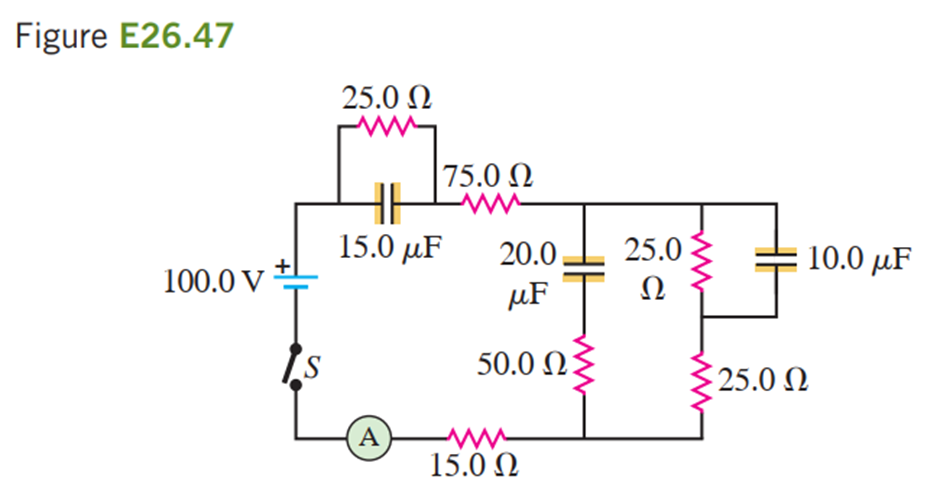

Question: In the circuit, in Fig. E26.47 the capacitors are initially uncharged, the battery has no internal resistance, and the ammeter is idealized. Find the ammeter reading (a) just after the switch S is closed and (b) after S has been closed for a very long time.

Short Answer

Expert verified

Answer:

(a) The ammeter reading will be 0.937 A just after the switch S is closed after the capacitors are initially uncharged.

(b) The reading in the ammeter after the switch S is closed for a long time is 0.606 A

Step by step solution

01

Capcitive behavior

The potential across an uncharged capacitor is initially zero, so it behaves like a short circuit.

02

Current just after the switch S is closed

Here the switch is just closed which means that each capacitor acts as a short circuit. Hence the equivalent resistance for the circuit, for R3 and R5 are in parallel therefore the equivalent resistance is given by:

R3,5=R3R5R3+R5

Now, putting the values we get:

R3,5=R3R5R3+R5=50Ω25Ω50Ω+25Ω=16.7Ω

Now the combination in series with and the equivalence resistance in the circuit is given by:

Req=R3,5+R2+R6=16.7Ω+75Ω+15Ω=106.7Ω

Now using Ohms law, we get:

I=εReq=100V106.7Ω=0.937A

There the current just after the switch S is closed after the capacitors are initially uncharged is

03

Reading after the switch is closed for a long time

A fully charged capacitor acts as an infinite resistance which blocks the current. When the capacitors block the currents all the resistors will be in series, hence the equivalent resistance in the circuit will be:

Req=15Ω+25Ω+25Ω+75Ω=165Ω

According to Ohms law, we get the current in the ammeter:

I=εReq=100V165Ω=0.606A

Therefore, the current after the switch was closed for a long time is
