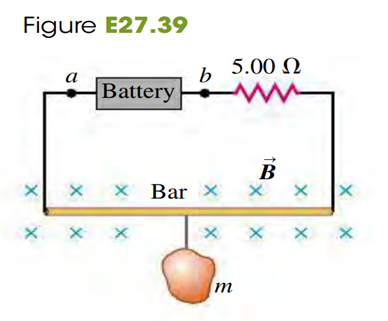

Magnetic Balance. The circuit shown in Fig. E27.39 is used to make a magnetic balance to weigh objects. The mass m to be measured is hung from the centre of the bar that is in a uniform magnetic field of 1.50 T, directed into the plane of the figure. The battery voltage can be adjusted to vary the current in the circuit. The horizontal bar is 60.0 cmlong and is made of extremely light-weight material. It is connected to the battery by thin vertical wires that can support no appreciable tension; all the weight of the suspended mass m is supported by the magnetic force on the bar. A resistor withR=5.00is in series with the bar; the resistance of the rest of the circuit is much less than this. (a) Which point, a or b, should be the positive terminal of the battery? (b) If the maximum terminal voltage of the battery is 175 V, what is the greatest mass m that this instrument can measure?

Short Answer

Expert verified

(a) The positive terminal of the battery is at a.

(b) The greatest mass m that this instrument can measure is 3.21 kg .

Step by step solution

01

Identification of the given data

The horizontal bar is, l = 60.0 cm .

The uniform magnetic field is, B = 1.50 T .

The resistor is, R=5.00.

The maximum terminal voltage of the battery is, V = 1775 V .

02

The significance of magnetic field

A magnetic field is a field that describes the magnetic influence on a space object.

03

Determination of the positive terminal of the battery

(a)

By varying current, the battery voltage is adjusted.to measure mass m apply magnetic field which has same magnitude of gravitational force in opposite direction so the magnetic field points upwards.by right hand rule current in the circuit flows in counter clockwise direction.

Thus, for this current flow the positive terminal of battery is a.

04

Determination of the greatest mass

(b)

Maximum mass that instrument measure for V = 175 V is,

Angle between magnetic field and length is .magnitude of force is,

F=llBsin

And

I=VR

So,

F=VIBsinRF=VIBR (1)

Here I is the current, l is the wire length, R is the resistance and B is the magnetic field.

For gravitational force is expressed as,

F = mg 鈥(2)

From the equation (1) and (2).

mg=VIBRm=VIBgR

Here m is the mass and g is the gravitational acceleration.

Substitute all the value in the above equation.

m=(175V)(0.600m)(1.50T)(5.00)9.80m/s2=3.214kgm=3.21kg

Thus, the greatest mass m that this instrument can measure is m = 3.21kg .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(a) What is the potential difference Vadin the circuit of Fig. P25.62? (b) What is the terminal voltage of the 4.00-Vbattery? (c) A battery with emf and internal resistance 0.50is inserted in the circuit at d, with its negative terminal connected to the negative terminal of the 8.00-Vbattery. What is the difference of potential Vbcbetween the terminals of the 4.00-Vbattery now?

A 12.4-碌F capacitor is connected through a 0.895-M鈩 resistor to a constant potential difference of 60.0 V. (a) Compute the charge on the capacitor at the following times after the connections are made: 0, 5.0 s, 10.0 s, 20.0 s, and 100.0 s. (b) Compute the charging currents at the same instants. (c) Graph the results of parts (a) and (b) for t between 0 and 20 s

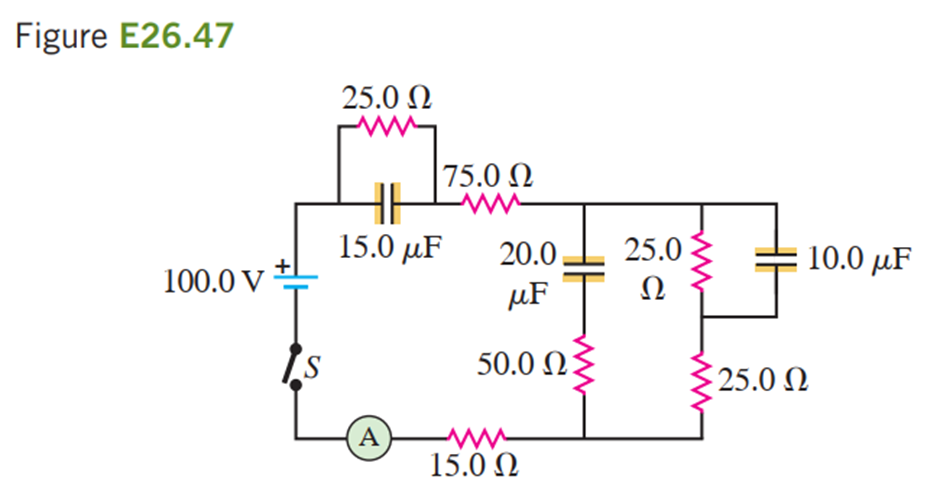

Question: In the circuit, in Fig. E26.47 the capacitors are initially uncharged, the battery has no internal resistance, and the ammeter is idealized. Find the ammeter reading (a) just after the switch S is closed and (b) after S has been closed for a very long time.
