An emf source with E = 120 V, a resistor with R = 80.0 鈩�, and a capacitor with C = 4.00 碌F are connected in series. As the capacitor charges, when the current in the resistor is 0.900 A, what is the magnitude of the charge on each plate of the capacitor?

Short Answer

Expert verified

When an emf source with E=120 V and a resistor with 80惟and a capacitor of 4.00渭贵are connected in series and the capacitor gets charges when the current in the resistor is 0.900 A then the magnitude of the charge in each plate capacitor is192渭颁

Step by step solution

01

EMF of the battery

Electromotive force (Emf) is the total amount of electrical potential energy a battery can supply before it is connected to an external circuit

02

Potential difference across the circuit

We know that the charges Q on the plates of the capacitor depend on the voltageVC across both the plates and it is given by:

Q=CVC

Where C is the capacitance. To find the value of Q we need to determine VC. To determine theVCwe will use the loop rule.

蔚-IR-VC=0VC=蔚-IR
03

Calculating the Voltage

Now in the above equation we put the values and get:

VC=蔚-IR=(120V)-(0.900A)(80惟)=48V

Now, putting the values of VCand C into the equation we get:

Q=CVC=(4渭贵)(48V)=192渭颁

Therefore, the magnitude of the charge is192渭颁

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In the circuit shown in Fig. E26.47 each capacitor initially has a charge of magnitude 3.50 nC on its plates. After the switch S is closed, what will be the current in the circuit at the instant that the capacitors have lost 80.0% of their initial stored energy?

A point charge is placed at each corner of a square with side length a. All charges have magnitude q. Two of the charges are positive and two are negative (Fig. E21.42). What is the direction of the net electric field at the canter of the square due to the four charges, and what is its magnitude in terms of q and a?

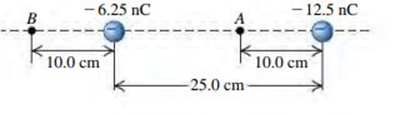

Two-point charges are separated by 25.0 cm (Fig. E21.43). Find the net electric field these charges produce at (a) point A and (b) point B. (c) What would be the magnitude and direction of the electric force this combination of charges would produce on a proton at A?
