Chapter 4: Q32E (page 914)

In the Bainbridge mass spectrometer (see Fig. 27.24), the magnetic-field magnitude in the velocity selector is 0.510 T, and ions having a speed of 1.82 * 106 m/s pass through undeflected. (a) What is the electric-field magnitude in the velocity selector? (b) If the separation of the plates is 5.20 mm, what is the potential difference between the plates??

Short Answer

Expert verified

a) The electric field magnitude in the velocity selector is 9.28脳105V/m

b) The potential difference between the two plates is 4.83脳103V

Step by step solution

01

The electric force and potential difference

The magnetic force is equal to the electric force

qvB = qE

And the potential difference across the electric field divided by the separation between the plates is equal to the electric field

E=Vd

02

Determine the electric field

(a)

The magnetic force equal to the electric force

qvB=qEE=vBThereforeE=(1.82脳106m/s)(0.510T)=9.28脳105V/m

Therefore, the electric field is9.28脳105V/m

03

Determine the potential difference between plates

The potential difference between the two plates is

E=VdTherefore,V=Ed=(9.28脳105V/m)(5.20脳10鈭�3m)=4.83脳103V


Therefore, the potential difference between the two plates is4.83脳103V

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A 12.4-碌F capacitor is connected through a 0.895-M鈩� resistor to a constant potential difference of 60.0 V. (a) Compute the charge on the capacitor at the following times after the connections are made: 0, 5.0 s, 10.0 s, 20.0 s, and 100.0 s. (b) Compute the charging currents at the same instants. (c) Graph the results of parts (a) and (b) for t between 0 and 20 s

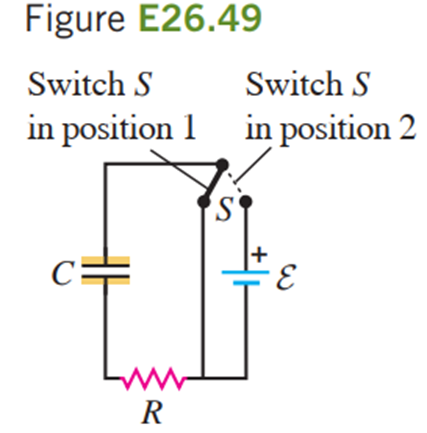

Question: In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?

In an electric trolley or bus system, the vehicle motor draws current from an overhead wire by means of a long arm with an attachment at the end that slides along the overhead wire. A brilliant electric spark is often seen when the attachment crosses a junction in the wires where contact is momentarily lost. Explain this phenomenon.

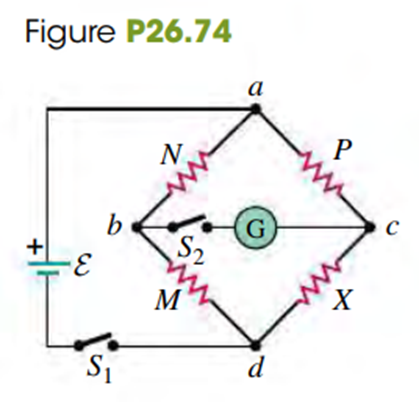

Question: The circuit shown in Fig. P26.74, called a Wheatstone Bridge, is used to determine the value of an unknown resistor X by comparison with three resistors M, N, and P whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches S1 and S2 closed, these resistors are varied until the current in the galvanometer G is zero; the bridge is then said to be balanced. (a) Show that under this condition the unknown resistance is given by X = MP/N. (This method permits very high precision in comparing resistors.) (b) If galvanometer G shows zero deflection when M = 850.0 鈩�, N = 15.00 鈩�, and P = 33.48 鈩�, what is the unknown resistance X?
