Chapter 4: Q19E (page 948)

(a) How large a current would a very long, straight wire has to carry so that the magnetic field 2 cm from the wire is equal to (comparable to the earth鈥檚 northward-pointing magnetic field)? (b) If the wire is horizontal with the current running from east to west, at what locations would the magnetic field of the wire point in the same direction as the horizontal component of the earth鈥檚 magnetic field? (c) Repeat part (b) except the wire is vertical with the current going upward.

Short Answer

Expert verified

a) l = 10A

b) At all points directly above the wire the field of the wire would point northward.

c) At all points directly east of the wire, its field would point northward.

Step by step solution

01

The formula to calculate the current

The magnetic field due to a very long wire is given byB=渭0I2蟺谤 .

The current can be found byI=2蟺谤B渭0 .

02

Calculate the current

Given that r = 2 cm andB=10-4T .

I=2蟺rB渭0I=2蟺脳0.02脳10鈭�44蟺脳10鈭�7I=10A

03

Find the locations of magnetic field

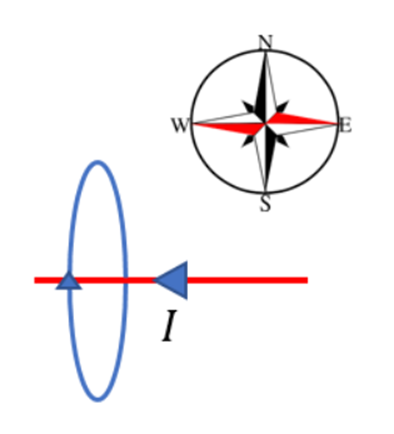

We know that earth鈥檚 horizontal field points northwards. Therefore, at all points directly above the wire the field of the wire would point northward as shown in the figure

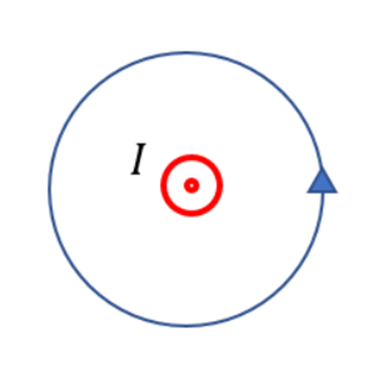

Now, the wire is vertical with the current going upward, at all points directly east of the wire, its field would point northward as shown in the figure
