Chapter 9: Q5MCQ (page 230)

Two children are balanced on opposite sides of a seesaw. If one child leans inward toward the pivot point, her side will

(a) rise.

(b) fall.

(c) neither rise nor fall.

Short Answer

Expert verified

The correct option is (a).

Step by step solution

01

Concepts

The torque equals the product of the force and the perpendicular distance of the force from the pivot point. When the force comes closer to the pivot point, the magnitude of the torque decreases.

02

Explanation

When the seesaw is at equilibrium, the net torque on it is zero, i.e., the torque due to the children on both sides of the seesaw creates the same torque at the pivot point.

If one child leans inward to the pivot point, her distance from the pivot point decreases. So, the torque produced by that child decreases.

Therefore, the seesaw rises in her side.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

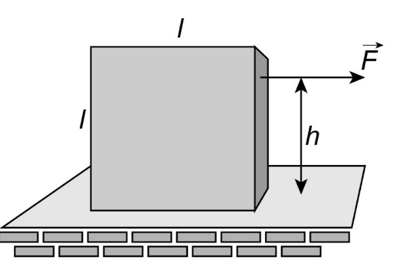

Question:A cube of side lrests on a rough floor. It is subjected to a steady horizontal pull F, exerted a distance h above the floor as shown in Fig. 9鈥�79. As F is increased, the block will either begin to slide, or begin to tip over. Determine the coefficient of static friction\({\mu _{\rm{s}}}\)so that (a) the block begins to slide rather than tip; (b) the block begins to tip. [Hint: Where will 鈥樷�檛he normal force on the block act if it tips?]

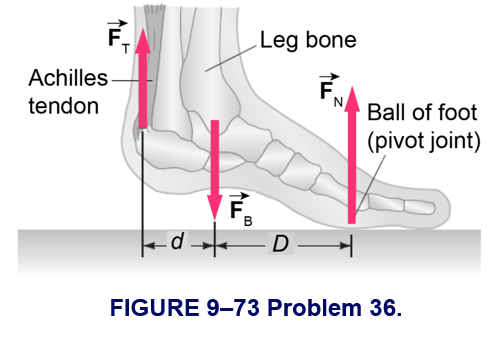

(II) The Achilles tendon is attached to the rear of the foot as shown in Fig. 9鈥�73. When a person elevates himself just barely off the floor on the 鈥渂all of one foot,鈥� estimate the tension\({F_{\bf{T}}}\) in the Achilles tend on (pulling upward), and the (downward) force\({F_{\rm{B}}}\) exerted by the lower leg bone on the foot. Assume the person has a mass of 72 kg and Dis twice as long as d.

(II) How much pressure is needed to compress the volume of an iron block by 0.10%? Express your answer in \({\bf{N/}}{{\bf{m}}^{\bf{2}}}\), and compare it to atmospheric pressure \(\left( {{\bf{1}}{\bf{.0 \times 1}}{{\bf{0}}^{\bf{5}}}\;{\bf{N/}}{{\bf{m}}^{\bf{2}}}} \right)\).

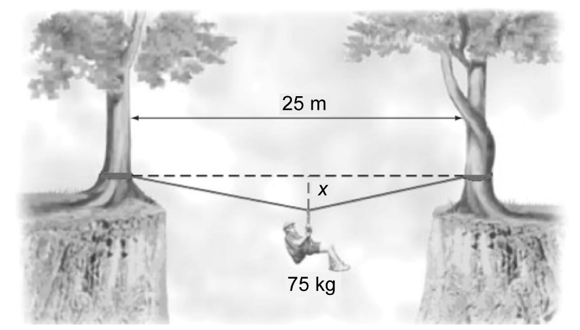

In a mountain-climbing technique called the 鈥淭yrolean traverse,鈥� a rope is anchored on both ends (to rocks or strong trees) across a deep chasm, and then a climber traverses the rope while attached by a sling as in Fig. 9鈥�91. This technique generates tremendous forces in the rope and anchors, so a basic understanding of physics is crucial for safety. A typical climbing rope can undergo a tension force of perhaps 29 kN before breaking, and a 鈥渟afety factor鈥� of 10 is usually recommended. The length of rope used in the Tyrolean traverse must allow for some 鈥渟ag鈥� to remain in the recommended safety range. Consider a 75-kg climber at the center of a Tyrolean traverse, spanning a 25-m chasm. (a) To be within its recommended safety range, what minimum distance x must the rope sag? (b) If the Tyrolean traverse is set up incorrectly so that the rope sags by only one-fourth the distance found in (a), determine the tension in the rope. Ignore stretching of the rope. Will the rope break?

Place yourself facing the edge of an open door. Position your feet astride the door with your nose and abdomen touching the door鈥檚 edge. Try to rise on your tiptoes. Why can鈥檛 this be done?
