The tires of a car make 75 revolutions as the car reduces its speed uniformly from 95 km/h to 55 km/h. The tires have a diameter of 0.80 m. (a) What was the angular acceleration of the tires? If the car continues to decelerate at this rate, (b) how much more time is required for it to stop, and (c) how far does it go?

A car speedometer that is supposed to read the linear speed of the car uses a device that actually measures the angular speed of the tires. If larger-diameter tires are mounted on the car instead, how will that affect the speedometer reading? The speedometer

(a) will still read the speed accurately.

(b) will read low.

(c) will read high

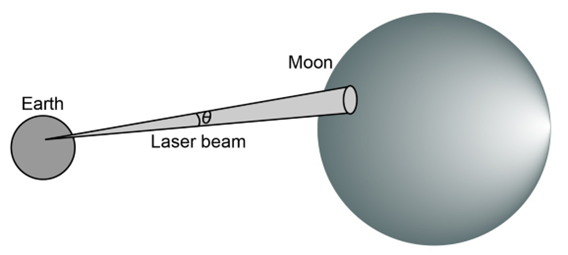

A laser beam is directed at the Moon, 380,000 km from Earth. The beam diverges at an angle \({\bf{\theta }}\) (Fig. 8–40) of \({\bf{1}}{\bf{.4 \times 1}}{{\bf{0}}^{{\bf{ - 5}}}}\;{\bf{rad}}\). What diameter spot will it make on the Moon?

FIGURE 8-40 Problem 3.

Can a small force ever exert a greater torque than a larger force? Explain.

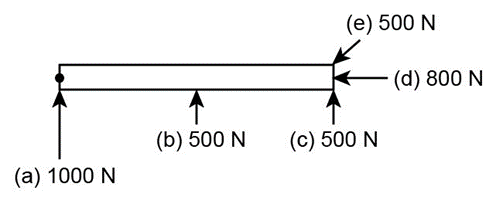

The solid dot shown in Fig. 8–36 is a pivot point. The board can rotate about the pivot. Which force shown exerts the largest magnitude torque on the board?

FIGURE 8-36MisConceptual Question 4.

Why is it more difficult to do a sit-up with your hands behind your head than when your arms are stretched out in front of you? A diagram may help you to answer this.

The platter of the hard drive of a computer rotates at 7200 rpm (rpm = revolutions per minute = rev/min). (a) What is the angular velocity \(\left( {{{{\bf{rad}}} \mathord{\left/{\vphantom {{{\bf{rad}}} {\bf{s}}}} \right.} {\bf{s}}}} \right)\) of the platter? (b) If the reading head of the drive is located 3.00 cm from the rotation axis, what is the linear speed of the point on the platter just below it? (c) If a single bit requires \({\bf{0}}{\bf{.50}}\;{\bf{\mu m}}\) of length along the direction of motion, how many bits per second can the writing head write when it is 3.00 cm from the axis?

Two spheres have the same radius and equal mass. One sphere is solid, and the other is hollow and made of a denser material. Which one has the bigger moment of inertia about an axis through its center?

(a) The solid one.

(b) The hollow one.

(c) Both the same.

A child rolls a ball on a level floor 3.5 m to another child. If the ball makes 12.0 revolutions, what is its diameter?

Two wheels having the same radius and mass rotate at the same angular velocity (Fig. 8–38). One wheel is made with spokes so nearly all the mass is at the rim. The other is a solid disk. How do their rotational kinetic energies compare?

(a) They are nearly the same.

(b) The wheel with spokes has about twice the KE.

(c) The wheel with spokes has higher KE, but not twice as high.

(d) The solid wheel has about twice the KE.

(e) The solid wheel has higher KE, but not twice as high.

FIGURE 8-38

MisConceptual Question 7.
