Why do tightrope walkers (Fig. 8–34) carry a long, narrow rod?

FIGURE 8-34 Question 13.

Short Answer

Expert verified

The long rod helps in maintaining balance while walking over the rope.

Step by step solution

01

Meaning of torque

The term "torque" may be described as the twisting force that causes revolution in a body.

Its value relies on the applied force's position, direction, and significance. It is considered a movement force.

02

Moment of inertia of a long rod

Let\(M\)be the mass of the rod and\(L\)be its length.

The expression for the moment of inertia of the long rod is given as:

\(I = \frac{1}{{12}}M{L^2}\) … (i)

The expression for the angular acceleration is given as:

\(\alpha = \frac{\tau }{I}\)

Substitute the value of equation (i) in the above equation.

\(\begin{aligned}{c}\alpha = \frac{\tau }{{\left( {\frac{1}{2}M{L^2}} \right)}}\\\alpha = \frac{{12\tau }}{{M{L^2}}}\end{aligned}\)

From the above-mentioned equation, it is clear that for a given value of torque, the angular acceleration produced is inversely related to the mass of the rod and the square of its length.

The longer the rod, the lesser will be the angular acceleration produced. When a tightrope walker walks over a tight rope, the gravitational force exerts a torque on her/his body, which tends to rotate her body.

If the angular acceleration is large, then she/he would lose balance easily. By holding the long rod, she/he increases the moment of inertia and thus reduces the angular acceleration.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

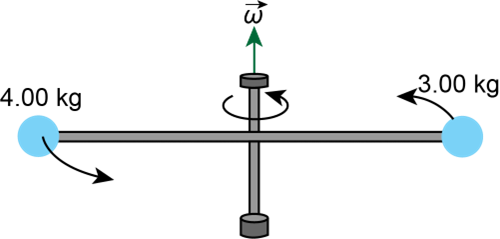

Question: (II) A uniform horizontal rod of mass M and length l rotates with angular velocity \(\omega \) about a vertical axis through its center. Attached to each end of the rod is a small mass m. Determine the angular momentum of the system about the axis.

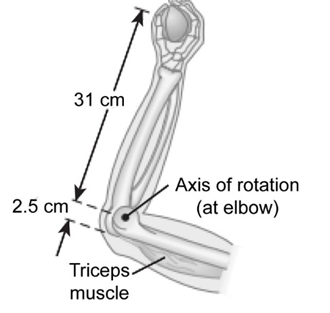

Assume that a 1.00-kg ball is thrown solely by the action of the forearm, which rotates about the elbow joint under the action of the triceps muscle, as shown in Fig. 8–46. The ball is accelerated uniformly from rest to 8.5 m/s in 0.38 s, at which point it is released. Calculate (a) the angular acceleration of the arm and (b) the force required for the triceps muscle. Assume that the forearm has a mass of 3.7 kg, and it rotates like a uniform rod about an axis at its end.

FIGURE 8-46

Problems 35 and 36

A dad pushes a small hand-driven merry-go-round tangentially and is able to accelerate it from rest to a frequency of 15 rpm in 10.0 s. Assume that the merry-go-round is a uniform disk of radius 2.5 m and has a mass of 560 kg, and two children (each with a mass of 25 kg) sit opposite each other on the edges. Calculate the torque required to produce the acceleration, neglecting the frictional torque. What force is required at the edge?

(II) A rotating uniform cylindrical platform of mass 220 kg and radius 5.5 m slows down from to rest in 16 s when the driving motor is disconnected. Estimate the power output of the motor (hp) required to maintain a steady speed of\({\bf{3}}{\bf{.8 }}rev/s\).

A uniform rod of mass M and length l can pivot freely (i.e., we ignore friction) about a hinge attached to a wall, as in Fig. 8–63. The rod is held horizontally and then released. At the moment of release, determine (a) the angular acceleration of the rod, and (b) the linear acceleration of the tip of the rod. Assume that the force of gravity acts at the center of mass of the rod, as shown. [Hint: See Fig. 8–20g.]
