A merry-go-round with a moment of inertia equal to \({\bf{1260}}\;{\bf{kg}} \cdot {{\bf{m}}{\bf{2}}}\) and a radius of 2.5 m rotates with negligible friction at \({\bf{1}}{\bf{.70}}\;{{{\bf{rad}}} \mathord{\left/ {\vphantom {{{\bf{rad}}} {\bf{s}}}} \right. \\{\bf{s}}}\). A child initially standing still next to the merry-go-round jumps onto the edge of the platform straight toward the axis of rotation, causing the platform to slow to \({\bf{1}}{\bf{.35}}\;{{{\bf{rad}}} \mathord{\left/{\vphantom {{{\bf{rad}}} {\bf{s}}}} \right.

\\{\bf{s}}}\). What is her mass?

Short Answer

Expert verified

The mass of the child is \({\rm{52}}\;{\rm{kg}}\).

Step by step solution

01

Determination of moment of inertia of the child

The moment of inertia of the child can be calculated by multiplying the child's mass with the square of the child's distance from the center of a circle.

02

Given information

The moment of inertia of the merry-go-round is\({I_1} = 1260\;{\rm{kg}} \cdot {{\rm{m}}^{\rm{2}}}\).

The radius of the merry-go-round is\(R = 2.5\;{\rm{m}}\).

The initial angular velocity of the system is\({\omega _1} = 1.70\;{{{\rm{rad}}} \mathord{\left/

{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.

\\{\rm{s}}}\).

The final angular velocity of the system is\({\omega _2} = 1.35\;{{{\rm{rad}}} \mathord{\left/

{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.

\\{\rm{s}}}\).

03

Evaluation of the moment of inertia of the child

Let\({I_2}\)be the moment of inertia of the child.

Apply the law of conservation of angular momentum to calculate the moment of inertia of the child.

\(\begin{aligned}{c}{L_{\rm{i}}} = {L_{\rm{f}}}\\{I_1}{\omega _1} = \left( {{I_1} + {I_2}} \right){\omega _2}\\{I_1}\frac{{{\omega _1}}}{{{\omega _2}}} = {l_1} + {I_2}\\{I_2} = {I_1}\left( {\frac{{{\omega _1}}}{{{\omega _2}}} - 1} \right)\end{aligned}\)

Substitute the values in the above expression.

\(\begin{aligned}{l}{I_2} = \left( {1260\;{\rm{kg}} \cdot {{\rm{m}}^{\rm{2}}}} \right)\left[ {\frac{{\left( {1.70\;{{{\rm{rad}}} \mathord{\left/

{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.

\\{\rm{s}}}} \right)}}{{\left( {1.35\;{{{\rm{rad}}} \mathord{\left/

{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.

\\{\rm{s}}}} \right)}} - 1} \right]\\{I_2} = 326.6\;{\rm{kg}} \cdot {{\rm{m}}^{\rm{2}}}\end{aligned}\)

04

Evaluation of the mass of the child

The mass of the child can be calculated as:

\(\begin{aligned}{c}{I_2} = m{R^2}\\m = \frac{{{I_2}}}{{{R^2}}}\\m = \frac{{\left( {326.6\;{\rm{kg}} \cdot {{\rm{m}}^{\rm{2}}}} \right)}}{{{{\left( {2.5\;{\rm{m}}} \right)}^2}}}\\m = 52.2\;{\rm{kg}} \approx {\rm{52}}\;{\rm{kg}}\end{aligned}\)

Thus, the mass of the child is \({\rm{52}}\;{\rm{kg}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In traveling to the Moon, astronauts aboard the Apollo spacecraft put the spacecraft into a slow rotation to distribute the Sun’s energy evenly (so one side would not become too hot). At the start of their trip, they accelerated from no rotation to 1.0 revolution every minute during a 12-min time interval. Think of the spacecraft as a cylinder with a diameter of 8.5 m rotating about its cylindrical axis. Determine (a) the angular acceleration, and (b) the radial and tangential components of the linear acceleration of a point on the skin of the ship 6.0 min after it started this acceleration.

Can the mass of a rigid object be considered concentrated at its CM for rotational motion? Explain.

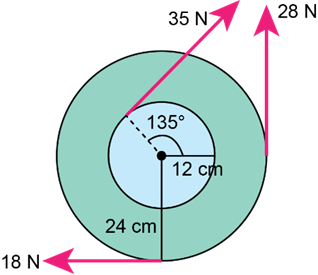

The solid dot shown in Fig. 8–36 is a pivot point. The board can rotate about the pivot. Which force shown exerts the largest magnitude torque on the board?

FIGURE 8-36MisConceptual Question 4.

A hammer thrower accelerates the hammer\(\left( {{\bf{mass}} = {\bf{7}}{\bf{.30 kg}}} \right)\)from rest within four full turns (revolutions) and releases it at a speed of\({\bf{26}}{\bf{.5 m/s}}\).Assuming a uniform rate of increase in angular velocity and a horizontal circular path of radius 1.20 m, calculate (a) the angular acceleration, (b) the (linear) tangential acceleration, (c) the centripetal acceleration just before release, (d) the net force being exerted on the hammer by the athlete just before release, and (e) the angle of this force with respect to the radius of the circular motion. Ignore gravity.

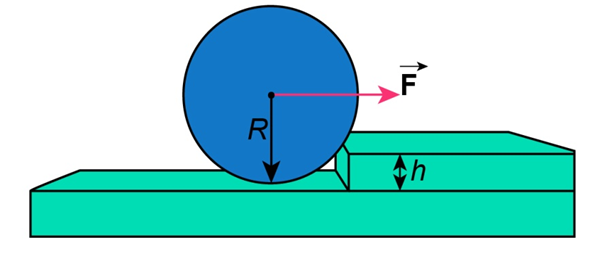

A wheel of mass M has radius R. It is standing vertically on the floor, and we want to exert a horizontal force F at its axle so that it will climb a step against which it rests (Fig. 8–60). The step has height h, where h < R. What minimum force F is needed?
