A point charge exerts an electric force on another point charge in the vicinity. It could be attractive as well as repulsive depending upon the nature of the two charges.

The expression for the electric force is given as:

\(F = k\frac{{{Q_1}{Q_2}}}{{{r^2}}}\) 鈥� (i)

Here, k is the Coulomb鈥檚 constant,\({Q_1},\;{Q_2}\)are the charges and r is the separation between the charges.

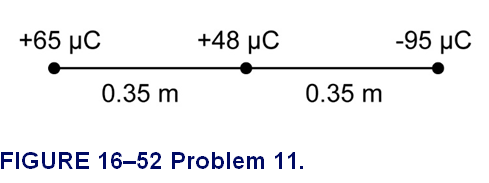

The charge of particle 1 is \({q_1} = 65\;{\rm{\mu C}}\).

The charge of particle 2 is \({q_2} = 48\;{\rm{\mu C}}\).

The charge of particle 3 is \({q_3} = 95\;{\rm{\mu C}}\).

The separation distance between 1 and 2 is, \(r = 0.35\;{\rm{m}}\).

The total distance between 1 and 3 is, \({r_0} = 0.7\;{\rm{m}}\).

From equation (i), the expression to find the force on charge one is given as:

\({F_1} = \frac{{k{q_1}{q_2}}}{{{r^2}}} + \frac{{k{q_1}{q_3}}}{{{r_0}^2}}\)

Substitute the values in the above expression.

\(\begin{aligned}{l}{F_1} = - \left( {8.988 \times {{10}^9}\;{\rm{N}} \cdot {{\rm{m}}^{\rm{2}}}{\rm{/}}{{\rm{C}}^{\rm{2}}}} \right)\left( {\frac{{\left( {65 \times {{10}^{ - 6}}\;{\rm{C}}} \right)\left( {48 \times {{10}^{ - 6}}\;{\rm{C}}} \right)}}{{{{\left( {0.35\;{\rm{m}}} \right)}^2}}} + \frac{{\left( {65 \times {{10}^{ - 6}}\;{\rm{C}}} \right)\left( {95 \times {{10}^{ - 6}}\;{\rm{C}}} \right)}}{{{{\left( {0.7\;{\rm{m}}} \right)}^2}}}} \right)\\{F_1} = - 115.6\;{\rm{N}}\end{aligned}\)

Thus, the net force on charge 1 is \( - 115.6\;{\rm{N}}\) towards the left.

From equation (i), the expression to find the force on charge two is given as:

\({F_2} = \frac{{k{q_1}{q_2}}}{{{r^2}}} + \frac{{k{q_2}{q_3}}}{{{r^2}}}\)

Substitute the values in the above expression.

\(\begin{aligned}{l}{F_2} = \left( {8.988 \times {{10}^9}\;{\rm{N}} \cdot {{\rm{m}}^{\rm{2}}}{\rm{/}}{{\rm{C}}^{\rm{2}}}} \right)\left( {\frac{{\left( {65 \times {{10}^{ - 6}}\;{\rm{C}}} \right)\left( {48 \times {{10}^{ - 6}}\;{\rm{C}}} \right)}}{{{{\left( {0.35\;{\rm{m}}} \right)}^2}}} + \frac{{\left( {48 \times {{10}^{ - 6}}\;{\rm{C}}} \right)\left( {95 \times {{10}^{ - 6}}\;{\rm{C}}} \right)}}{{{{\left( {0.35\;{\rm{m}}} \right)}^2}}}} \right)\\{F_2} = 563.4\;{\rm{N}}\end{aligned}\)

Thus, the net force on charge 2 is \(563.4\;{\rm{N}}\) towards the right.

From equation (i), the expression to find the force on charge three is given as:

\({F_3} = \frac{{k{q_1}{q_3}}}{{{r_0}^2}} + \frac{{k{q_2}{q_3}}}{{{r^2}}}\)

Substitute the values in the above expression.

\(\begin{aligned}{l}{F_3} = - \left( {8.988 \times {{10}^9}\;{\rm{N}} \cdot {{\rm{m}}^{\rm{2}}}{\rm{/}}{{\rm{C}}^{\rm{2}}}} \right)\left( {\frac{{\left( {65 \times {{10}^{ - 6}}\;{\rm{C}}} \right)\left( {95 \times {{10}^{ - 6}}\;{\rm{C}}} \right)}}{{{{\left( {0.35\;{\rm{m}}} \right)}^2}}} + \frac{{\left( {48 \times {{10}^{ - 6}}\;{\rm{C}}} \right)\left( {95 \times {{10}^{ - 6}}\;{\rm{C}}} \right)}}{{{{\left( {0.35\;{\rm{m}}} \right)}^2}}}} \right)\\{F_3} = - 447.8\;{\rm{N}}\end{aligned}\)

Thus, the net force on charge 3 is \( - 447.8\;{\rm{N}}\) towards the left.
