Q74 P Refer to figure 6.86. Calculate ... [FREE SOLUTION]

Chapter 6: Q74 P (page 282)

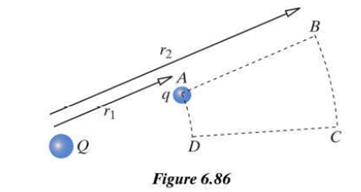

Refer to figure 6.86. Calculate the change in electric energy along the two different paths in moving charge away from charge $Q$ from A to B along a radial path, then to C along a circle centered on , then to D along a radial path. Also calculate the change in energy in going directly from A to D along a circle centered at $Q$ . Specifically. What are $U_{B} - U_{A}, U_{C} - U_{B}, U_{D} - U_{C}$ and their sum? What is $U_{D} - U_{A}$ ? Also, calculate the round-trip difference in the electrical energy when moving charge along the path from A to B to C to D to A

Short Answer

Expert verified

The electrical energy change along the path ABCD is 0, and the change in electrical energy for the direct path AD is also $0$ For the one round trip ABCDA, the difference in electrical energy is also $0$

Step by step solution

Given Data

Two charges q and Q are given.

The radii of two circular paths AD and BC are $r_{1} and r_{2}$ respectively.

Concept

The total work done in carrying a positive charge q from infinity to a point inside an electric field due to another charge positive charge $Q$ is known as the potential energy of the system. The difference in potential energy between two points gives the work done in carrying the charge q between these points.

The potential energy at a point is mathematically given as:

$U = \frac{1}{4 {蟺蔚}_{o}} \frac{qQ}{r}$

Calculation

The potential energy at points A, B, C, and D, for the system of charges $Q a n d q$ are:

role="math" localid="1668506217310" $U_{A} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{1}} U_{B} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} U_{C} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} U_{D} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{1}}$

Now, change in electrical energy along AB is given as:

$U_{B} - U_{A} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} - \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{1}} = \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{2}} - \frac{1}{r_{1}})$

The change in electrical energy along BC is given as:

$U_{C} - U_{B} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} - \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} = \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{2}} - \frac{1}{r_{2}}) = 0$

The change in electrical energy along CD is given as:

$U_{D} - U_{C} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{1}} - \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} = \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{1}} - \frac{1}{r_{2}})$

The change in electrical energy along AD is given as:

$U_{D} - U_{A} = \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} - \frac{1}{4 蟺蔚_{o}} \frac{Q q}{r_{2}} = \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{2}} - \frac{1}{r_{2}}) = 0$

The total change in electrical energy along the path ABCD is given as:

$(U_{B} - U_{A}) + (U_{C} - U_{B}) + (U_{D} - U_{C}) = \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{2}} - \frac{1}{r_{1}}) + 0 + \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{1}} - \frac{1}{r_{2}}) = 0$

The total change in electrical energy along the complete round trip ABCDA will be:

$((U_{B} - U_{A}) + (U_{C} - U_{B}) + (U_{D} - U_{C}) + (U_{A} - U_{D})) = \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{2}} - \frac{1}{r_{1}}) + 0 + \frac{Q q}{4 蟺蔚_{o}} (\frac{1}{r_{1}} - \frac{1}{r_{2}}) - 0 = 0$

Conclusion

The change in electrical energy along the path ABCD is 0, and the change in electrical energy for the path AD is also $0$ . The change in electrical energy for the one round trip ABCDA is $0$
