Chapter 1: Q13CP (page 23)

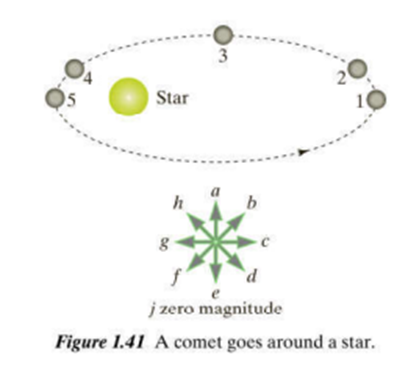

comet travels in an elliptical path around a star, in the direction shown in Figure 1.41. Which arrow best indicates the direction of the comet鈥檚 instantaneous velocity vector at each of the numbered locations in the orbit?

Short Answer

Expert verified

The direction of instantaneous velocity:

Location1: Arrow a

Location2: Arrow h

Location3: Arrow g

Location4: Arrow f

Location5: Arrow e

Step by step solution

01

Definition of Direction of instantaneous velocity

At any moment in time, the direction of instantaneous velocity determines the direction of motion of a particle.It is always tangent to the path of the object.

02

Direction of instantaneous velocity

Going by the definition, the arrows that match the direction of motion are:

Location 1 : In this case, the direction of motion is towards the north. The arrow which indicates the direction of motion properly is Arrow 鈥榓鈥�.

Location 2 : In this case, the direction of motion is in the northeast direction. The arrow which indicates the direction of motion properly is Arrow 鈥榟鈥�.

Location 3 : In this case, the direction of motion is towards the west. The arrow which indicates the direction of motion properly is Arrow 鈥榞鈥�.
