A small metal sphere of radius r initially has a charge q0 . Then a long copper wire is connected from this small sphere to a distant, large, uncharged metal sphere of radius R. Calculate the final charge q on the small sphere and the final charge on the large sphere. You may neglect the small amount of charge on the wire. What other approximations did you make? (Think about potential鈥)

Short Answer

Expert verified

The final charge on small and large sphere is q01+Rr and q01+rR.

Step by step solution

01

Identification of given data

The initial charge of small metal sphere is q0 .

The radius of small metal sphere is r .

The final charge of small metal sphere is q

The final charge of large metal sphere is Q

The radius of the large metal sphere is R .

02

Conceptual Explanation

The potential of each sphere become equal after joining both spheres by metal wire.

03

Determination of final charge on small and large sphere

The charge on the small sphere after connection of both spheres is given as: q = (q0- Q) ....................(1)

The final electric potential on small sphere is given as: Vsf=kqr

The final electric potential on large sphere is given as: Vif=kQR

At equilibrium final potential of small and large sphere becomes equal, so Vsf=Vif

Substitute all the values in the above equation.

kqr=kQRqr=QRq0-Qr=QRQ=q01+rR

Substitute this value in equation (1) to find final charge on small sphere.

q=q0-q01+rRq=q01+Rr

Therefore, the final charge on small and large sphere is q01+Rr and q01+rR.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A proton moves from location A to location B in a region of uniform electric field, as shown in Figure 16.5. (a) If the magnitude of the electric field inside the capacitor in Figure 16.5 is 3500 N/C, and the distance between location A and location B is 3 mm, what is the change in electric potential energy of the system (proton + plates) during this process? (b) What is the change in the kinetic energy of the proton during this process? (c) If the proton is initially at rest, what is its speed when it reaches location B? (d) How do the answers to (a) and (b) change if the proton is replaced by an electron?

A capacitor with a gap of 2 mm has a potential difference from one plate to the other of 30 V. What is the magnitude of the electric field between the plates?

Two very large disks of radius Rare carrying uniformly distributed charges QAand QB. The plates are parallel and 0.1mmapart, as shown in Figure 16.70. The potential difference between the plates isVB-VA=-10V. (a) What is the direction of the electric field between the disks? (b) Invent values of QA, QBand Rthat would make VB-VA=-10V.

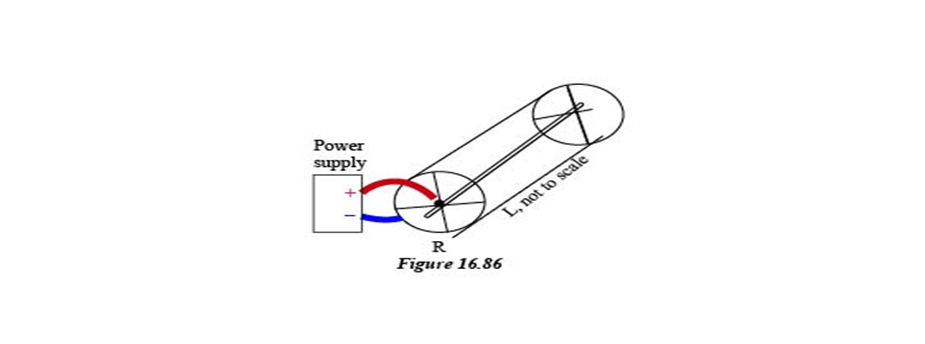

long thin metal wire with radius rand lengthLis surrounded by a concentric long narrow metal tube of radius R, whereR>>L, as shown in Figure 16.86. Insulating spokes hold the wire in the center of the tube and prevent electrical contact between the wire and the tube. A variable power supply is connected to the device as shown. There is a charge+Qon the inner wire and a chargeQon the outer tube. As we will see when we study Gauss鈥檚 law in a later chapter, the electric field inside the tube is contributed solely by the wire, and the field outside the wire is the same as though the wire were infinitely thin; the outer tube does not contribute as long as we are not near the ends of the tube. (a) In terms of the chargeQ, lengthL, inner radiusr, and outer radiusR , what is the potential differenceVtubeVwire between the inner wire and the outer tube? Explain, and include checks on your answer. (b) The power-supply voltage is slowly increased until you see a glow in the air very near the inner wire. Calculate this power-supply voltage (give a numerical value), and explain your calculation. The lengthL=80鈥塩尘 , the inner radiusr=0.7鈥尘尘, and the outer radiusR=3鈥塩尘. This device is called a 鈥淕eiger鈥揗眉ller tube鈥 and was one of the first electronic particle detectors. The voltage is set just below the threshold for making the air glow near the wire. A charged particle that passes near the center wire can trigger breakdown in the air, leading to a large current that can be easily measured.
