In a particular region there is a uniform electric field of<-760,380,0>V/m. Location A is <0.2,0.1,0>m, location B is <0.7,0.1,0>, and location C is <0.7,-0.4,0>m. (a) What is the change in the potential along a path from B to A? (b) What is the change in the potential along a path from A to C? (c) An alpha particle (two protons and two neutrons) moves from A to C. What is the change in potential energy of the system (alpha + source charges)?

Short Answer

Expert verified

(c)The change in potential energy of the system is -1.824×10-16J.

Step by step solution

01

Given information

The electric field vectoris, E→=-760i^+380j^+0k^V/m.

The location vector of A is, A→=0.2i^+0.1j^+0k^m.

The location vector of B is, B→=0.7i^+0.1j^+0k^m.

The location vector of C is, C→=0.7i^-0.4j^+0k^m.

02

Change in Potential

A charged particle moving through a uniform electric field causes the change in the electric potential of the particle.

The change in the electric potential of a charged particle relies upon the magnitude as well as the direction of the electric field and the travel distance of the particle.

03

Step 3(c): The change in potential energy of the system

The electric charge of an alpha particle having two protons and two neutrons is +2e.

The formula for the change in potential energy of the system having one alpha charge and source charges (proton and electron) is given by,

ΔUSystem=ΔUAlpha+ΔUProton+ΔUElectronΔUSystem=+2e·ΔVAC++e·ΔVAC+-e·ΔVACΔUSystem=2e·ΔVAC+e·ΔVAC-e·ΔVACΔUSystem=2e·ΔVAC

Putting the values,

ΔUSystem=21.6×10-19C-570V×1J1C·VΔUSystem=-1.824×10-16J

Hence, the change in potential energy of the system (alpha + source charges) is -1.824×10-16J.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

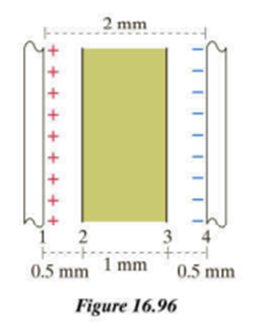

An isolated large plate capacitor (not connected to anything) originally has a potential difference of 1000 V with an air gap of 2 mm. Then a plastic slab 1 mm thick, with dielectric constant 5, is inserted in the middle of the air gap as shown in figure 16.96. Calculate the following potential differences and explain your work.

V1-V2=?V2-V3=?V3-V4=?V1-V4=?

You move from location i at ⟨2,7,5⟩ mto locationf at ⟨5,6,12⟩ m. All along this path there is a nearly uniform electric field of ⟨1000,200,−510⟩ N/C. Calculate Vf−Vi, including sign and units.

For each of the following statements, say whether it is true or false and explain why it is true or false. Be complete in your explanation, but be brief. Pay particular attention to the distinction between potential V and potential difference ∆V. (a) The electric potential inside a metal in equilibrium is always zero. (b) If there is a constant large positive potential throughout a region, the electric field in that region is large. (c) If you get close enough to a negative point charge, the potential is negative, no matter what other charges are around. (d) Near a point charge, the potential difference between two points a distance L apart is −E³¢. (e) In a region where the electric field is varying, the potential difference between two points a distance L apart is -(Ef-Ei)L.

If throughout a particular region of space the potential can be expressed as V=4xz+2y-5z, what are the vector components of the electric field at location (x,y,z)?

If the electric field exceeds about 3×106 N/C in air, a spark occurs. Approximately, what is the absolute value of the maximum possible potential difference between the plates of a capacitor whose gap is 3 mm, without causing a spark in the air between them?
