Chapter 14: Q49P (page 583)

A neutral copper block is polarized as shown in Figure 14.90, due to an electric field made by external charges (not shown). Which arrow (a鈥搄) in Figure 14.90 best indicates the direction of the net electric field at location B, which is inside the copper block ?

Short Answer

Expert verified

The arrow j best indicates the direction of the net electric field at location B, which is inside the copper block

Step by step solution

01

Significance of the electric field in the conductor

The electric field is referring to a region that is beneficial for a charged particle to exert force on another charged particle.

Also,the magnitude of the electric field is zero inside a conductor but it has some value on the surface of the conductor.

The concept of the electric field gives the direction of the net electric field at location B.

02

Determination of the direction of the net electric field

The other arrows apart from j are the incorrect representation of the direction as they are directed in the other direction with some value of magnitude. But, the magnitude of the electric field is zero inside a conductor.

When a particular conductor is placed inside an electric field, the net charges mainly lie on the conductor鈥檚 surface and thus, no electric field remains inside a conductor. However, as point B lies inside the copper block then the net electric field at point B is mainly zero and also the direction of the net electric field at point B is also zero.

Thus, the arrow j best indicates the direction of the net electric field at location B, which is inside the copper block.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

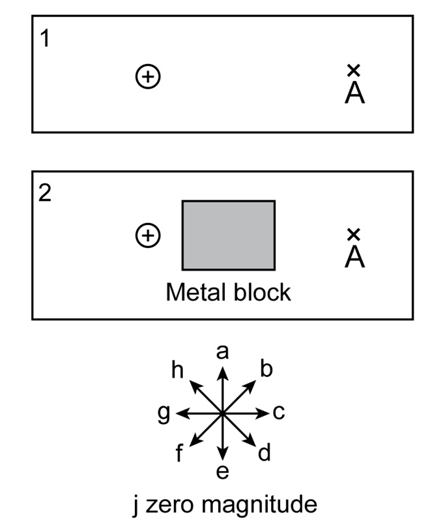

(a)The positively charged particle shown in diagram 1 in Figure 14.94 creates an electric field \({{\bf{\vec E}}_{\bf{p}}}\) at location A. Which of the arrows (a鈥�j) in Figure 14.94 best indicates the direction of \({{\bf{\vec E}}_{\bf{p}}}\) at location A?
