Graph the magnitude of the full expression for the field E of a rod along the midplane vs. r. Does Efall off monotonically(with distance)?

Short Answer

Expert verified

The plot of Evs r is

Efalls off monotonically with distance.

Step by step solution

01

Given data

A uniformly charged rod of length with an electric field is being measured at a distancer from it along the midplane.

02

Electric field due to a uniformly charged rod

The electric field due to a rod of lengthLand charge Quniformly distributed at a distancer from it on its mid plane is,

role="math" localid="1668497036664" E=14蟺蔚0Qrr2+(L2)2.....(i)
03

Step 3:Determination of the plot of the electric field

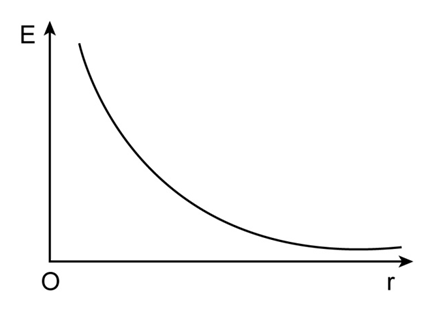

Plot the electric field defined in equation (i) as a function of ras follows:

As can be seen from the plot, the electric field falls of monotonically with distance.
