Chapter 5: Q5Q (page 206)

Question: Tarzan swings from a vine. When he is at the bottom of his swing, as shown in Figure 5.63, which is larger in magnitude: the force by the Earth on Tarzan, the force by the vine (a tension force) on Tarzan, or neither (same magnitude)? Explain how you know this.

Short Answer

Expert verified

Answer

The vine's tension force is greater than the gravitational force.

Step by step solution

01

Definition of the tension force

Tension force is the type of force generated when a load is applied directed away from one or more ends of a material, usually to the cross-section of the material. A tension force is also referred to as a pulling force.

02

Representation of the diagram

As Tarzan swings, the net force acting on him at the bottom of the swing acts in the direction of the rate of change of momentum, which is upward.

Tarzan's veins exert a stronger upward force than their veins exert a downward force. Tarzan must use this upward force to drive himself upward.

The free body diagram for the given situation is shown in below figure,

Here mgis the gravitation force acting on the person, Tis the tension force offered

by vine, and Fcis the centripetal force.

03

Applying the Newton’s second law

Write the net force acting on the Tarzan, according to Newton's second law of motion.

Fc=T-mg

Reorganize the above equation to obtainT.

T=Fc+mg

Thus, the vine's tension force is greater than the gravitational force.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

When a particle with electric charge q moves with speed v in a plane perpendicular to a magnetic field B ,there is a magnetic force at right angles to the motion with magnetic qvB ,and the particle moves n a circle of radius r (see Figure 5.77). This equation for the magnetic force is correct even if the speed is comparable to the speed of light. Show that

p=mv1-(|v鈫�|/c)2=qBreven if is comparable to c.

This result is used to measure relativistic momentum: if the charge q is known, we can determine the momentum of a particle by observing the radius of a circular trajectory in a known magnetic field.

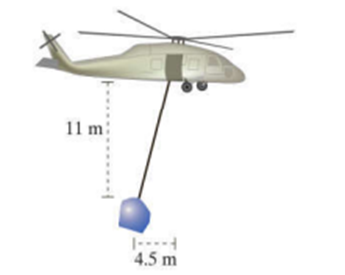

A helicopter flies to the right (in the +xdirection) at a constant speed of 12m/s, parallel to the surface of the ocean. A 900 kgpackage of supplies is suspended below the helicopter by a cable as shown in Figure the package is also traveling to the right in a straight line, at a constant speed of 12 m/s. The pilot is concerned about whether or not the cable, whose breaking strength is listed at 9300 N , is strong enough to support this package under these circumstances.

(a) Choose the package as the system, and draw a free-body diagram.

(b) What is the magnitude of the tension in the cable supporting the package?

(c) Write the force exerted on the package by the cable as a vector.

(d) What is the magnitude of the force exerted by the air on the package?

(e) Write the force on the package by the air as a vector.

(f) Is the cable in danger of breaking?

A child of mass 26kg swings at the end of an elastic cord. At the bottom of the swing, the child's velocity is horizontal, and the speed is 12m/sAt this instant the cord is 4.30mlong.

(a) At this instant, what is the parallel component of the rate of change of the child's momentum?

(b) At this instant, what is the perpendicular component of the rate of change of the child's momentum?

(c) At this instant, what is the net force acting on the child?

(d) What is the magnitude of the force that the elastic cord exerts on the child? (It helps to draw a diagram of the forces.)

(e) The relaxed length of the elastic cord is 4.22m. What is the stiffness of the cord?

An object moving at a constant speed of 23m/sis making a turn with a radius of curvature of 4m(this is the radius of the kissing circle). The object's momentum has a magnitude of . What is the magnitude of the rate of change of the momentum? What is the magnitude of the net force?

You pull with a force of255 N on a rope that is attached to a block of mass 30 kg, and the block slides across the floor at a constant speed of 1.1 m/s. The rope makes an angle 胃=40鈭�with the horizontal. Both the force and the velocity of the block are in the xyplane.

(a) Express the tension force exerted by the rope on the block as a vector.

(b) Express the force exerted by the floor on the block as a vector.
