The given data can be listed below as:

• The mass of the load is$m=800\mathrm{kg}$.
• The diameter of the wires is$d=1.1mm×\left(\frac{{10}^{-3}m}{1m}\right)=1.1×{10}^{-3}m$.
• The value of the young’s modulus of the material is$\mathrm{y}=1.3×{10}^{11}\mathrm{N}/{\mathrm{m}}^2$.

Newton’s second law states that the force exerted on an object is equal to the product of the mass and the acceleration of that object.

Young’s modulus is described as the ratio of the stress to the strain. The stress is the force exerted by an object per unit area, and the strain is described as the elongation in length.

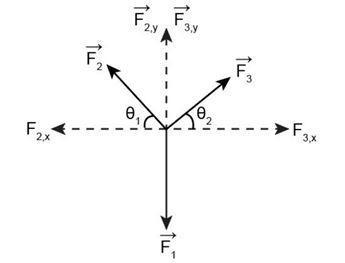

The free-body diagram of the acting forces has been drawn below:

The main forces are $F_1,F_2,F_3$and the component of the main forces acting in the $x$direction is and ${\mathrm{F}}_{3\mathrm{x}},\mathrm{and}\mathrm{y}$direction is ${\mathrm{F}}_{2\mathrm{y}}\mathrm{and}{\mathrm{F}}_{3\mathrm{y}}$.

From Newton’s second law, the equation of the tension force applied in the first wire is expressed as:

$F_1=mg$

Here, $m$is the mass of the load and $g$is the acceleration due to gravity that has the value $9.8m/s^2$.

Substitute $800\mathrm{kg}$for$m$and$9.8m/s^2$for $g$.

$$\begin{gathered} F_1=\left(800kg\right)×\left(9.8m/s^2\right) \\ =7840kg.m/s^2 \\ =7840kg.m/s^2×\frac{1N}{1kg.m/s^2} \\ =7840N \end{gathered}$$

There are two components in the tension force of the second and the third wire are ${\mathrm{F}}_{2\mathrm{y}}\mathrm{and}{\mathrm{F}}_{2\mathrm{x}}\mathrm{and}{\mathrm{F}}_{3\mathrm{x}}\mathrm{and}{\mathrm{F}}_{3\mathrm{y}}$. According to the diagram, the force ${\mathrm{F}}_2\mathrm{and}{\mathrm{F}}_3$makes the angle${\mathrm{θ}}_1=60°\mathrm{and}{\mathrm{θ}}_2=40°$with the $x$axis respectively.

The equation of the change in the momentum with time in the $y$-direction is expressed as:

$$\begin{gathered} \frac{d{\stackrel{→}{p}}_y}{dt}=0 \\ =F_{net.y} \end{gathered}$$

Here, $\frac{d{\stackrel{→}{p}}_y}{dt}$is the change in the momentum and $F_{net.y}$is the net force acting in the $y$-direction.

Here, from the above figure, the summation of the forces $F_1,F_{2y},F_{3y}is0$, then this equation can also be written as:

$$\begin{gathered} F_{2y}+F_{3y}=F_1 \\ {F}_2\cos \left(90-{\mathrm{θ}}_1\right)+F_3\cos \left(90-{\mathrm{θ}}_2\right)=F_1 \end{gathered}$$ …(¾±)

Substituting $60°\mathrm{for}{\mathrm{θ}}_1\mathrm{and}40°\mathrm{for}{\mathrm{θ}}_2$in the above equation.

$0.86F_2+0.64F_3=7840$

The equation of the change in the momentum with time in the x-direction is expressed as:

$$\begin{gathered} \frac{d{\stackrel{→}{p}}_x}{dt}=0 \\ =F_{net.x} \end{gathered}$$

Here, $\frac{d{\stackrel{→}{p}}_y}{dt}$is the change in the momentum and $F_{net.x}$is the net force acting in the $x$-direction

As these two forces $F_{3x}$are in opposite directions, then the summation of these forces is equal to $0$.

$$\begin{gathered} F_{2x}-F_{3x}=0 \\ {F}_2\cos {\mathrm{θ}}_1-F_3\cos {\mathrm{θ}}_2=0 \\ {F}_2=F_3\frac{\cos {\mathrm{θ}}_2}{\cos {\mathrm{θ}}_1} \end{gathered}$$

Substituting $60°\mathrm{for}{\mathrm{θ}}_1\mathrm{and}40°\mathrm{for}{\mathrm{θ}}_2$in the above equation.

$$\begin{gathered} F_2=F_3\frac{\cos 40°}{\cos 60°} \\ {F}_2=1.53F_3 \end{gathered}$$ …(¾±¾±)

Substituting $1.53{\mathrm{F}}_3\mathrm{for}{\mathrm{F}}_2$in the equation (i):

$$\begin{gathered} 0.86F_2+0.64F_3=7840N \\ 0.86\left(1.53F_3\right)+0.64F_3=7840N \\ 1.95F_3=7840N \\ {F}_3=4020N \end{gathered}$$

Substitute $4020\mathrm{N}\mathrm{for}{\mathrm{F}}_3$in the equation (ii).

$$\begin{gathered} {\mathrm{F}}_2=1.5{\mathrm{F}}_3 \\ =1.5×4020\mathrm{N} \\ =6030\mathrm{N} \end{gathered}$$

Thus, the tension in all of the wires is$7840\mathrm{N},6030\mathrm{N}\mathrm{and}4020\mathrm{N}$ respectively.

The equation of stress is expressed as:

$\mathrm{σ}=\frac{F}{A}$

Here, $F$is the force exerted on each wire and $A$is the area of the wire.

The equation of strain is expressed as:

$\mathrm{Î\mu }=\frac{∆l}{I}$

Here, $l$is the original length of the wire and $∆l$is the change in the length of the wire.

The equation of the young’s modulus for a wire is expressed as:

$\begin{array}{l}E=\frac{\mathrm{F}/\mathrm{A}}{∆\mathrm{l}/\mathrm{l}}\\ ∆\mathrm{l}/\mathrm{l}=\frac{\mathrm{F}/\mathrm{A}}{\mathrm{E}}\end{array}$ …(¾±¾±¾±)

Here, $F$is the force exerted on each wire, $A$is the area of the wire, and$∆\mathrm{l}/\mathrm{l}$is the fractional stretch of the wire.

As the diameter of the wire is same, hence, the area of the wires is calculated as:

$$\begin{gathered} A=\mathrm{Ï€}{r}^2 \\ =\mathrm{Ï€}{\left(\frac{d}{2}\right)}^2 \end{gathered}$$

Here, $r$is the radius of the wire and $d$is the diameter of the wire.

Substitute the value in the above equation:

$$\begin{gathered} A=\mathrm{π}{\left(\frac{1.1×{10}^{-3}m}{2}\right)}^2 \\ =0.95×{10}^{-6}{m}^2 \end{gathered}$$

Now, for the first wire, substituting $0.95×{10}^{-6}{\mathrm{m}}^2\mathrm{for}\mathrm{A},7840\mathrm{N}\mathrm{for}\mathrm{F},\mathrm{and}1.3×{10}^{11}\mathrm{N}/{\mathrm{m}}^2\mathrm{for}\mathrm{E}$in the above equation.

$$\begin{gathered} ∆l/l=\frac{7840N/0.95×{10}^{-6}{m}^2}{1.3×{10}^{11}N/m^2} \\ =\frac{7.448×{10}^{-3}N/m^2}{1.3×{10}^{11}N/m^2} \\ =0.063 \end{gathered}$$

Now, for the second wire, substituting localid="1656912078310" $0.95×{10}^{-6}{\mathrm{m}}^2\mathrm{for}\mathrm{A},6030\mathrm{N}\mathrm{for}\mathrm{F}\mathrm{and}1.3×{10}^{11}\mathrm{N}/{\mathrm{m}}^2\mathrm{for}\mathrm{E}$in the above equation.

$$\begin{gathered} ∆l/l=\frac{6030N/0.95×{10}^{-6}{m}^2}{1.3×{10}^{11}N/m^2} \\ =\frac{5.7285×{10}^{-3}N/m^2}{1.3×{10}^{11}N/m^2} \\ =0.048 \end{gathered}$$

Now, for the third wire, substituting $0.95×{10}^{-6}{\mathrm{m}}^2\mathrm{for}\mathrm{A},4020\mathrm{N}\mathrm{for}\mathrm{F}\mathrm{and}1.3×{10}^{11}\mathrm{N}/{\mathrm{m}}^2\mathrm{for}\mathrm{E}$in the above equation.

$$\begin{gathered} ∆\mathrm{l}/\mathrm{l}=\frac{4020\mathrm{N}/0.95×{10}^{-6}{\mathrm{m}}^2}{1.3×{10}^{11}\mathrm{N}/{\mathrm{m}}^2} \\ =\frac{3.819×{10}^{-3}\mathrm{N}/{\mathrm{m}}^2}{1.3×{10}^{11}\mathrm{N}/{\mathrm{m}}^2} \\ =0.032 \end{gathered}$$

Thus, the strain in each wire is$0.063,0.048\mathrm{and}0.032$respectively.
