It is sometimes claimed that friction forces always slow an object down, but this is not true. If you place a box of mass 8kgon a moving horizontal conveyor belt, the friction force of the belt acting on the bottom of the box speeds up the box. At first there is some slipping, until the speed of the belt, which is 5m/s. The coefficient of kinetic friction between box and belt is 0.6. (a) How much time does it take for the box to reach this final speed? (b) What is the distance (relative to the floor) that the box moves before reaching the final speed of5m/s?

Short Answer

Expert verified
  1. the time takes for the box to reach this final speed is2.12s

  2. the distance that the box moves before reaching the final speed of 5m/sis 2.12m.

Step by step solution

01

Identification of the given data

The mass of a box is8kg

The speed of the belt is5m/s

The coefficient of kinetic friction between box and belt is0.6

02

(a) Determination of the time takes for the box to reach this final speed

Coefficient of kinetic friction,

μ=FN …(1)

Where,

F = frictional Force

N = Normal Force

role="math" localid="1657729671494" N=mg=8×9.81=78.48N

Substitute N value in Equation (1) to find F value,

μ=FNF=μN=0.6×78.48=47.08N

To find the time takes for the box to reach this final speed, we need to find acceleration first.

a=Fm=47.088=5.89m/s2

To find Time,

v2=u2+2atv2-u2=2att=v2-u22a

Where,

v=5m/s

u=0

a=5.89m/s2

Substitute these values in above Equation to find t,

role="math" localid="1657730489038" t=v2-u22a=52-02×5.89=2.12s

Hence, the time takes for the box to reach this final speed is 2.12s.

03

(b) Determination of the distance that the box moves before reaching the final speed of 5 m/s

Work done by friction,

12mv2=ffriction×d

d(distance)=mv22×ffriction

Where,

m=8kgV=5m/s

m=8kgV=5m/s

ffriction=47.08N

Substitute these values in the above Equation to find Distance,

d(distance)=mv22×ffriction=8×522×47.08=2.12m

Hence, the distance that the box moves before reaching the final speed of 5m/sis 2.12m

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

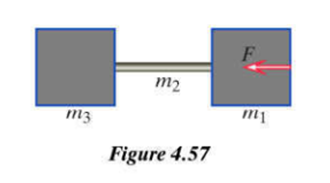

Two blocks of mass m1 and m3 , connected by a rod of mass m2 , are sitting on a low friction surface, and you push to the left on the right block (mass m1 ) with a constant force of magnitude F(Figure 4.57).

(a) What is the accelerationdvxdt of the blocks?

(b) What is the vector force F→net3exerted by the rod on the block of mass m3 ? (|F→net3| is approximately equal to the compression force in the rod near its left end.)What is the vector forceF→net1exerted by the rod on the block of massm1? F→net1is approximately equal to the compression force in the rod near its right end.)

(c) Suppose that instead of pushing on the right block (mass m1 ), you pull to the left on the left block (mass m3) with a constant force of magnitude F . Draw a diagram illustrating this situation. Now what is the vector force exerted by the rod on the block of mass m3?

A 3 kgblock measures5 cm by 10 cm by 20cm. When it slides on a 10cm by 20 cmface, it moves with constant speed when pulled horizontally by a force whose magnitude 3N is. How big a horizontal force must be applied to pull it with constant speed of it slides on a 5 cm by 20 cm face?

For this problem you will need measurements of the position vs. time of a block sliding on a table, starting with some initial velocity, showing down, and coming to rest. If you do not have an appropriate laboratory setup for making these measurements, your instructor will provide you with such data. Analyze these data to determine the coefficient of friction and to see how well they support the assertion that the force of sliding friction is essentially independent of the speed of sliding.

Young’s modulus for aluminum is 6.2×1010N/m2. The density of aluminum is 2.7g/cm3, and the mass of one mole (6.02×1023atoms)is 27g. If we model the interactions of neighbouring aluminum atoms as though they were connected by spring, determine the approximate spring constant of such a spring. Repeat this analysis for lead is: Young’s modulus for Lead 1.6×1010N/m2and the density of lead is 11.4g/cm3, and the mass of one mole is 207g. Make a note of these results, which we will use for various purposes later on. Note that aluminum is a rather stiff material, whereas lead is quite soft.

: A hanging wire made of an alloy of iron with diameter 0.09cm is initially 2.2m long. When a 66kg mass is hung from it, the wire stretches an amount of 1.12cm. A mole of iron has a mass of 56g, and its density is 7.87 g/cm. Based on these experimental measurement, what is Young’s modulus for this alloy iron
