Show thath and angular momentum have the same units.

Short Answer

Expert verified

The unit for angular momentum isJ . SinceN is a dimensionless quantity, both angular momentum andh have same units. Thus, the units ofh is J·s.

Step by step solution

01

Definition of Angular Momentum

Angular momentum, property characterizing the rotary inertia of an object or system of objects in motion about an axis that may or may not pass through the object or system.

02

Show that h and angular momentum have the same units.

Bohr postulated that the angular momentum of electrons in a hydrogen atom is quantized. The translation angular momentum of the electron is an integral multiple ofh.

Mathematically angular momentum can be expressed as

L→=Nh.....(1)

Hereh is12Ï€ times the Planck constanthand Nis the integer.

The angular momentum of a particle of massmmoving in circular orbit of radiusr with velocityvis given by

L→=mvr.....(2)

Here mass is measured in kg, velocity is measured inm/sand radius is measured in meters.

03

Explanation

The units for angular momentum is

L→=kgm/sm=kg·m2/sss=kg·m2/s2·s

As is equivalent to JoulesJ, the unit for angular momentum is J. Since Nis a dimensionless quantity, both angular momentum and hhave same units. Thus, the units ofh is J·s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Two gyroscopes are made exactly alike except that the spinning disk in one is made of low-density aluminum, whereas the disk in the other is made of high-density lead. If they have the same spin angular speeds and the same torque is applied to both, which gyroscope processes faster?

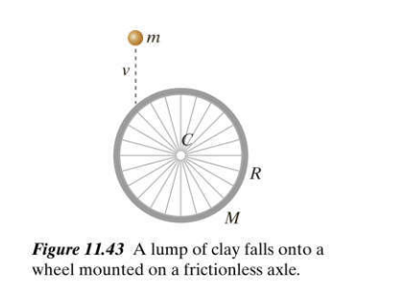

A stationary bicycle wheel of radiusis mounted in the vertical plane on a horizontal low-friction axle (Figur The 11.43).Thewheel has mass,M all concentrated in the rim (the spokes have negligible mass). A lump of clay with mass m falls and sticks to the outer edge of the wheel at the location shown. Just before the impact the clay has a speed v(a) Just before the impact, what is the angular momentum of the combined system of wheel plus clay about the center C (b) Just after the impact, what is the angular momentum of the combined system of wheel plus clay about the centerCin terms of the angular speed of the wheel? (c) Just after the impact, what are the magnitude and direction of the angular velocity of the wheel? (d) Qualitatively, what happens to the linear momentum of the combined system? Why?

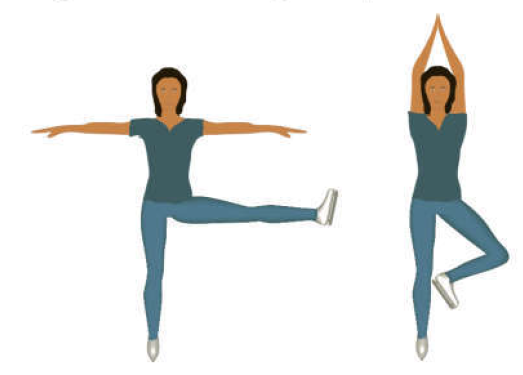

An ice skater whirls with her arms and one leg stuck out as shown on the left in Figure 11.93, making one complete turn inThen she quickly moves her arms up above her head and pulls her leg in as shown at the right in Figure 11.93.
