Chapter 7: Q7.34P (page 336)

Question: A fat wire, radius a, carries a constant current I , uniformly distributed over its cross section. A narrow gap in the wire, of width w << a, forms a parallel-plate capacitor, as shown in Fig. 7.45. Find the magnetic field in the gap, at a distance s < a from the axis.

Short Answer

Expert verified

Answer

The magnetic field in the gap is B=渭0Is2蟺a2.

Step by step solution

01

Write the given data from the question.

The radius of the wire is a .

The constant current is the wire is I.

The gap between the wire is w<<a.

02

  Step 2: Determine the formulas to calculate the magnetic field in the gap.

The expression for the current density is given as follows.

J=IA

Here, A is the area of the wire.

03

Calculate the magnetic field in the gap.

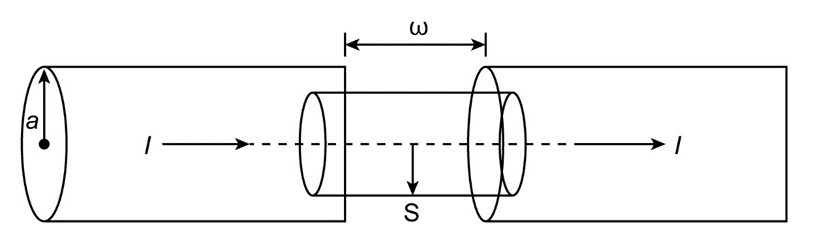

Consider the figure of the wire with the gap.

Calculate the current density.

Substitute蟺a2 for A into equation (1).

Jd=I蟺a2z^

The expression for the magnetic field from the Ampere鈥檚 law is given by,

鈭�B路dl=渭0IdencB2蟺s=渭0IdencB=渭0Idenc2蟺s

Substitute Jd蟺s2 for Idencinto above equation.

B=渭0Jd蟺s22蟺sB=渭0Jds2

SubstituteI蟺a2forJd into above equation.

B=渭0I蟺a2s2B=渭0Is2蟺a2

Hence the magnetic field in the gap isB=渭0Is2蟺a2.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A square loop of wire, of side a, lies midway between two long wires,3aapart, and in the same plane. (Actually, the long wires are sides of a large rectangular loop, but the short ends are so far away that they can be neglected.) A clockwise current Iin the square loop is gradually increasing: role="math" localid="1658127306545" dldt=k(a constant). Find the emf induced in the big loop. Which way will the induced current flow?

If a magnetic dipole levitating above an infinite superconducting plane (Pro b. 7 .45) is free to rotate, what orientation will it adopt, and how high above the surface will it float?

Prove Alfven's theorem: In a perfectly conducting fluid (say, a gas of free electrons), the magnetic flux through any closed loop moving with the fluid is constant in time. (The magnetic field lines are, as it were, "frozen" into the fluid.)

(a) Use Ohm's law, in the form of Eq. 7.2, together with Faraday's law, to prove that if 蟽=鈭�and is J finite, then

鈭�B鈭�t=鈭�脳(v脳B)

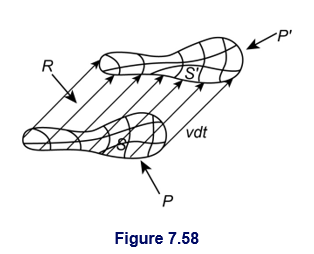

(b) Let S be the surface bounded by the loop (P)at time t , and S'a surface bounded by the loop in its new position (P')at time t+dt (see Fig. 7.58). The change in flux is
