Prove the following uniqueness theorem: A volume V contains a specified free charge distribution, and various pieces of linear dielectric material, with the susceptibility of each one given. If the potential is specified on the boundariesS of V(V=0 at infinity would be suitable) then the potential throughout is uniquely determined.

Short Answer

Expert verified

Here, the uniqueness theorem is proved.

Step by step solution

01

Define function

Consider the two solutions having potentials V1and V2.

Then,

E1=−∇V1 …… (1)

E2=−∇V2 …… (2)

Now, write the expression for electric displacement.

D1=εE1 …… (3)

D2=εE2 …… (4)

Now, defineV3=V2−V1

Then,

E3=E2−E1

D3=D2−D1

02

Determine theorem

Now compute,

∫v∇⋅(V3D3)dτ

By Gauss divergence theorem, then

∫v∇⋅(V3D3)dτ=∫s(V3D3)da

But V3=0ons

Then,

∫v∇⋅(V3D3)dτ=0

Thus,

∫(∇V3)⋅D3dτ+∫V3(∇⋅D3)dτ=0

We know that,

∇⋅D3=∇⋅D2−∇⋅D1

03

Determine theorem

A volumeVcontains a free charge distribution then∇.D3=0

Then,

∫(∇V3)⋅D3dτ=0

We know that,

∇⋅V3=∇⋅V2−∇⋅V1

=−E2+E1=−E3

D3=εE3

Then,

∫−ε(E3)2dτ=0

Here,ε>0

Then,E3=0

−∇V3=0

V3is constant.

Then,V2−V1 is constant

As, V3=0at the surface thenV2−V1=0

Then,V2−V1 is everywhere.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

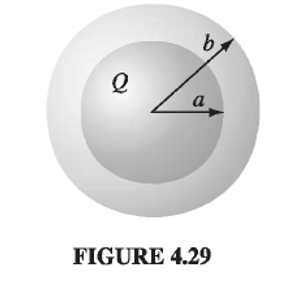

A spherical conductor, of radius a,carries a charge Q(Fig. 4.29). It

is surrounded by linear dielectric material of susceptibilityXeout to radius b.Find the energy of this configuration (Eq. 4.58).

A conducting sphere of radius a, at potential V0, is surrounded by a

thin concentric spherical shell of radius b,over which someone has glued a surface charge

σθ=kcosθ

where K is a constant and is the usual spherical coordinate.

a). Find the potential in each region: (i) r>b, and (ii) a<r<b.

b). Find the induced surface chargeσiθ on the conductor.

c). What is the total charge of this system? Check that your answer is consistent with the behavior of v at large r.

E2→Find the field inside a sphere of linear dielectric material in an otherwise uniform electric field E0→(Ex. 4.7) by the following method of successive approximations: First pretend the field inside is just E0→, and use Eq. 4.30 to write down the resulting polarization P0→. This polarization generates a field of its own, E1→ (Ex. 4.2), which in turn modifies the polarization by an amount P1→. which further changes the field by an amount E2→, and so on. The resulting field is E→0+E→1+E→2+.... . Sum the series, and compare your answer with Eq. 4.49.

When you polarize a neutral dielectric, the charge moves a bit, but the total remains zero. This fact should be reflected in the bound charges σb and ÒÏb· Prove from Eqs. 4.11 and 4.12 that the total bound charge vanishes.

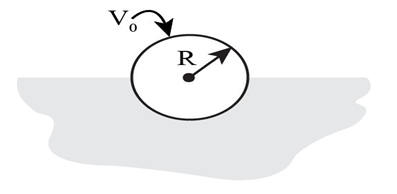

A conducting sphere at potential V0 is half embedded in linear dielectric material of susceptibility χe, which occupies the regionz<0 (Fig. 4.35).

Claim:the potential everywhere is exactly the same as it would have been in the

absence of the dielectric! Check this claim, as follows:

  1. Write down the formula for the proposed potentialrole="math" localid="1657604498573" V(r),in terms ofV0,R,andr.Use it to determine the field, the polarization, the bound charge, and the free charge distribution on the sphere.
  2. Show that the resulting charge configuration would indeed produce the potentialV(r).
  3. Appeal to the uniqueness theorem in Prob. 4.38 to complete the argument.

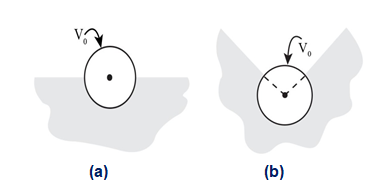

  4. Could you solve the configurations in Fig. 4.36 with the same potential? If not, explain why.
