The linear density of a string is1.6×10-4kg/m. A transverse wave on the string is described by the equationy=(0.021m)sin[2.0m-1x+30s-1t]. (a)What are the wave speed and (b) What is the tension in the string?

Short Answer

Expert verified

a) The speed of the wave is 15m/s

b) The tension in the string is 3.60×10-3N.

Step by step solution

01

The given data

  • The wave equation is given asy=0.021msin2.0m-1x+30s-1t
  • Linear density of a string,μ=1.6×10-4kg/m
  • Wavelength,λ=0.5m
  • Frequency,f=30s-1
02

Understanding the concept of wave equation

The product of wavelength and frequency of the wave is called speed of the wave. the speed of the wave in a stretched string is directly proportional to the square-root of the tension force and inversely proportional to the square-root of linear density of the string.

Formula:

The wave speed of the wave, v=n×λ (i)

The velocity of the wave,v=Tμ (ii)

03

a) Calculation of the wave speed

Using equation (i), the wave speed is given as:

v=30s-1×0.5m=15m/s

Hence, the value of wave speed is 15 m/s

04

b) Calculation of tension in the string

Using equation (ii), the tension in the string is given as:

T=v2μ=15m/s2×1.6×10-4kg/m=3.60×10-3N

Hence, the value of the tension in the string is 3.60×10-3N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Two sinusoidal waves of the same wavelength travel in the same direction along a stretched string. For wave 1,ym=3.0mm andϕ=0°; for wave 2,ym=5.0mmandϕ=70°. What are the (a) amplitude and (b) phase constant of the resultant wave?

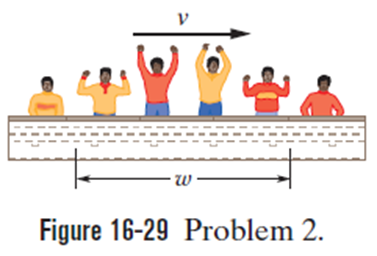

A human wave during sporting events within large, densely packed stadiums, spectators will send a wave (or pulse) around the stadium (Figure). As the wave reaches a group of spectators, they stand with a cheer and then sit. At any instant, the width wof the wave is the distance from the leading edge (people are just about to stand) to the trailing edge (people have just sat down). Suppose a human wave travels a distance of 853seats around a stadium in 39 s, with spectators requiring about 1.8 sto respond to the wave’s passage by standing and then sitting. (a)What is the wave speed v(in seats per second) and (b)What is widthw (in number of seats)?

Figure

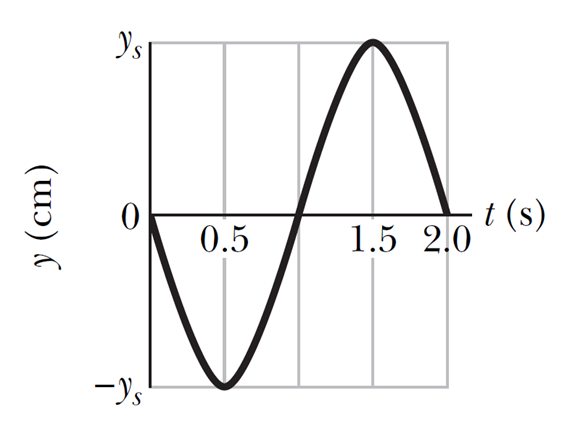

For a particular transverse standing wave on a long string, one of an antinodes is at x = 0and an adjacent node is at x = 0.10 m. The displacement y(t)of the string particle at x = 0is shown in Fig.16-40, where the scale of y theaxis is set by ys=4.0cm. When t = 0.50 s, What is the displacement of the string particle at (a) x = 0.20 mand x = 0.30 m (b) x = 0.30 m? What is the transverse velocity of the string particle at x = 0.20 mat (c) t = 0.50 sand (d) t = 0.1 s ? (e) Sketch the standing wave atfor the range x = 0to x = 0.40 m.

A sinusoidal wave is sent along a string with a linear density of 2.0 g/m. As it travels, the kinetic energies of the mass elements along the string vary. Figure (a)gives the ratedK/dtat which kinetic energy passes through the string elements at a particular instant, plotted as a function of distance x along the string. Figure (b)is similar except that it gives the rate at which kinetic energy passes through a particular mass element (at a particular location), plotted as a function of time t. For both figures, the scale on the vertical (rate) axis is set by Rs = 10 W. What is the amplitude of the wave?

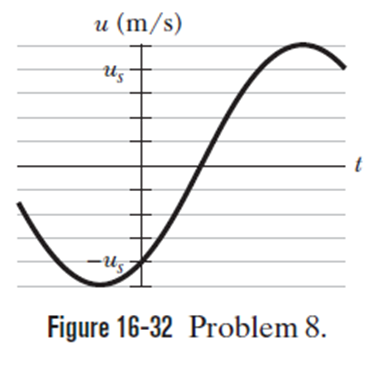

Figure 16-32 shows the transverse velocity u versus time t of the point on a string at x = 0 , as a wave passes through it. The scale on the vertical axis is set by us=4.0m/s . The wave has the form y(x,t)=ymsin(kx-Ó¬t+Ï•) . What then is Ï• ? (Caution:A calculator does not always give the proper inverse trig function, so check your answer by substituting it and an assumed value of Ó¬ into y(x,t)and then plotting the function.)
