Question: An automobile tyre has a volume of 1.64×10-2m3and contains air at a gauge pressure (pressure above atmospheric pressure) of 165 kPawhen the temperature is0.000C.What is the gauge pressure of the air in the tires when the temperature rises to27.00Cand its volume increases to1.67×10-2m3? Assume atmospheric pressure is1.01×105Pa.

Short Answer

Expert verified

Answer

The gauge pressure of the air in the tires is 186 kPa.

Step by step solution

01

Given

  1. Standard air pressure =101kPa
  2. Initial (absolute) pressure,pi=165+101=266kPa
  3. Initial volume,Vi=1.64×10-2m3
  4. Final volume,Vf=1.67×10-2m3
  5. Initial temperature,Ti=0°C=273K
  6. Final temperature,Tf=27°C=300K
02

Determine the concept and the formulas:

Consider the gas is ideal, use the ideal gas law to relate its parameters, both in the initial state iand in the final state f. In this problem, number of moles, ni = nfis the same. So, they cancel out accordingly.

Formula is as follow:

pf=piTfViTiVf

Here, P is pressure, V is volume and T is temperature.

03

Determine the gauge pressure of the air in the tires

To find the final gauge pressure,

pf=piTfViTiVf

Substitute the values and solve as:

pf=2661.64×10-23001.67×10-2273pf=287kPa

Consider the absolute final pressure. But, as it is expressed as gauge pressure, subtract.101kPa

Therefore, gauge pressure is,

287kPa-101kPa=186kPa

Hence,the gauge pressure of the air in the tires is 186 kPa.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The dot in Fig 19-18crepresents the initial state of a gas, and the adiabatic through the dot divides the p-V diagram into regions 1and 2. For the following processes, determine whether the corresponding heat is positive, negative, or zero: (a) the gas moves up along the adiabatic, (b) it moves down along the adiabatic, (c) it moves to anywhere in region 1, and (d) it moves to anywhere in region 2.

Question: What is the average translational kinetic energy of nitrogen molecules at 1600 K?

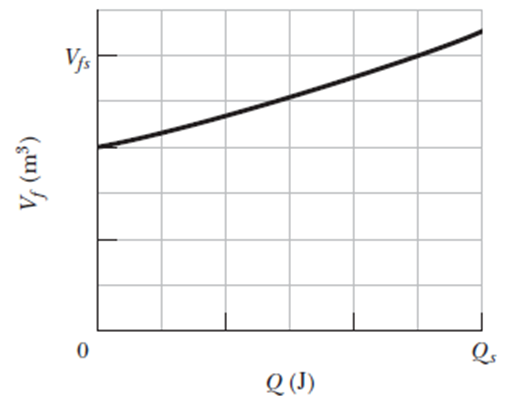

Question: Supposeof an ideal gas undergoes an isothermal expansion as energy is added to it as heat Q. If figure shows the final volume Vf versus Q, what is the gas temperature? The scale of the vertical axis is set by Vfs=.30m3, and the scale of the horizontal axis is set by Qs=1200J

The envelope and basket of a hot-air balloon have a combined weight of2.45 k±· , and the envelope has a capacity (volume) of 2.18×103m3. When it is fully inflated, what should be the temperature of the enclosed air to give the balloon a lifting capacity (force) of 2.67kN(in addition to the balloon’s weight)? Assume that the surrounding air, at20.00C , has a weight per unit volume of11.9N/m3 and a molecular mass of0.028kg/mol , and is at a pressure of1.0atm .

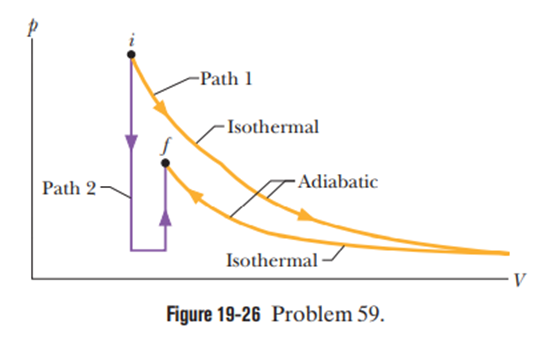

Figure shows two paths that may be taken by a gas from an initial point i to a final point f. Path 1 consists of an isothermal expansion (work is 50 Jin magnitude), an adiabatic expansion (work is 40 Jin magnitude), an isothermal compression (work is 30Jin magnitude) and then an adiabatic compression (work is 25Jin magnitude). What is the change in the internal energy of the gas if the gas goes from point i to point f along path 2?
