An aluminum flagpole 33 m ishigh. By how much does its length increase as the temperature increases by 15C∘?

Short Answer

Expert verified

The increase in length due to its temperature increase is 0.001m.

Step by step solution

01

The given data

  • i)Height of flagpole is, L= 33m
  • ii)The temperature increase,â–³T=15°Câ–³T=15∘C
02

Determine the formulas for the thermal expansion

The linear expansion of length is given by:

△L=Lαb△T ...........(i)

Here, αis the coefficient of linear expansion of body.

03

Calculate the increase in length

Change in the height of the flagpole is a linear expansion.

From this, write the increase in the length of flagpole as
△L=LαAl△T△L=LαAl△T

Here, the linear coefficient of expansion for aluminum isαAl=23×10-61°C

Hence, the increase in length is given as:

△L=33×23×10-6×15=0.011m

Hence, the value of increase in length is 0.011m

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The giant hornet Vespa mandarinia japonica preys on Japanese bees. However, if one of the hornets attempts to invade a beehive, several hundred of the bees quickly form a compact ball around the hornet to stop it. They don’t sting, bite, crush, or suffocate it. Rather they overheat it by quickly raising their body temperatures from thenormal,35°°ä  t´Ç â¶Ä‰47°°ä  o°ù 48°°äwhich is lethal to the hornet but not to the bees (Figure). Assume the following:500bees form a ball ofradiusR=2.0cmforatime,t=20minthe primary loss of energy by the ball is by thermal radiation, the ball’s surface has emissivityε=0.80,and the ball has a uniform temperature. On average, how much additional energy must each bee produce duringthe 20min
tomaintain47°°ä
?

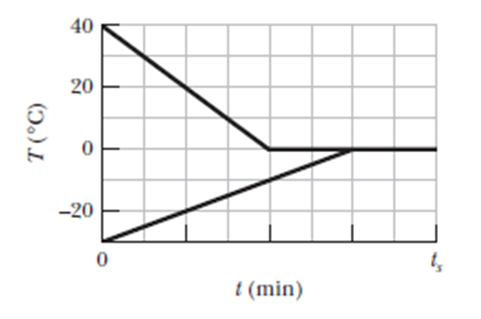

A 0.530 kgsample of liquid water and a sample of ice are placed in a thermally insulated container. The container also contains a device that transfers energy as heat from the liquid water to the ice at a constant rate P, until thermal equilibrium is reached. The temperatures Tof the liquid water and the ice are given in Figure as functions of time t; the horizontal scale is set byts=80.0min(a) What is rate P? (b) What is the initial mass of the ice in the container? (c) When thermal equilibrium is reached, what is the mass of the ice produced in this process?

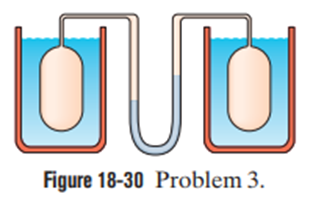

Question: A gas thermometer is constructed of two gas-containing bulbs, each in a water bath, as shown in Figure. The pressure difference between the two bulbs is measured by a mercury manometer as shown. Appropriate reservoirs, not shown in the diagram, maintain constant gas volume in the two bulbs. There is no difference in pressure when both baths are at the triple point of water. The pressure difference is 120 torr when one bath is at the triple point and the other is at the boiling point of water. It is 90.0 torrwhen one bath is at the triple point and the other is at an unknown temperature to be measured. What is the unknown temperature?

An insulated Thermos contains 130cm3of hot coffee at80.0°°ä.You put in a12.0gice cube at its melting point to cool the coffee. By how many degrees has your coffee cooled once the ice has melted and equilibrium is reached? Treat the coffee as though it were pure water and neglect energy exchanges with the environment.

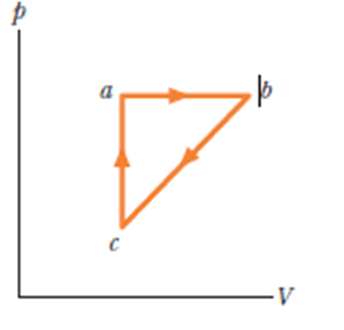

A lab sample of gas is taken through cycle abca shown in the p-V diagram of Figure. The net work done is +1.2 J. Along path ab, the change in the internal energy is +3.0 Jand the magnitude of the work done is 5.0 J. Along path ca, the energy transferred to the gas as heat is +2.5 J.

  1. How much energy is transferred as heat along path ab and
  2. How much energy is transferred as heat along path bc?
