A flow calorimeteris a device used to measure the specific heat of a liquid. Energy is added as heat at a known rate to a stream of the liquid as it passes through the calorimeter at a known rate. Measurement of the resulting temperature difference between the inflow and the outflow points of the liquid stream enables us to compute the specific heat of the liquid. Suppose a liquid of density0.85g/cm3 flows through a calorimeter at the rate of8.0 c³¾3/s .When energy is added at the rate of250W by means of an electric heating coil, a temperature difference of 150Cis established in steady-state conditions between the inflow and the outflow points.What is the specific heat of the liquid?

Short Answer

Expert verified

The specific heat of the liquid is 2.5×103J°ì²µÂ°°ä.

Step by step solution

01

Stating thegiven data

  1. The density of the liquid isÒÏ=0.85gcm3 .
  2. The volume of the liquid flowing through calorimeter per second isV=8.0cm3s.
  3. The rate of adding or takeaway of energy from the calorimeter isP=250W.
  4. The temperature difference between the inflow and outflow is ΔT=15°°ä.
02

Understanding the concept of specific heat

The amount of heat required to increase the temperature of 1 gram of a substance by 1 degree Celsius is known as its specific heat. We can use the concept of specific heat of the water. We can use the expression of density and find the mass of the liquid. By using the concept of power, we can find the amount of heat that this mass takes away from the calorimeter.

Formulae:

Density of the body,ÒÏ=mV…(¾±)

Rate of radiation by the body via thermal radiation,P=Qt…(¾±¾±)

Heat transferred by the body via thermal energy,Q=cm(Tf−Ti) .…(¾±¾±¾±)

03

Calculation of the specific heat of the liquid

The system is in a steady state; hence, the amount of heat added to the liquid, in one second, from the heating coil is equal to the amount of heat flowing away from the liquid in one second through the calorimeter.

The volume of the liquid flowing through the calorimeter in one second isV=8.0cm3.

From equation (i), the value of the mass of the body is given by

m=0.85gcm3×8.0cm3=6.8g

In one second, the amount of heat that this mass takes away from the calorimeter using equation (ii) is given by

Q=250W×1s=250J

The expression for the specific heat of the liquid using equation (iii) is given by

c=QmΔT=250J6.8g×15°°ä=2.45Jg°°ä≈2.5×103J°ì²µÂ°°ä

Hence, the value of the specific heat of the liquid is 2.5×103J°ì²µÂ°°ä.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In a solar water heater, energy from the Sun is gathered by water that circulates through tubes in a rooftop collector. The solar radiation enters the collector through a transparent cover and warms the water in the tubes; this water is pumped into a holding tank. Assume that the efficiency of the overall system is20% (that is, 80%of the incident solar energy is lost from the system).What collector area is necessary to raise the temperature of200L of water in the tank from 20°°äto40°°ä in1.0 h when the intensity of incident sunlight is 700W/m2?

An aluminum cup of 100 cm3capacity is completely filled with glycerin at 22oC. How much glycerin, if any, will spill out of the cup if the temperature of both the cup and the glycerin is increased to 28oC? (The coefficient of volume expansion of glycerin is5.1×10-4/Co)

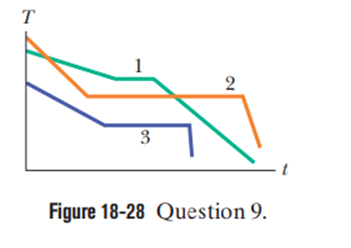

Three different materials of identical mass are placed one at a time in a special freezer that can extract energy from a material at a certain constant rate. During the cooling process, each material begins in the liquid state and ends in the solid state; Fig. 18-28 shows the temperature Tversus time t. (a) For material 1, is the specific heat for the liquid state greater than or less than that for the solid state? Rank the materials according to (b) freezing point temperature, (c) specific heat in the liquid state, (d) specific heat in the solid state, and (e) heat of fusion, all greatest first.
