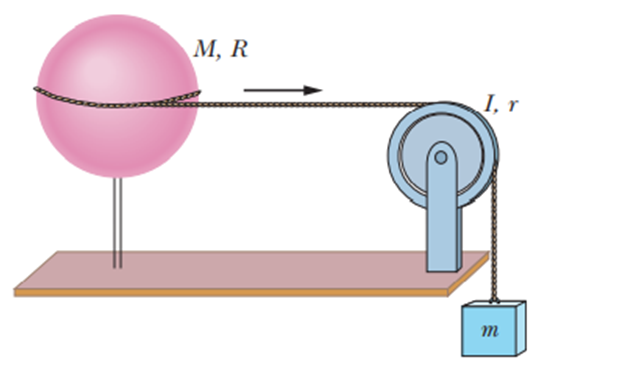

1. Mass of the spherical shell is,$\text{M}=4.5\text{kg}$
2. Radius of the spherical shell is,$R=8.5cm=0.085\text{m}$
3. Rotational inertia of the pulley is,$\text{I}=3.0×{10}^{-3}{\text{kg.m}}^2.$
4. Radius of the pulley is,$r=5.0\text{cm}=0.05\text{m}.$
5. Mass of the small object is,$\text{m}=0.60\text{kg}$
6. $\text{h}=42\text{cm}=0.82\text{m}.$


Applying the law of conservation of energy to the given system,we can write an equation. Inserting angular speed in terms of speed of the system and given values in it, we can find the speed of the object after being released from rest.

Formulae:

The M.I of the spherical shell is

$\text{I}=\frac{2}{3}{\text{MR}}^2$

${\text{E}}_i={\text{E}}_f$

$\mathrm{Ó\neg }=\frac{\text{v}}{\text{r}}{\mathrm{Ó\neg }}^2$

M.I of the spherical shell is

${\text{I}}_s=\frac{2}{3}{\text{MR}}^2=\frac{2}{3}\left(4.5\right){\left(0.085\right)}^2=0.02167{\text{kg.m}}^2$

An object is released from rest. So its initial K.E is zero.

According to conservation of energy,

$$\begin{gathered} {\text{E}}_i={\text{E}}_f \\ {\text{K.E}}_i+{\text{P.E}}_i={\text{K.E}}_f+{\text{P.E}}_f \end{gathered}$$

In this case,

$$\begin{gathered} 0+{\text{P.E}}_{\text{i}}={\text{K.E}}_{sphere}+{\text{K.E}}_{pulley}+{\text{K.E}}_{object} \\ ⇒\text{mgh}=\frac{1}{2}{\mathrm{Ó\neg }}_s^2+\frac{1}{2}\text{I}{\mathrm{Ó\neg }}_p^2+\frac{1}{2}{\text{mv}}^2 \end{gathered}$$

But,$\mathrm{Ó\neg }=\frac{\text{v}}{\text{r}}$

Hence,

$\left(0.60\right)\left(9.8\right)\left(0.82\right)=\frac{1}{2}\left(0.02167\right)\left(\frac{v}{0.085}\right){)}^2+\frac{1}{2}\left(3.0×{10}^{-3}\right){\left(\frac{v}{0.05}\right)}^2+\frac{1}{2}\left(0.60\right){\text{v}}^2$

$⇒4.8216=1.499{\text{v}}^2\text{+}0.6{\text{v}}^2{\text{+0.3vv}}^2$

$⇒{\text{v}}^2=2$

$∴\text{v}=1.4\text{m}/\text{s}$

Therefore, the speed of the object after being released from rest is$1.4\text{m}/\text{s}$
