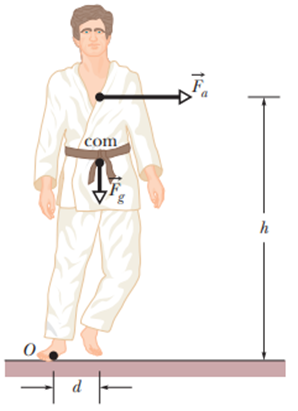

In a judo foot-sweep move, you sweep your opponent’s left foot out from under him while pulling on his gi (uniform) toward that side. As a result, your opponent rotates around his right foot and onto the mat. Figure 10−44shows a simplified diagram of your opponent as you face him, with his left foot swept out. The rotational axis is through point O. The gravitational force F→g on him effectively acts at his center of mass, which is a horizontal distanced=28 c³¾ from point O. His mass is 70Kg, and his rotational inertia about point O is 65 k²µ.³¾2.What is the magnitude of his initial angular acceleration about point O if your pull F→a on his gi is (a) negligible and (b) horizontal with a magnitude of 300Nand applied at height h=1.4″¾ ?

Short Answer

Expert verified
  1. The initial angular acceleration about point O when pull is negligible is,3 r²¹»å/s2.
  2. The initial angular acceleration about point O when pull is horizontal then, α=9.4 r²¹»å/s2.

Step by step solution

01

Understanding the given information

  1. The mass of opponent is,m=70 k²µ.
  2. The gravitational acceleration is,g=9.8″¾/s2
  3. h1=0.28″¾
  4. The moment of inertia is,I=65 k²µm2
  5. h2=1.4″¾
  6. F2=300 N
02

Concept and formula used in the given question

Let the rotational axis be at point O. The gravitational force will act along the player’s center of mass at some distance. In this situation you can find his initial angular acceleration along point O. But this may happen in two cases. One with the force applied by you is negligible along point O. And second with the force applied by you in horizontal direction along point O i.e., total net torque to be calculated. This is how angular acceleration for both cases can be found. The formulas used are given below.

Ï„net=±õαForce=mgh

03

(a) Calculation for the magnitude of initial angular acceleration about point O  if your pull  F→a on his g is negligible

Here force can be considered as torque,

Force=mgh

Therefore torque,

Ï„net=±õαForce=±õα

Also, moment of inertia is given i.e., I=65 k²µ.³¾2

Therefore,

α=ForceIα=mghI

α=(70 k²µ)(9.8″¾/s2)(0.28″¾)(65 k²µ.³¾2)=2.95 r²¹»å/s2≈3 r²¹»å/s2

Hence the initial angular acceleration about point O when pull is negligible is, 3 r²¹»å/s2.

04

(b) Calculation for the magnitude of initial angular acceleration about point O  if your pull F→a  on his g is horizontal with a magnitude of 300 N  and applied at height  h= 1.4 m

Now considering the second case where the force is already mentioned i.e.,F=300 N. We may add both forces to get the angular acceleration along horizontal O point.

Therefore, net torque will be,

Ï„net=±õαα=ForceIα=(70 k²µ)(9.8″¾/s2)(0.28″¾)+1.4″¾Ã—300 N(65 k²µ.³¾2)=9.4 r²¹»å/s2

Hence the initial angular acceleration about point O when pull is horizontal then, α=9.4 r²¹»å/s2.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

If an airplane propeller rotates at 2000 r±ð±¹/³¾¾±²Ôwhile the airplane flies at a speed of480km/h relative to the ground, what is the linear speed of a point on the tip of the propeller, at radius 1.5″¾, as seen by (a) the pilot and (b) an observer on the ground? The plane’s velocity is parallel to the propeller’s axis of rotation.

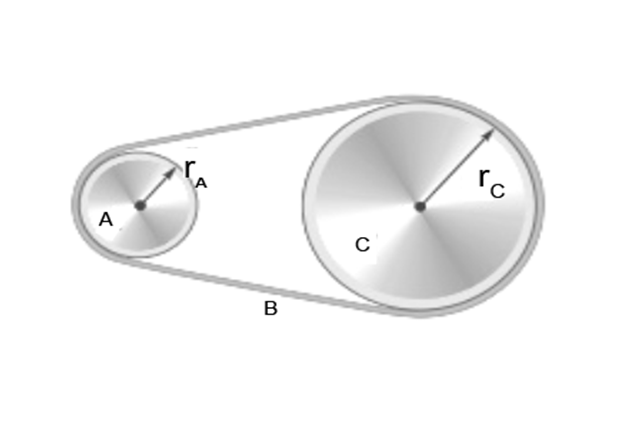

In Fig.10-31 , wheel A of radius rA=10 cmis coupled by belt B to wheel C of radius rC=25 cm .The angular speed of wheel A is increased from rest at a constant rate of1.6rads2 . Find the time needed for wheel C to reach an angular speed of 100revmin , assuming the belt does not slip. (Hint: If the belt does not slip, the linear speeds at the two rims must be equal.)

Figure 10 - 27shows three flat disks (of the same radius) that can rotate about their centers like merry-go-rounds. Each disk consists of the same two materials, one denser than the other (density is mass per unit volume). In disks 1and 3, the denser material forms the outer half of the disk area. In disk 2, it forms the inner half of the disk area. Forces with identical magnitudes are applied tangentially to the disk, either at the outer edge or at the interface of the two materials, as shown. Rank the disks according to (a) the torque about the disk center, (b) the rotational inertia about the disk center, and (c) the angular acceleration of the disk, greatest first.

A diver makes 2.5revolutions on the way from a10mhigh platform to the water. Assuming zero initial vertical velocity, find the average angular velocity during the dive.

In Figure a wheel of radius 0.20m is mounted on a frictionless horizontal axis. The rotational inertia of the wheel about the axis is 0.40kg.m2. A mass less cord wrapped around the wheel’s circumference is attached to a6.0kg box. The system is released from rest. When the box has a kinetic energy of 6.0j,

(a) The wheel’s rotational kinetic energy and

(b) The distance the box has fallen?
