When a slice of buttered toast is accidentally pushed over the edge of a counter, it rotates as it falls. If the distance to the floor is76cmand for rotation less than1rev, what are the (a) smallest and (b) largest angular speeds that cause the toast to hit and then topple to be butter-side down?

Short Answer

Expert verified
  1. The smallest angular speed of the toast to land butter side down is4.0rad/s.

  2. The largest angular speed of the toast to land butter side down11.9rad/s.

Step by step solution

01

Given data

The vertical distance to the floor, y=76cm

The rotation of the toast,θ<1rev

02

Understanding the angular velocity

Angular velocity represents the rate at which an object rotates about an axis. Angular velocity is a vector quantity, with direction given by right hand rule.

The expression for angular velocity is given as:

Ӭ=∆θ∆t … (i)

Here, ∆θis the angular displacement and is the time interval.

The expression for the second equation of motion is given as:

y=v0∆t+12g∆t2

Here, v0is the initial linear velocity and gis the acceleration due to gravity.

03

Determination of the time taken by a toast to fall to the floor

The initial velocity of the toast at maximum height is zero.v0=0m/s

Using equation (ii), the time taken to fall to floor is calculated as:

y=(0)∆t+12g∆t2∆t=2yg=2×0.76m9.8m/s2=0.40sThus,thetimeittakestofallontheflorris0.40s.

04

(a) Determination of smallest angular speed

The minimum angle through which the toast can be turned to land butter side down is,

∆θmin=π2radUsingequation(i),theminimumangularspeediscalculatedas:Ӭ=∆θmin∆t=π2rad0.40s≈4.0rad/s

Thus, the smallest angular speed of the toast to land butter side down is4.0rad/s

05

(b) Determination of the largest angular speed

The maximum angle through which the toast can be turned to be butter side down is,

∆θmax=3π2rad

Using equation (i), the maximum angular speed is calculated as:

Ӭmax=∆θmax∆t=3π2rad0.40s≈11.9rad/s

Thus, the largest angular speed of the toast to land butter side down is 11.9rad/s

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

If an airplane propeller rotates at 2000 r±ð±¹/³¾¾±²Ôwhile the airplane flies at a speed of480km/h relative to the ground, what is the linear speed of a point on the tip of the propeller, at radius 1.5″¾, as seen by (a) the pilot and (b) an observer on the ground? The plane’s velocity is parallel to the propeller’s axis of rotation.

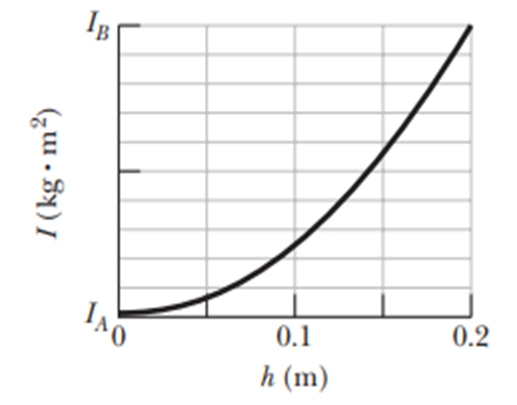

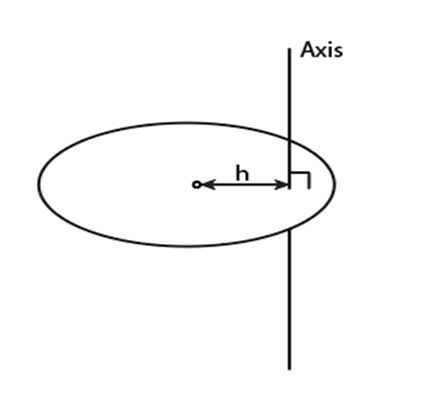

Figure 10-34ashows a disk that can rotate about an axis at a radial distance hfrom the center of the disk. Figure 10-34b gives the rotational inertia lof the disk about the axis as a function of that distance h, from the center out to the edge of the disk. The scale on the laxis is set by lA=0.050kg.m2andlB=0.050kg.m2. What is the mass of the disk?

The flywheel of a steam engine runs with a constant angular velocity of . When steam is shut off, the friction of the bearings and of the air stops the wheel in 2.2 h.

(a) What is the constant angular acceleration, in revolutions per minute-squared, of the wheel during the slowdown?

(b) How many revolutions does the wheel make before stopping?

(c) At the instant the flywheel is turning at75revmin , what is the tangential component of the linear acceleration of a flywheel particle that is50 cm from the axis of rotation?

(d) What is the magnitude of the net linear acceleration of the particle in (c)?

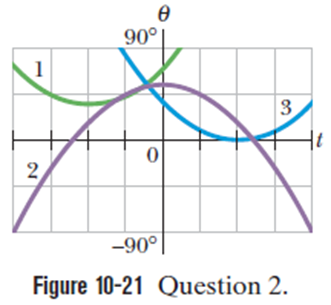

Figure10-21shows plots of angular positionθversus time t for three cases in which a disk is rotated like a merry-go-round. In each case, the rotation direction changes at a certain angular positionθchange. (a) For each case, determine whetherθchangeis clockwise or counterclockwise fromθ=0, or whether it is atθ=0. For each case, determine (b) whether v is zero before, after, or att=0and (c) whether a is positive, negative or zero.

In Fig. 10 - 37, two particles, each with mass m = 0.85KG , are fastened to each other, and to a rotation axis at O , by two thin rods, each with length d = 5.6cm and mass M = 1.2kg . The combination rotates around the rotation axis with the angular speed v = 0.30rad/s . Measured about O, what are the combination’s (a) rotational inertia and (b) kinetic energy?
