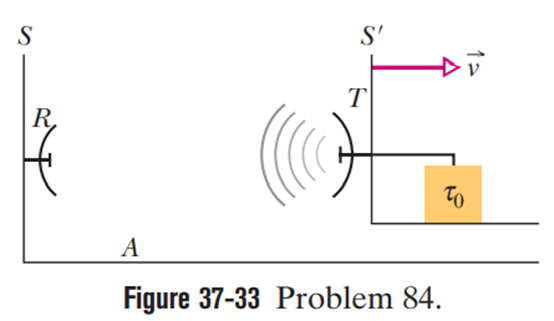

A radar transmitterTisfixedto a reference frame S'that is moving to the right with speed v relative to reference frame S(Fig. 37-33). A mechanical timer (essentially a clock) in frame S', having a period τ∘ (measured inS' ), causes transmitter Tto emit timed radar pulses, which travel at the speed of light and are received by R, a receiver fixed in frame S. (a) What is the period τof the timer as detected by observer A, who is fixed in frame S? (b) Show that at receiver R the time interval between pulses arriving fromT is not τor τo, but

τR=τoc+vc-v

(c) Explain why receiver Rand observer A, who are in the same reference frame, measure a different period for the transmitter. (Hint: A clock and a radar pulse are not the same thing.)

Short Answer

Expert verified
  1. The time period measured by the observer in frame S is

τ=τ∘1-u2c2

b. The expression for time period measured by the detector is

τR=τoc+vc-v

c. The observer in frame S measures purely time dilations effect whereas the receiver measures the doppler shift of the periodic waves.

Step by step solution

01

Concept of time dilation and Doppler effect:

Time dilation, in special relativity, the "slowing down" of a clock as determined by an observer in relative motion relative to that clock.

Doppler effect, the apparent difference between the frequency at which sound or light waves leave the source and the frequency at which they reach the observer, caused by the relative motion of the observer and the wave source.

02

Time Dilation:

Suppose two consecutive events occur at the same location; the time interval measured in the same inertial reference frame is called proper time. And the time interval measured in any other reference frame relative to this frame will be longer than the proper time. The formula given below is used to determine the time interval in another frame.

∆t=∆t∘1-u2c2

Where ∆tois the proper time, and ∆tis the interval measured by an observer moving with a relative speed u.

Here, the time period measured by the observer in frame S is,

τ=τ∘1-u2c2

03

Doppler effect:

In astronomy applications, the velocities of galaxies are estimated using Doppler shifts. Doppler shift is the difference between the observed and proper wavelength of light. The wavelength measured in the rest frame of the source is called proper wavelength λ∘. And the detected wavelength λis related to the proper wavelength as

λ=λo1+β1-β

Where, βis the speed parameter v/c.

The wavelength and frequency are related by,

λ=cf

Inserting this in above expression, we get

cf=cfo1+β1-βf=fo1-β1+β

The frequency and time period are related by f=2Ï€/Ï„.Inserting this in above equation and we get the expression as,

localid="1663135596103" τR=τo1+β1-β

=τ∘1+vc1-vcτR=τoc+vc-v

Thus, the expression for time period measured by the detector is derived.

04

(c) Explain why receiver R  and observer  A, who are in the same reference frame, measure a different period for the transmitter:

The doppler shift comprises of two phenomena: the time dilation of the moving transmitter and time differences in two travelling periodic pulses. The observer in frame measures purely time dilations effect whereas the receiver measures the doppler shift of the periodic waves. Hence the time period measured are different.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

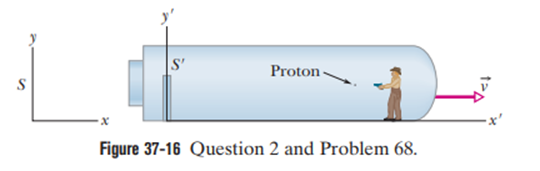

Figure 37-16 shows a ship (attached to reference frame S') passing us (standing in reference frame S) with velocity v→=0.950ci^. A proton is fired at speed 0.980c relative to the ship from the front of the ship to the rear. The proper length of the ship is 760″¾ . What is the temporal separation between the time the proton is fired and the time it hits the rear wall of the ship according to (a) a passenger in the ship and (b) us? Suppose that, instead, the proton is fired from the rear to the front. What then is the temporal separation between the time it is fired and the time it hits the front wall according to (c) the passenger and (d) us?
