What is the frequency of a simple pendulum 2.0mlong (a) in a room, (b) in an elevator accelerating upward at a rate of role="math" localid="1657259780987" 2.0m/s2, and (c) in free fall?

Short Answer

Expert verified
  1. The frequency of the pendulum in a room is0.35Hz.
  2. The frequency of the pendulum in an elevator is0.39Hz.
  3. The frequency of pendulum in free fall is 0Hz.

Step by step solution

01

The given data

Length of the pendulumL=20m

02

Understanding the concept of frequency

The angular frequencyis related to the periodand frequencyof the motion by,

Ó¬=2Ï€T=2Ï€´Ú=km

Using the relation between frequency and acceleration and then considering acceleration in various situations we can find frequencies in the room, in the elevator with acceleration, and in the free fall case.

Formula:

The angular frequency of a body in oscillation,

Ó¬=2Ï€forÓ¬=2Ï€TorÓ¬=mgLl (i)

The period of oscillation of a pendulum,T=2Ï€Lg (ii)

The frequency of a body, f=1/T (iii)

03

a) Calculation of frequency in the room

Using equations (ii) and (iii), we can get the frequency in the room as:

fr=12×3.149.8m/s22m=0.3523Hz≈0.35Hz

Hence, the required value of frequency is 0.35Hz.

04

b) Calculation of frequency in the elevator

As the elevator is moving upward, acceleration a is positive and we have to add it with g. Hence, again using the equations (ii) and (iii), we get the frequency in the elevator as:

fe=12πg+aL=12×3.149.8m/s2+2m/s22m=0.3853Hz≈0.39Hz

Hence, the required value of frequency is 0.39Hz.

05

c) Calculation of frequency in the free-fall

As the pendulum is in free fall, acceleration is negative and is equal to g. Hence, using the equations (ii) and (iii), we get the frequency in the free-fall case as:

f(f)=12Ï€g-gL=0Hz

Hence, the required value of frequency is 0Hz.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

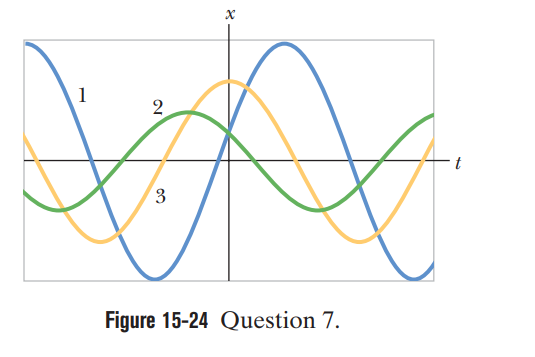

Figure 15-24shows the x(t) curves for three experiments involving a particular spring–box system oscillating in SHM. Rank the curves according to (a) the system’s angular frequency, (b) the spring’s potential energy at time t=0, (c) the box’s kinetic energy att=0, (d) the box’s speed att=0, and (e) the box’s maximum kinetic energy, greatest first.

An object undergoing simple harmonic motion takes 0.25 sto travel from one point of zero velocity to the next such point. The distance between those points is 36 cm.

(a) Calculate the period of the motion.

(b) Calculate the frequency of the motion.

(c) Calculate the amplitude of the motion.

A (hypothetical) large slingshot is stretched 2.30 to launch a 170g projectile with speed sufficient to escape from Earth (11.2km/s). Assume the elastic bands of the slingshot obey Hooke’s law. (a) What is the spring constant of the device if all the elastic potential energy is converted to kinetic energy? (b) Assume that an average person can exert a force of 490 N. How many people are required to stretch the elastic bands?

A loudspeaker diaphragm is oscillating in simple harmonic motion with a frequency of440Hzand a maximum displacement of0.75mm.

  1. What is the angular frequency?
  2. What is the maximum speed?
  3. What is the magnitude of the maximum acceleration?

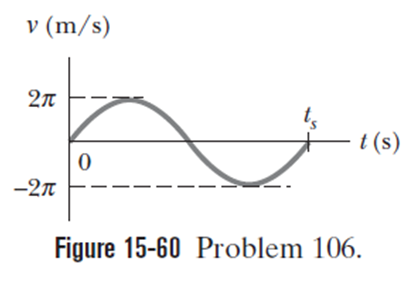

A simple harmonic oscillator consists of a block attached to a spring with k=200 N/m. The block slides on a frictionless surface, with an equilibrium point x=0and amplitude 0.20 m. A graph of the block’s velocity v as a function of time t is shown in Fig. 15-60. The horizontal scale is set byts=0.20s. What are (a) the period of the SHM, (b) the block’s mass, (c) its displacement att=0, (d) its acceleration att=0.10s, and (e) its maximum kinetic energy.
