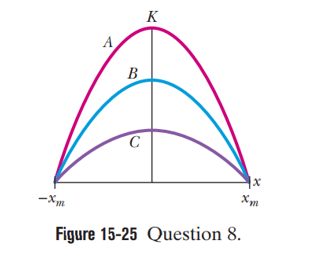

The graph of K versus x for three harmonic oscillators is given.

We can use the law of conservation of energy and write for the maximum kinetic energy of an object in terms of the spring constant. From the equation and graph given, we can compare the proportionality of K and k

and can rank the plots according to spring constants. Using the equation of period and using the relation between T and k we can rank the plots for T.

Formulae:

The kinetic energy of a spring-system,$K=\frac{1}{2}k{x}_m^2$ (i)

The period of an oscillation in SHM, $\mathrm{T}=2\mathrm{Ï€}\sqrt{\frac{\mathrm{m}}{\mathrm{k}}}$ (ii)

a)

From equation (i), we can see that K is directly proportional to spring constant k.

$K\mathrm{Î\pm }k$

Therefore, the ranking of the plots according to the spring constant is$k_A>k_B>k_C$ .

b)

From equation (ii), the period T is found to be inversely proportional to$\sqrt{k}$, that is given as:

$T\mathrm{Î\pm }\frac{1}{\sqrt{k}}$

Since the ranking of plots according to spring constant is role="math" localid="1657261768550" $k_A>k_B>k_C$

Hence, the ranking of plots according to the period of the oscillator is$T_C>T_B>T_A$ .
