A block is in SHM on the end of a spring, with position given by x=xmcos(Ӭt+ϕ). Ifϕ=π/5rad, then at t = 0what percentage of the total mechanical energy is potential energy?

Short Answer

Expert verified

Percentage of total mechanical energy that is potential energy at t = 0 is 65.5 %.

Step by step solution

01

The given data

  1. Position of the block isx=xmcos(Ó¬t+Ï•)
  2. Ï•=Ï€5rad
02

Understanding the concept of energy

A particle in simple harmonic motion has, at any time, potential energy

p=12kx2

First, we have to find the position and potential energy of the block, then, we have to find the total mechanical energy which equals to maximum potential energy according to the law of conservation of energy. By taking the ratio of potential energy to maximum potential energy (E), we can find the percentage of total mechanical energy which is potential energy at t=0.

Formulae:

The displacement equation of a wave,x=xmcos(Ó¬t+Ï•) (i)

The total potential energy of a particle, E=12kxm2 (ii)

03

Calculation of mechanical energy that is potential energy

The displacement equation at t = 0 can be given as:

x0=xmcos(ϕ)=xmcosπ5

Here, the total mechanical energy equals to its maximum potential energy. So, total energy is given as:

E=12kxm2

Now its potential energy at t = 0 is,

P.E0=12kx02=12kxmcosπ52=12kxm2cos2π5

Percentage of total mechanical energy is potential energy at t = 0 is,

P.E0E×100=12kxm2cos2π512kxm2=cos2π5×100=65.5%

Therefore, percentage of total mechanical energy is potential energy at t = 0 is 65.5 %

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

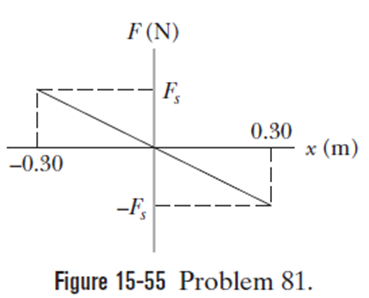

A simple harmonic oscillator consists of a 0.50 kgblock attached to a spring. The block slides back and forth along a straight line on a frictionless surface with equilibrium point x=0. At t=0the block is at x=0and moving in the positive x direction. A graph of the magnitude of the net forceF→on the block as a function of its position is shown in Fig. 15-55. The vertical scale is set by FS=75.0N. What are (a) the amplitude and (b) the period of the motion, (c) the magnitude of the maximum acceleration, and (d) the maximum kinetic energy?

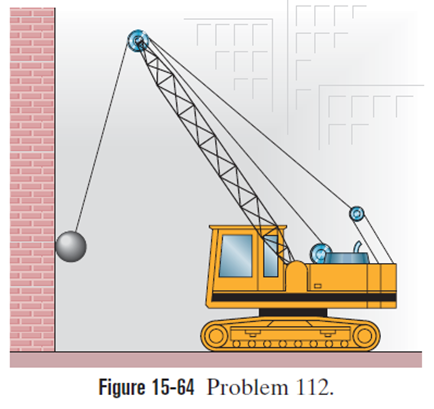

In Fig. 15-64, ademolition ball swings from the end of a crane. The length of the swinging segment of cable is 17. (a) Find the period of the swinging, assuming that the system can be treated as a simple pendulum. (b) Does the period depend on the ball’s mass?

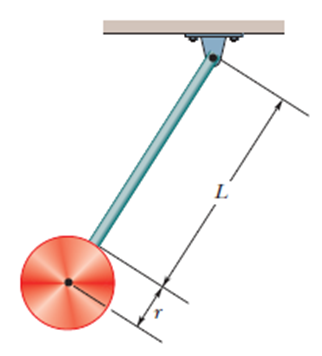

Question: In Figure, the pendulum consists of a uniform disk with radius r = 10.cmand mass 500 gm attached to a uniform rod with length L =500mm and mass 270gm.

  1. Calculate the rotational inertia of the pendulum about the pivot point.
  2. What is the distance between the pivot point and the center of mass of the pendulum?
  3. Calculate the period of oscillation.

In Figure 15-37, two blocks(m=1.8kgandM=10kg)(and) and a spring (k=200 N/m) are arranged on a horizontal, frictionless surface. The coefficient of static friction between the two blocks is 0.40.What amplitude of simple harmonic motion of the spring–blocks system puts the smaller block on the verge of slipping over the larger block?

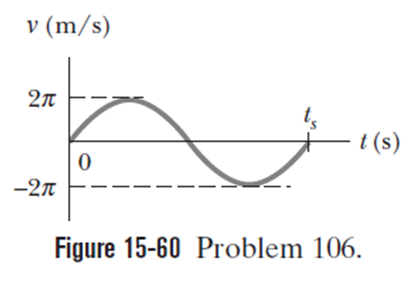

A simple harmonic oscillator consists of a block attached to a spring with k=200 N/m. The block slides on a frictionless surface, with an equilibrium point x=0and amplitude 0.20 m. A graph of the block’s velocity v as a function of time t is shown in Fig. 15-60. The horizontal scale is set byts=0.20s. What are (a) the period of the SHM, (b) the block’s mass, (c) its displacement att=0, (d) its acceleration att=0.10s, and (e) its maximum kinetic energy.
