A particle with a mass of1.00×10-20kgis oscillating with simple harmonic motion with a period of 1.00×10-5sand a maximum speed of1.00×103m/s.

  1. Calculate the angular frequency of the particle.
  2. Calculate the maximum displacement of the particle.

Short Answer

Expert verified
  1. The angular frequency of the particle is 6.28×105rad/sec.
  2. The maximum displacement of the particle is 1.59×10-3m.

Step by step solution

01

Stating the given data

  1. Mass of particle,m=1×10-20kg
  2. Time period of SHM,data-custom-editor="chemistry" t=1×10-5sec
  3. Maximum speed of the body,v=1×103m/s
02

Understanding the concept of motion

We can find the angular frequency by using the time period of motion. And maximum displacement can be found by using the formulae of maximum velocity and angular frequency.

Formula:

Angular frequency of a body in oscillation

Ó¬=2Ï€T (i)

The velocity of a body undergoing simple harmonic motion

v=Ó¬Xm (ii)

03

a) Calculation of angular frequency of the body

Using equation (i) and the given values, the angular frequency is given as follows:

Ӭ=2π1×10-5=6.28×105rad/sec

Hence, the angular frequency is 6.28×105rad/sec.

04

b) Calculation of maximum displacement

Using the given values and equation (ii), we get the maximum displacement as follows:

1×103=6.28×105×XmXm=1.59×10-3m

Hence, the maximum displacement is 1.59×10-3m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A massless spring hangs from the ceiling with a small object attached to its lower end. The object is initially held at rest in a position yisuch that the spring is at its rest length. The object is then released from yiand oscillates up and down, with its lowest position being 10cmbelowyi

(a) What is the frequency of the oscillation?

(b) What is the speed of the object when it is 8.0cmbelow the initial position?

(c) An object of mass 300gis attached to the first object, after which the system oscillates with half the original frequency. What is the mass of the first object?

(d) How far below yiis the new equilibrium (rest) position with both objects attached to the spring?

What is the length of a simple pendulum whose full swing from left to right and then back again takes 3.2 S?

A 55.0 gblock oscillates in SHM on the end of a spring with k = 1500 N/maccording to x=xmcos(Ó¬t+Ï•). How long does the block take to move from positionto +0.800xm(a) position +0.600xmand (b) position+0.800xm?

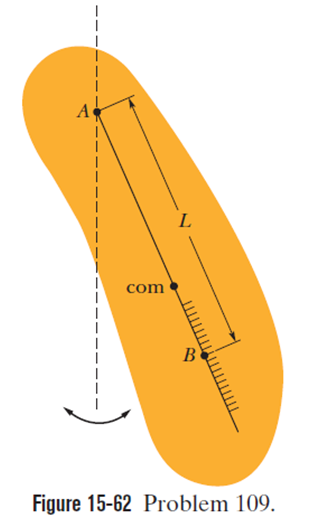

The physical pendulum in Fig. 15-62 has two possible pivot points A and B. Point A has a fixed position but B is adjustable along the length of the pendulum as indicated by the scaling. When suspended from A, the pendulum has a period ofT=1.80s. The pendulum is then suspended from B, which is moved until the pendulum again has that period. What is the distance L between A and B?

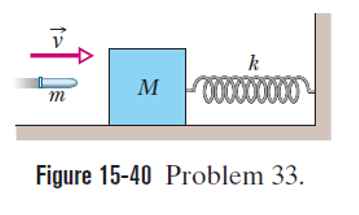

A block of massM=5.4kg, at rest on a horizontal frictionless table, is attached to a rigid support by a spring of constantk=6000N/m. A bullet of massm=9.5gand velocityv→of magnitud630m/sstrikes and is embedded in the block (SeeFigure). Assuming the compression of the spring is negligible until the bullet is embedded.

(a) Determine the speed of the block immediately after the collision and

(b) Determine the amplitude of the resulting simple harmonic motion.
