A car moves along an x axis through a distance of900 m, starting at rest (at x=0) and ending at rest (at x=900m). Through the first 14of that distance, its acceleration is +2.25m/s2. Through the rest of that distance, its acceleration is -0.750m/s2. What are (a) its travel time through 900 m. (b) its maximum speed? (c) Graph position x, velocity v and acceleration a versus time t for the trip.

Short Answer

Expert verified

(a) Travel time of the car through the 900 m is 56.6s.

(b) The maximum speed of the car is 31.8m/s.

Step by step solution

01

Given information

Acceleration: a1=2.25m/s2

Acceleration: a2=-0.750m/s2

Displacement: x=900m

Displacement: x1=9004=225m

Displacement: x2=3(900)4m

02

Understanding the concept

The problem deals with the kinematic equation of motion in which the motion of an object is described at constant acceleration.Using the second kinematic equation, the time to travel the distance 900 m can be found. Using the formula for the third kinematic equation, find the maximum velocity of the car.

Formula:

The displacement in kinematic equations is given by,

x=v0t+12at2

The final velocity is given by,

vf2=v02+2ax

03

(a) Determination of travel time for a car for 900 m

A car travels distance of 900 m along x axis and starts at rest (x=0m) and ends at rest (x=900m).

For first 14of that distance, acceleration is +2.25m/s2 and for rest of that distance, it’s acceleration is -0.750m/s2.

We have,

x1=v01t1+12a1t12 (i)

Where,

a1=+2.25m/s2x1=9004mv01=0m/s

t1=14.14s

x2=v02t2-12a2t22 (ii)

Where,

a2=-0.75m/s2x2=39004mv02=0m/s

t2=42.46s

So, the total time is t=t1+t2=14.14+42.46=56.6s.

04

(b) Determination of maximum speed of car

v2=(v01)2+2a1x1v2=0+22.25m/s2225m=1013m2/s2v=31.8m/s

So the maximum speed is v=31.8m/s.

05

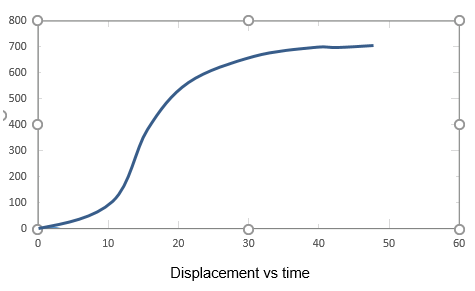

(c) Graph of displacement vs time

06

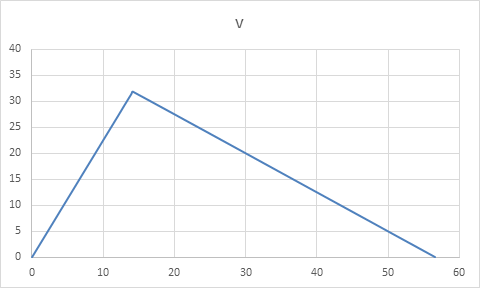

(c) Graph of velocity vs time

07

(c) Graph of acceleration vs time
