Chapter 29: Q51P (page 836)

A 200鈭�turnsolenoid having a length of25cmand a diameter of10cmcarries a current of0.29A. Calculate the magnitude of the magnetic field inside the solenoid.

Short Answer

Expert verified

The magnitude of the magnetic field inside the solenoid is 3脳10-4T.

Step by step solution

01

Listing the given quantities

  • l=25鈥�cm=0.25m
  • d=10鈥�cm=0.10m
  • N=200
  • i=0.29A
02

Understanding the concept of magnetic field and solenoid

We can calculate the magnetic field due to an ideal solenoid. In our case, the solenoid has a definite length, so we use this equation to calculate the magnetic field inside the solenoid.

Formula:

B=渭0in=渭0iNl

03

Calculate the magnitude of the magnetic field

We can calculate the magnetic field.

B=渭0in=渭0iNl=1.26脳10-6脳0.29脳2000.25=2.92脳10-4T鈮�3脳10-4T

Hence, the magnitude of the magnetic field inside the solenoid is 3脳10-4T.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

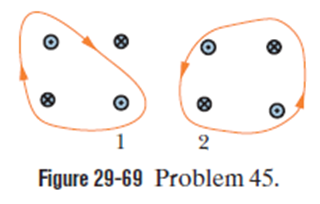

Each of the eight conductors in Figure carries 2.0Aof current into or out of the page. Two paths are indicated for the line integral. 鈭�B鈫�.ds鈫�(a) What is the value of the integral for path 1 and (b) What is the value of the integral for path 2?

Figure 29-80 shows a cross-section of a long cylindrical conductor of radius a=4鈥�cmcontaining a long cylindrical hole of radiusb=1.50cm. The central axes of the cylinder and hole are parallel and are distanced=2cmapart; currentis uniformly distributed over the tinted area. (a) What is the magnitude of the magnetic field at the center of the hole? (b) Discuss the two special casesb=0andd=0.

Question:In Figure, four long straight wires are perpendicular to the page, and their cross sections form a square of edge length a=20cm. The currents are out of the page in wires 1 and 4 and into the page in wires 2 and 3, and each wire carries 20 A. In unit-vector notation, what is the net magnetic field at the square鈥檚 center?

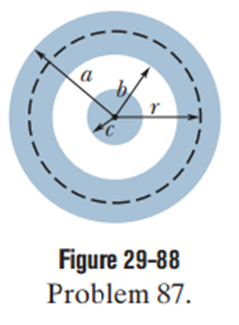

Figure 29-88 shows a cross section of a long conducting coaxial cable and gives its radii (a,b,c). Equal but opposite currents iare uniformly distributed in the two conductors. Derive expressions for B (r) with radial distance rin the ranges (a) r < c, (b) c< r <b , (c) b < r < a, and (d) r > a . (e) Test these expressions for all the special cases that occur to you. (f) Assume that a = 2.0 cm, b = 1.8 cm, c = 0.40 cm, and i = 120 A and plot the function B (r) over the range 0 < r < 3 cm .

A straight conductor carrying current i=5.0Asplits into identical semicircular arcs as shown in Figure. What is the magnetic field at the center C of the resulting circular loop?
