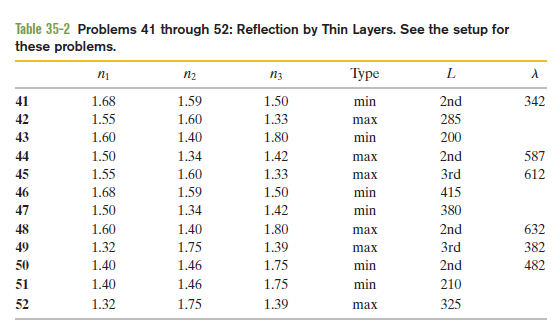

Reflection by thin layers. In Fig. 35-42, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) The waves of rays r1and r2interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35- 2 refers to the indexes of refraction n1, n2, and n3, the type of interference, the thin-layer thickness in nanometres, and the wavelength λ in nanometres of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The wavelength of the reflected light is 455nm.

Step by step solution

01

Interference in thin films:

Light interference is the cause of the vivid colors that thin oil on water and soap bubbles reflect. These vivid hues can be seen because of the light reflection from the thin film's front and rear surfaces' constructive interference.

For a perpendicular incident beam, the maximum intensity of light from the thin film satisfies the condition:(Maxima—bright film in the air)

2L=m+12λn2m=0,1,2,...(Maxima—bright film in the air)

2L=mλn2m=1,2,3,..(Minima)

Where, λis the wavelength of the light in air, Lis its thickness, and n2is the film’s refractive index.

02

Determine the wavelength of light:

Here, in this case, light travels in a medium with n1=1.32and incident on the thin layer whose refractive index is n2=1.75and the reflected light has phase change as the light is reflected off the denser medium. And then, the refracted light gets reflected of the back surface n3=1.39while traveling through the film.

This results in no phase change. The total phase difference between r1and r2 is 180o.

As a result, the condition for constructive interference or maximum intensity is,

2L=m+12λn2λ=4Ln22m+1

The wavelength for first few orders is as below.

For : m=0

localid="1663011607370" λ=4325nm1.7520+1=2275nm

For:m=1

localid="1663011956572" λ=4(325mm)(1.75)2(1)+1=758mm

For :m=2

λ=4(325mm)(1.75)2(2)+1=455nm

As 455nmis in the visible range, the wavelength of the light is 455nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

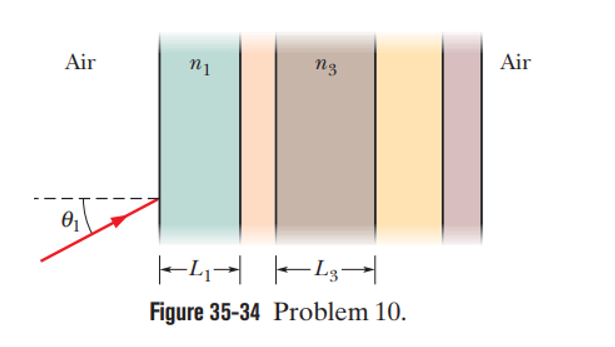

In Fig. 35-34, a light ray is an incident at angle θ1=50°on a series of five transparent layers with parallel boundaries. For layers 1 and 3 , L1=20μm , L2=25μm, n1=1.6and n3=1.45. (a) At what angle does the light emerge back into air at the right? (b) How much time does the light take to travel through layer 3?

Find the sum y of the following quantities: y1=10sinӬt and y2=8.0sin(Ӭt+30°)

In Figure 35-50, two isotropic point sources S1and S2emit light in phase at wavelength λand at the same amplitude. The sources are separated by distance d=6.00λon an x axis. A viewing screen is at distance D=20.0λfrom S2and parallel to the y axis. The figure shows two rays reaching point P on the screen, at height yp. (a) At what value of do the rays have the minimum possible phase difference? (b) What multiple of λgives that minimum phase difference? (c) At what value of ypdo the rays have the maximum possible phase difference? What multiple of λgives (d) that maximum phase difference and (e) the phase difference when yp=d? (f) When yp=d, is the resulting intensity at point P maximum, minimum, intermediate but closer to maximum, or intermediate but closer to minimum?

Light of wavelengthis used in a Michelson interferometer. Letx be the position of the movable mirror, withx=0when the arms have equal lengthsd2=d1. Write an expression for the intensity of the observed light as a function of , lettinglmbe the maximum intensity.

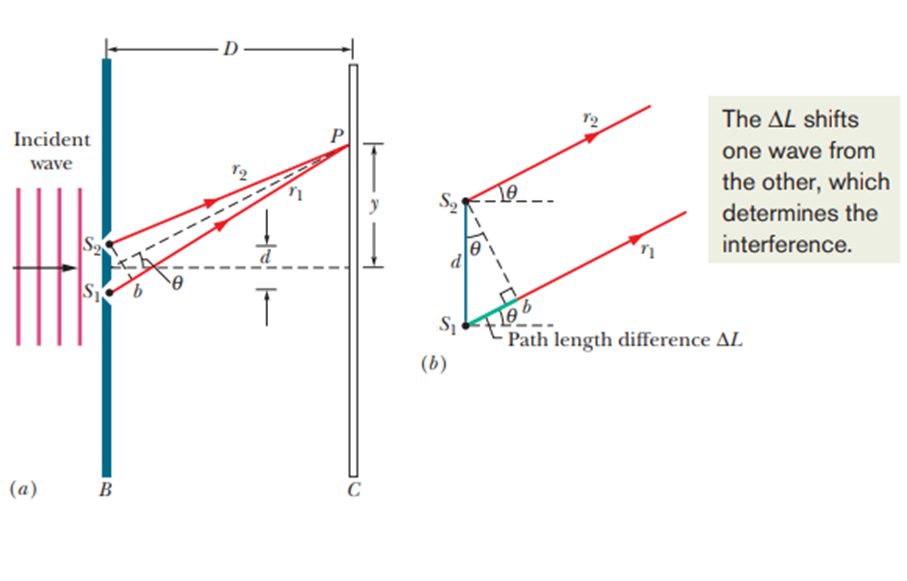

In the double-slit experiment of Fig. 35-10, the electric fields of the waves arriving at point P are given by
