Chapter 30: Q55P (page 899)

A battery is connected to a series RL circuit at time t = 0 . At what multiple of蟿Lwill the current be 0.100% less than its equilibrium value?

Short Answer

Expert verified

t=6.90蟿L

Step by step solution

01

Given

A battery is connected to a series RL circuit at time t = 0

02

Understanding the concept

We use the concept of current through RL circuit. Using the equation, we can find the time at the given value of current.

Formulae:

i=VR1-e-t蟿L

03

Calculate at what multiple of τL will the current be 0.100%  less than its equilibrium value

We know 蟿L=LR,and 0.100% less means 0.999% , so we can write

i=0.999VR

Using this intheequation of current, we get

0.999VR=VR1-e-t蟿L0.999=1-e-t蟿Le-t蟿L=1-0.999e-t蟿L=1-0.0010

Taking log on both sides,

-t蟿L=-6.90t=6.90蟿L

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

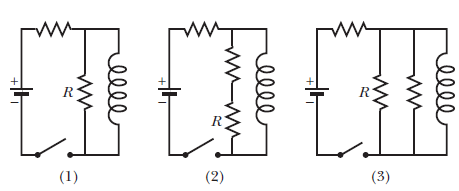

Figure 30-29 shows three circuits with identical batteries, inductors, and resistors. Rank the circuits, greatest first, according to the current through the resistor labeled R (a) long after the switch is closed, (b) just after the switch is reopened a long time later, and (c) long after it is reopened

A square loop of wire is held in a uniformB=0.24Tmagnetic field directed perpendicular to the plane of the loop. The length of each side of the square is decreasing at a constant rate of 5.0 cm/s. What emf is induced in the loop when the length is 12 cm ?

In Figure, a rectangular loop of wire with lengtha=2.2cm,widthb=0.80cm,resistanceR=0.40m惟is placed near an infinitely long wire carrying current i = 4.7 A. The loop is then moved away from the wire at constant speed v = 3.2 mm/s. When the center of the loop is at distance r = 1.5b, (a) what is the magnitude of the magnetic flux through the loop?(b) what is the current induced in the loop?

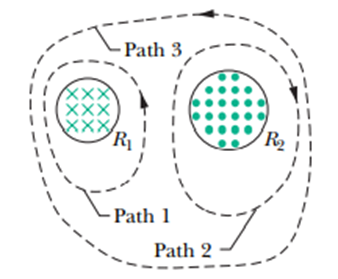

Figure shows two circular regions R1 and R2 with radii r1=20.0cmandr2=30.0cm. In R1 there is a uniform magnetic field of magnitudeB1=50.0mT directed into the page, and in R2 there is a uniform magnetic field of magnitude B1=75.0mTdirected out of the page (ignore fringing). Both fields are decreasing at the rate of 8.50 mT/s. (a) Calculate 鈭�E鈫�.ds鈫�for path 1.(b) Calculate 鈭�E鈫�.ds鈫�for path 2.(c) Calculate 鈭�E鈫�.ds鈫�for path 3.

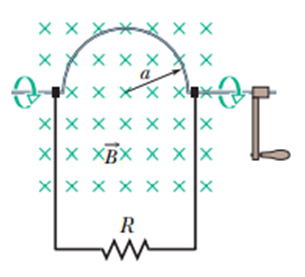

Question: In Figure, a stiff wire bent into a semicircle of radius a = 2.0cmis rotated at constant angular speed 40revsin a uniform 20mTmagnetic field. (a) What is the frequency? (b) What is the amplitude of the emf induced in the loop?
