Inductors in series. Two inductors L1 and L2 are connected in series and are separated by a large distance so that the magnetic field of one cannot affect the other.(a)Show that the equivalent inductance is given by

Leq=L1+L2

(Hint: Review the derivations for resistors in series and capacitors in series. Which is similar here?) (b) What is the generalization of (a) for N inductors in series?

Short Answer

Expert verified

a)Leq=L1+L2

b)Leq=鈭�n=1nLn

Step by step solution

01

Given

i) L1- Inductance of inductor 1.

ii) L2- Inductance of inductor 2.

iii) Leq- Equivalent inductance of series connection.

iv) Hint: Review the derivation for resistors in series and capacitors in series.

02

Understanding the concept

Net voltage across the series connection of inductors is the sum of voltages across each inductor.

Formulae:

Net voltage for series connection of inductors:

V=V1+V2V1-voltageacrossL1V2-voltageacrossL2

03

Show that the equivalent inductance is given by Leq=L1+L2

For series connection, the current is the same for each inductor.

V=V1+V2LeqI=L1I+L2I

Hence,

Leq=L1+L2

04

(b) Find the generalization of (a) for   conductors in series

Equivalent inductance fornumbers of inductors in series is

Leq=L1+L2+L3+鈰�+Ln

Generalization oftheabove formula is

Leq=鈭�n=1nLn

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

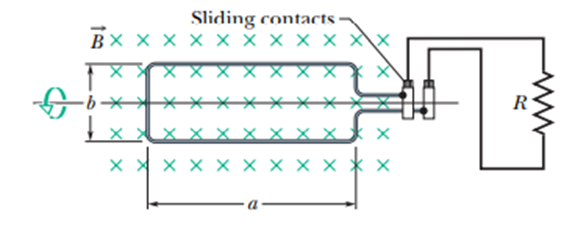

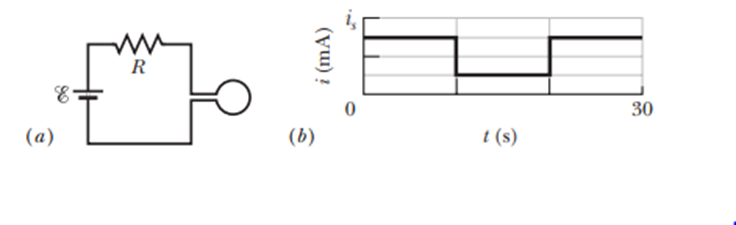

A rectangular coil of N turns and of length a and width b is rotated at frequency f in a uniform magnetic field, as indicated in Figure. The coil is connected to co-rotating cylinders, against which metal brushes slide to make contact. (a) Show that the emf induced in the coil is given (as a function of time t) by蔚=2蟿蟿fNabsin(2蟿蟿ft)=蔚0sin(2蟿蟿ft). This is the principle of the commercial alternating-current generator. (b) What value of Nabgives an emf with蔚0150Vwhen the loop is rotated at 60.0revs in a uniform magnetic field of 0.500 T?

A square wire loop 20 cmon a side, with resistance 20 m惟 , has its plane normal to a uniform magnetic 铿乪ld of magnitude B = 2.0 T . If you pull two opposite sides of the loop away from each other, the other two sides automatically draw toward each other, reducing the area enclosed by the loop. If the area is reduced to zero in time鈭�t=0.20s ,(a)What is the average emf?(b)What is the average current induced in the loop during鈭�t'?

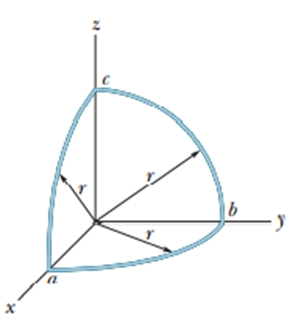

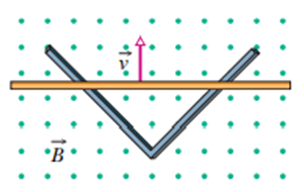

A wire is bent into three circular segments, each of radius r=10 cm, as shown in Figure. Each segment is a quadrant of a circle, ab lying in the xy plane, bc lying in the yz plane, and ca lying in the zx plane. (a) If a uniform magnetic fieldB鈫�points in the positive x direction, what is the magnitude of the emf developed in the wire when B increases at the rate of 3.0 mT/s? (b) What is the direction of the current in segment bc?

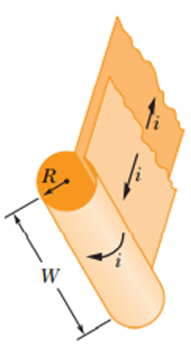

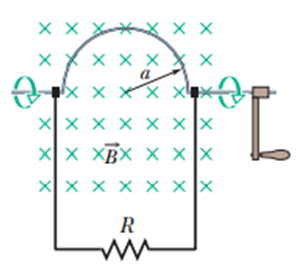

Figure shows a copper strip of width W = 16.0 cmthat has been bent to form a shape that consists of a tube of radius R = 1.8 cmplus two parallel flat extensions. Current i = 35 mAis distributed uniformly across the width so that the tube is effectively a one-turn solenoid. Assume that the magnetic field outside the tube is negligible and the field inside the tube is uniform. (a) What is the magnetic field magnitude inside the tube? (b) What is the inductance of the tube (excluding the flat extensions)?
