Figure 30-39 shows a closed loop of wire that consists of a pair of equal semicircles, of radius3.7 cm, lying in mutually perpendicular planes. The loop was formed by folding a flat circular loop along a diameter until the two halves became perpendicular to each other. A uniform magnetic fieldB→of magnitude 76 mTis directed perpendicular to the fold diameter and makes equal angles (of45°) with the planes of the semicircles. The magnetic field is reduced to zero at a uniform rate during a time interval of4.5 ms. During this interval, what are the (a) magnitude and (b) direction (clockwise or counterclockwise when viewed along the direction of B→) of the emf induced in the loop?

Short Answer

Expert verified
  1. The magnitude of the emf induced in the loop is 5.1×10-2V.
  2. The direction of the emf induced in the loop is counter-clockwise.

Step by step solution

01

The given data

  1. The radius of the semi-circle,r=3.7cm.
  2. The magnitude of the magnetic field,B→=76mT.
  3. The angle made by the field with the plane of the semicircle,θ=450.
  4. The magnetic field is reduced to zero at a uniform rate within time,Δt=4.5ms.
02

Understanding the concept of magnetic field and induced emf

The rate of change of magnetic field within a given time gives the induced emf in the coil which is the number of magnetic turns taken by the coil or the amount of magnetic flux entering the given area of the coil. Thus, the induced emf as per Lenz law is in the direction such that it opposes the change in the magnetic field.

Formulae:

The magnetic flux introduced by the magnetic field,ΦB=BAcosθ (i)

The emf introduced due to change in magnetic flux, ε=-dΦBdt (ii)

03

a) Calculation of the magnitude of the emf induced in the loop.

At first, the total flux introduced by the magnetic field due to two equal pairs of semicircles can be given using the data in equation (i) as follows:

ΦB=2Bπr2/2cosθ∵Area of the semicircle,A=πr2/2=πBr2cos450=πBr22

Now, the value of the emf induced in the given semicircular loop can be calculated using the above data and the given data in equation (ii) as follows:

ε=-ddtπBr22=-πr22ΔBΔt=-π3.7×10-2m220-76×10-3T4.5×10-3s=5.1×10-2V

Hence, the value of the induced emf is 5.1×10-2V.

04

b) Calculation of the direction of the induced emf

The direction of the induced current is clockwise when viewed in the direction of using Fleming’s left-hand rule. Thus, the induced emf would be in the counter-clockwise direction to oppose the increasing magnetic field.

Hence, the direction of induced emf is counterclockwise.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Figure, a rectangular loop of wire with lengtha=2.2cm,widthb=0.80cm,resistanceR=0.40mΩis placed near an infinitely long wire carrying current i = 4.7 A. The loop is then moved away from the wire at constant speed v = 3.2 mm/s. When the center of the loop is at distance r = 1.5b, (a) what is the magnitude of the magnetic flux through the loop?(b) what is the current induced in the loop?

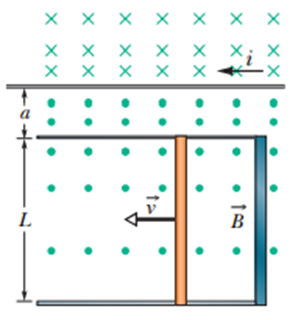

Figure shows a rod of length L = 10.0 cm that is forced to move at constant speed v = 5.0 m/s along horizontal rails. The rod, rails, and connecting strip at the right form a conducting loop. The rod has resistance 0.400Ω; the rest of the loop has negligible resistance. A current i = 100 Athrough the long straight wire at distance a = 10.0 mm from the loop sets up a (non-uniform) magnetic field through the loop. (a) Find the emf. (b) Find the current induced in the loop. c) At what rate is thermal energy generated in the rod? (d) What is the magnitude of the force that must be applied to the rod to make it move at constant speed?(e) At what rate does this force do work on the rod?

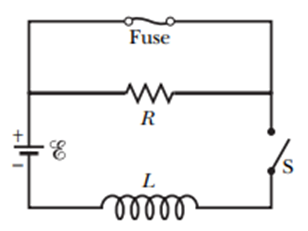

How long would it take, following the removal of the battery, for the potential difference across the resistor in an RL circuit (with L = 2.00H, R = 3.00) to decay to 10.0% of its initial value?

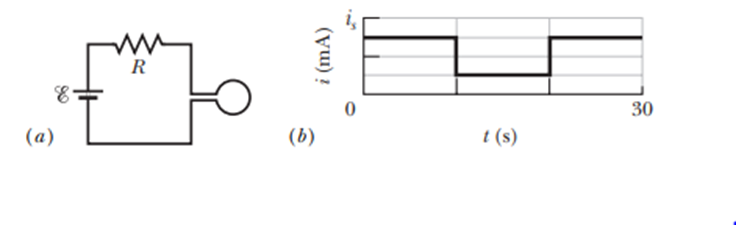

Figure (a) shows a circuit consisting of an ideal battery with emf ε=6.00mV, a resistance R, and a small wire loop of area 500cm2. For the time interval t = 10 s to t = 20 s, an external magnetic field is set up throughout the loop. The field is uniform, its direction is into the page in Figure (a), and the field magnitude is given by B = at, where B is in Tesla, a is a constant, and t is in seconds. Figure (b) gives the current i in the circuit before, during, and after the external field is set up. The vertical axis scale is set byis=2.0mA. Find the constant a in the equation for the field magnitude.
