A moth at about eye level is10 cmin front of a plane mirror; a man is behind the moth,30 cmfrom the mirror. What is the distance between man’s eyes and the apparent position of the moth’s image in the mirror?

Short Answer

Expert verified

The distance between the eyes and the apparent position of the moth’s image in the mirror is, i=40 cm.

Step by step solution

01

Step 1: Identification of the given data

The object distance is,10cm.

A man is 30cmin front of mirror.

02

Determining the concept

Use the property of the plane mirror to find the image distance. Then, calculate the distance between the eyes and the apparent position of the moth’s image in the mirror. For flat mirrors, the image distance and the object distance are equal (typically denoted by the symbol d0) (often represented by the symbol di).In other words, the image is positioned the same distance from the mirror as the object is from the mirror.

Formula are as follows:

For plane mirrors,

The image distance is equal to the object distance.

role="math" localid="1662978167811" Imagedistance=Objectdistance

03

(a) Determining the distance between the eyes and the apparent position of the moth’s image in the mirror.

In the plane mirror, the image is formed at a distance same as the object distance.

Thus,

Imagedistance=Objectdistance=10cm

Hence, the distance between man’s eyes and the apparent position of the moth’s image in the mirror is,

i=30 cm+10 cm=40 cm

Therefore, the distance between the eyes and the apparent position of the moth’s image in the mirroris,i=40 cm.

The image distance from the mirror by using the property of the plane mirror can be calculated.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

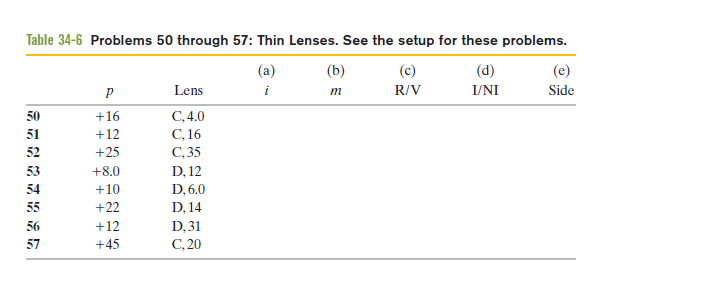

50 through 57 55, 57 53 Thin lenses. Object Ostands on the central axis of a thin symmetric lens. For this situation, each problem in Table 34-6 gives object distance p (centimeters), the type of lens (C stands for converging and D for diverging), and then the distance (centimeters, without proper sign) between a focal point and the lens. Find (a) the image distance localid="1662982946717" iand (b) the lateral magnification m of the object, including signs. Also, determine whether the image is (c) real (R) or virtual (V) , (d) inverted (I) from object O or non inverted (NI), and (e) on the same side of the lens as object Oor on the opposite side.

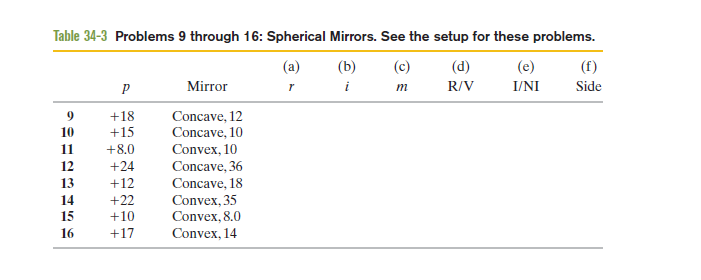

9, 11, 13 Spherical mirrors. Object O stands on the central axis of a spherical mirror. For this situation, each problem in Table 34-3 gives object distance ps(centimeters), the type of mirror, and then the distance (centimeters, without proper sign) between the focal point and the mirror. Find (a) the radius of curvature r(including sign), (b) the image distance localid="1662986561416" i, and (c) the lateral magnification m. Also, determine whether the image is (d) real (R) or virtual (V), (e) inverted (I) from object O or non-inverted (NI), and (f) on the same side of the mirror as O or on the opposite side.

A corner reflector, much used in the optical, microwave, and other applications, consists of three plane mirrors fastened together to form the corner of a cube. Show that after three reflections, an incident ray is returned with its direction exactly reversed.

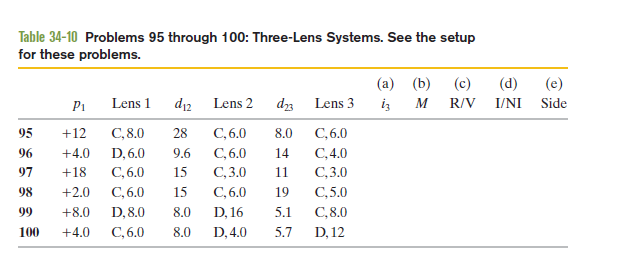

95 through 100. Three-lens systems. In Fig. 34-49, stick figure O (the object) stands on the common central axis of three thin, symmetric lenses, which are mounted in the boxed regions. Lens 1 is mounted within the boxed region closest to O, which is at object distance p1. Lens 2 is mounted within the middle boxed region, at distance d12 from lens 1. Lens 3 is mounted in the farthest boxed region, at distance d23 from lens 2. Each problem in Table 34-10 refers to a different combination of lenses and different values for distances, which are given in centimeters. The type of lens is indicated by C for converging and D for diverging; the number after C or D is the distance between a lens and either of the focal points (the proper sign of the focal distance is not indicated). Find (a) the image distance i3 for the (final) image produced by lens 3 (the final image produced by the system) and (b) the overall lateral magnification M for the system, including signs. Also, determine whether the final image is (c) real (R) or virtual (V), (d) inverted (I) from object O or non-inverted (NI), and (e) on the same side of lens 3 as object O or on the opposite side.

A grasshopper hops to a point on the central axis of a spherical mirror. The absolute magnitude of the mirror’s focal length is 40.0cm, and the lateral magnification of the image produced by the mirror is +0.200. (a) Is the mirror convex or concave? (b) How far from the mirror is the grasshopper?
