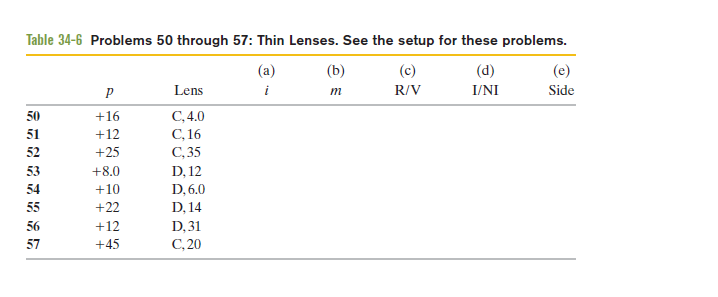

50 through 57 55, 57 53 Thin lenses. Object Ostands on the central axis of a thin symmetric lens. For this situation, each problem in Table 34-6 gives object distance p (centimeters), the type of lens (C stands for converging and D for diverging), and then the distance (centimeters, without proper sign) between a focal point and the lens. Find (a) the image distance localid="1662982946717" iand (b) the lateral magnification m of the object, including signs. Also, determine whether the image is (c) real (R) or virtual (V) , (d) inverted (I) from object O or non inverted (NI), and (e) on the same side of the lens as object Oor on the opposite side.

Short Answer

Expert verified
  1. The image distance i=-38cm.
  2. The lateral magnification of the object ism=+038.
  3. The image is virtualV.
  4. The image is inverted from objectI.
  5. The image on the same side of the object.

Step by step solution

01

Listing the given quantities

The object distance is P=+10cm.

The given lens is diverging (D)

The distance between a focal point and the lens is f=60cm.

02

Understanding the concepts of lens equation and the formula for magnification

We can use the Lens formula. The diverging lens can only form a virtual image.

Formula:
1f=1P+1i

m=-iP

03

(a) Calculations of the image distance

The given lens is a diverging lens, and thus the focal length value should be negative.

f=-60cm.

The image distance:

For an object in front of the lens, object distance Pand image distance iare related to the focal length of the lens.

1f=1P+1i1i=1f-1P

i=PfP-f=+10cm-6.0cm+10cm--6.0cm=-3.8cm

The image distance i=-38cm.

04

(b) Calculations of the magnification

The lateral magnification of the object:

The lateral magnification is the ratio of the object distance Pto the image distance i. It is given by

m=-iP=--3.8cm10cm=0.38

The lateral magnification of the object ism=+038.

05

(c) Explanation

Whether the image is realRor virtualV :

The image distance is negative; hence the image is virtual.

06

(d) Explanation

Whether the image is inverted from objectI or not inverted:

The value of magnification is positive; hence the image is not inverted.

07

(e) Explanation

The position of the image:

The value image distance is negative; hence the image is on the same side as the object.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

You look down at a coin that lies at the bottom of a pool of liquid of depthand index of refraction(Fig. 34-57). Because you view with two eyes, which intercept different rays of light from the coin, you perceive the coin to bewhere extensions of the intercepted rays cross, at depthdainstead of d. Assuming that the intercepted rays in Fig. 34-57 are close to a vertical axis through the coin, show that da=dn.


An object is moved along the central axis of a spherical mirror while the lateral magnification m of it is measured. Figure 34-35 gives m versus object distance p for the rangepa=2cm and pb=8.0cm. What is m for p=14cm?

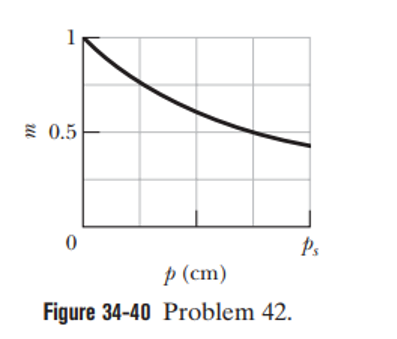

Figure 34-40 gives the lateral magnification of an object versus the object distancefrom a lens asthe object is moved along the central axis of the lens through a range of values for p out to ps=20.0cm. What is the magnification of the objectwhen the object is 35cmfrom the lens?

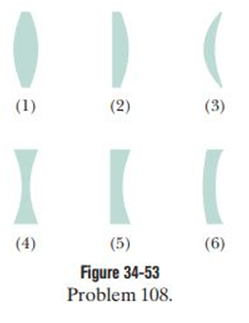

You grind the lenses shown in Fig. 34-53 from flat glass disks (n=1.5)using a machine that can grind a radius of curvature of either 40cmor 60cm. In a lens where either radius is appropriate, you select the 40cmradius. Then you hold each lens in sunshine to form an image of the Sun. What are the (a) focal length fand (b) image type (real or virtual) for (bi-convex) lens 1, (c)f and (d) image type for (plane-convex) lens 2, (e) f and (f) image type for (meniscus convex) lens 3, (g) f and (h) image type for (bi-concave) lens 4, (i) fand (j) image type for (plane-concave) lens 5, and (k) f and (l) image type for (meniscus concave) lens 6?

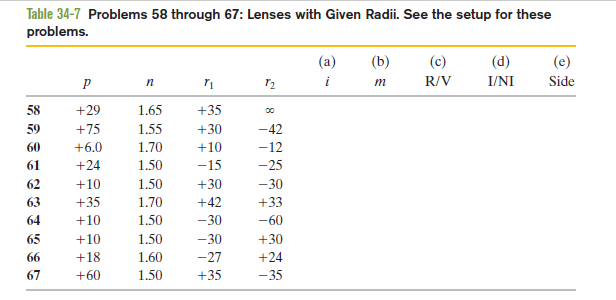

58 through 67 61 59 Lenses with given radii. An object Ostands in front of a thin lens, on the central axis. For this situation, each problem in Table 34-7 gives object distance , index of refraction n of the lens, radius localid="1662989860522" r1of the nearer lens surface, and radius localid="1662988669866" r2of the farther lens surface. (All distances are in centimeters.) Find (a) the image distance iand (b) the lateral magnification m of the object, including signs. Also, determine whether the image is (c) real localid="1662988718474" Ror virtual localid="1662988727007" V, (d) inverted localid="1662988740117" Ifrom object or non-inverted localid="1662989876683" NI, and (e) on the same side of the lens as objectOor on the opposite side.
