Two plane mirrors are placed parallel to each other and 40cmapart. An object is placed 10cmfrom one mirror. Determine the (a) smallest, (b) second smallest, (c) third smallest (occurs twice), and (d) fourth smallest distance between the object and image of the object.

Short Answer

Expert verified
  1. The smallest distance between the object and the image of the object is 20cm.
  2. The second smallest distance between the object and the image of the object is60cm.
  3. The third smallest (occurs twice) distance between the object and the image of the object is80cm.
  4. The fourth smallest distance between the object and the image of the object is 100cm.

Step by step solution

01

The given data:

  • Distance between two parallel plane mirrors is40cm.
  • Distance between object and first mirror is 10cm.
02

Understanding the concept of image formation in theplane mirror

As two plane mirrors are placed parallel to each other separated by a distance of 40cm, they will form images as shown in the below diagram. Each mirror produces a first image of the object. Then, each mirror produces a second image with the object being the first image in the opposite mirror. Then each mirror produces a third image with the object being the second image in the opposite mirror, and so on. Therefore, the mirrors will produce five images. Here, you find the smallest distance, second smallest distance, third smallest distance, and fourth smallest distance between the object and an image of the object.

03

(a) Calculation of the smallest distance between the object and the image:

To know the smallest distance, yourefer the above figure. In the closest mirrorM1, the 鈥渇irst鈥 imageI1is 10cm behindrole="math" localid="1663022915939" M1and thus,20cm from the object O. This is the smallest distance between the object and an image of the object.

Hence, the smallest distance is 20cm.

04

(b) Calculation of the second smallest distance between the object and the image:

To know the second smallest distance, refer the above figure. There are images from both OandI1in the more distant mirror,M2an imageI2located at 30cmbehindM2. Since Ois 30cm in front of it,I2is 60cm from O. This is the second smallest distance between the object and an image of the object.

Hence, the second smallest distance is 60cm.

05

(c) Calculation of the third smallest distance between the object and the image:

To know the third smallest distance, refer the above figure. There is also an image I3that is 50cmbehind M2 (since I1 is 50cm in front of it). Thus, I3is 80cmfrom O. In addition, you have another image I4that is 70cm behind role="math" localid="1663023685109" M1 (since I2 is 70cm in front of it). The distance from I4 to O for is 80cm.

Hence, the third smallest distance is 80cm.

06

(d) Calculation of the fourth smallest distance between the object and the image

To know the fourth smallest distance, yourefer the above figure. Returning to the closer mirrorM1, there is an imageI5that is 90cm behind the mirror (sincerole="math" localid="1663023840894" I3is 90cm in front of it). The distance (measured from O) is found to be 100cmforI5.

Hence, the fourth smallest distance is 100cm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

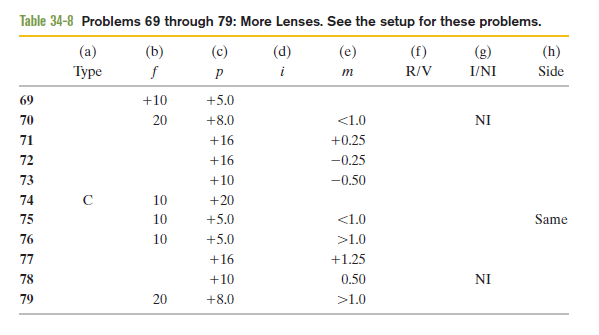

69 through 79 76, 78 75, 77 More lenses. Object ostands on the central axis of a thin symmetric lens. For this situation, each problem in Table 34-8 refers to (a) the lens type, converging C or diverging D , (b) the focal distance f , (c) the object distance p, (d) the image distance i, and (e) the lateral magnification m. (All distances are in centimeters.) It also refers to whether (f) the image is real Ror virtual V, (g) inverted I or non-inverted (NI) from O, and (h) on the same side of the lens as Oor on the opposite side. Fill in the missing information, including the value of m when only an inequality is given, where only a sign is missing, answer with the sign.

An object is 20cmto the left of a thin diverging lens that has a 30cmfocal length. (a) What is the image distance i? (b) Draw a ray diagram showing the image position.

Figure 34-33 shows an overhead view of a corridor with a plane mirror Mmounted at one end. A burglar Bsneaks along the corridor directly toward the center of the mirror. Ifd=3m, how far from the mirror will she from the mirror when the security guardScan first see her in the mirror?

An object is placed against the center of a converging lens and then moved along the central axis until it is 5.0mfrom the lens. During the motion, the distance between the lens and the image it produces is measured. The procedure is then repeated with a diverging lens. Which of the curves in Fig. 34-28 best gives versus the object distance p for these lenses? (Curve 1 consists of two segments. Curve 3 is straight.)

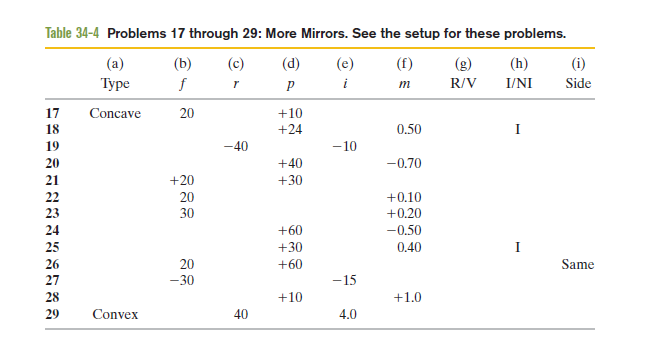

17 through 29 22 23, 29 More mirrors. Object O stands on the central axis of a spherical or plane mirror. For this situation, each problem in Table 34-4 refers to (a) the type of mirror, (b) the focal distancef, (c) the radius of curvaturer, (d) the object distancep, (e) the image distancei, and (f) the lateral magnification localid="1663002056640" m. (All distances are in centimeters.) It also refers to whether (g) the image is real (R)or virtual (V), (h) inverted (I)or noninverted (NI)from O, and (i) on the same side of the mirror as the object O or on the opposite side. Fill in the missing information. Where only a sign is missing, answer with the sign.
