The mysterious sliding stones.Along the remote Racetrack Playa in Death Valley, California, stones sometimes gouge out prominent trails in the desert floor, as if the stones had been migrating (Fig. 6-18). For years, curiosity mounted about why the stones moved. One explanation was that strong winds during occasional rainstorms would drag the rough stones over ground softened by rain. When the desert dried out, the trails behind the stones were hard-baked in place. According to measurements, the coefficient of kinetic friction between the stones and the wet playground is about.What horizontal force must act on astone (a typical mass) to maintain the stone’s motion once a gust has started it moving? (Story continues with Problem 37)

Short Answer

Expert verified

The horizontal force must act on a 20Kg stone to maintain the stone’s motion once a gust has started it moving is 156.96 N.

Step by step solution

01

Given

Mass of the stone,m=20kg

Coefficient of kinetic friction force,μk=0.80

02

Determine the formula for the net force as follows:

The problem is based on Newton’s second law of motion which states that the rate of change of momentum of a body is equal in both magnitude and direction of the force acting on it. Use Newton's 2nd law of motion along vertical and horizontal direction.

Consider the formula for the net force as:

Fnet=∑ma

Here, F is the net force, mis mass and ais an acceleration

03

Determine the free body diagram

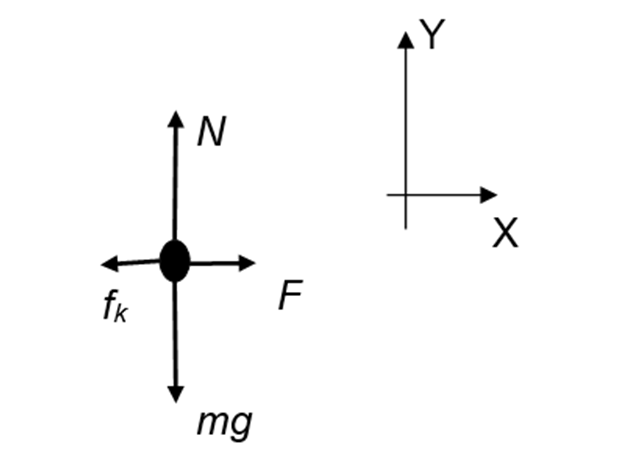

Free body diagram of the stone:

04

Determine thehorizontal force

Kinetic frictional force must act on the stone during its motion,

To find its magnitude, use Newton’s 2nd law along y direction,

Stone is not moving along y.So, the acceleration is 0, it gives,

∑Fy=0N-mg=0N=mg

Kinetic frictional force is defined as:

fk=μkN=μkmg

Substitute the values and solve as:

fk=0.80209.81=156.96 N

Therefore, the horizontal force must act on a 20kg stone (a typical mass) to maintain the stone’s motion once a gust has started it moving is 156.96 N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Calculate the ratio of the drag force on a jet flying at 1000km/hat an altitude of10kmto the drag force on a prop-driven transport flying at half that speed and altitude. The density of air is 0.38kg/m3at 10kmand 0.67kg/m3at 5.0km.Assume that the airplanes have the same effective cross-sectional area and drag coefficient C.

A block is pushed across a floor by a constant force that is applied at downward angle θ(Fig. 6-19). Figure 6-36 gives the acceleration magnitude a versus a range of values for the coefficient of kinetic friction μkbetween block and floor: a1=3.0m/s, μk2=0.20, μk3=0.40.What is the value of θ?

Assume Eq. 6-14 gives the drag force on a pilot plus ejection seat just after they are ejected from a plane traveling horizontally at1300km/h. Assume also that the mass of the seat is equal to the mass of the pilot and that the drag coefficient is that of a sky diver. Making a reasonable guess of the pilot’s mass and using the appropriatevtvalue from Table 6-1, estimate the magnitudes of (a) the drag force on the pilot seatand (b) their horizontal deceleration (in terms of g), both just after ejection. (The result of (a) should indicate an engineering requirement: The seat must include a protective barrier to deflect the initial wind blast away from the pilot’s head)

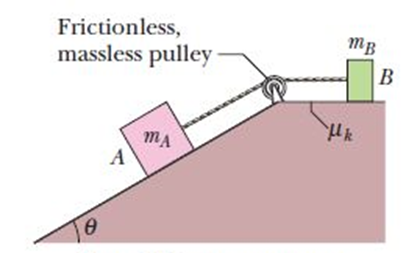

Block Ain Fig. 6-56 has mass mA=4.0kg, and block Bhas mass mB=2.0kg.The coefficient of kinetic friction between block B and the horizontal plane is μk=0.50.The inclined plane is frictionless and at angle θ=30°. The pulley serves only to change the direction of the cord connecting the blocks. The cord has negligible mass. Find

(a) the tension in the cord and

(b) the magnitude of the acceleration of the blocks.

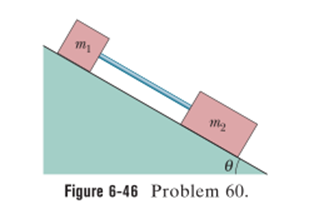

In Fig. 6-46, a box of ant aunts (total massm1=1.65kg) and a box of ant uncles (total massm=3.30kg) slide down an inclined plane while attached by a massless rod parallel to the plane. The angle of incline isθ=30.0°. The coefficient of kinetic friction between the aunt box and the incline isμ1=0.226; that between the uncle box and the incline isμ2=0.113.Compute

(a) the tension in the rod and

(b) the magnitude of the common acceleration of the two boxes.

(c) How would the answers to (a) and (b) change if the uncles trailed the aunts?
