In Fig. 6-57, a stuntman drives a car (without negative lift) over the top of a hill, the cross section of which can be approximated by a circle of radius R = 250 m. What is the greatest speed at which he can drive without the car leaving the road at the top of the hill?

Short Answer

Expert verified

The greatest speed at which he can drive without the car leaving the road at the top of the hill 178 km/h .

Step by step solution

01

Identification of the given data

The given data is shown as below,

The radius of the path is,R = 250 m

02

Definition of centripetal force and Newton’s second law

Newton’s second law of motion states that the acceleration of an object is dependent upon the net force acting upon the object and the mass of the object. Also, it involvescentripetal force.

A centripetal force is a force that makes a body follow a curved path.

03

Determination of the greatest speed at which the stuntman can drive without the car leaving the road at the top of the hill

At the top of the circular hill the vertical forces on the car are the upward normal force exerted by the ground and the downward pull of gravity. Write the expression for the force.

mg-FN=mv2R

Here, mis the mass of the car, g is the acceleration due to gravity, FNis the upward normal force exerted by the ground, v is the greatest speed at the given conditions, Rand is the radius of the path.

It is known that FN=0. So, substitute it in the above expression and rearrange it.

mg-0=mv2Rmg=mv2Rg=v2Rv2=gRv=gR

Substitute 9.8 m/s2 for g, and 250 m forR in the above expression.

v=9.8m/s2×250m=49.5m/s=49.5×36001000km/h=178km/h

Thus, the greatest speed at which he can drive without the car leaving the road at the top of the hill 178 km/h .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 6-23, a sled is held on an inclined plane by a cord pulling directly up the plane. The sled is to be on the verge of moving up the plane. In Fig. 6-28, the magnitude Frequired of the cord’s force on the sled is plotted versus a range of values for the coefficient of static frictionμs between sled and plane: F1=2.0N, F2=5.0N, and μ2=0.50. At what angle θis the plane inclined?

In Fig. 6-12, if the box is stationary and the angle θ between the horizontal and force F→is increased somewhat, do the following quantities increase, decrease, or remain the same: (a) Fx;(b) fs;(c) FN;(d) fs,max(e) If, instead, the box is sliding and θis increased, does the magnitude of the frictional force on the box increase, decrease, or remain the same?

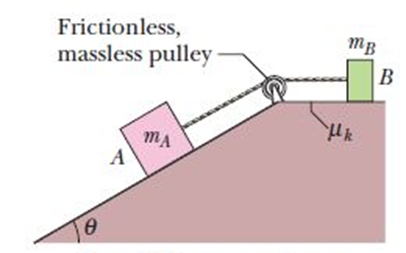

Block Ain Fig. 6-56 has mass mA=4.0kg, and block Bhas mass mB=2.0kg.The coefficient of kinetic friction between block B and the horizontal plane is μk=0.50.The inclined plane is frictionless and at angle θ=30°. The pulley serves only to change the direction of the cord connecting the blocks. The cord has negligible mass. Find

(a) the tension in the cord and

(b) the magnitude of the acceleration of the blocks.

Figure 6-32 shows three crates being pushed over a concrete floor by a horizontal force of magnitude 440N. The masses of the crates are m1=30.3kg, m2=10.1kg, and m2=20.0kg.The coefficient of kinetic friction between the floor and each of the crates is 0.700. (a) What is the magnitude F32of the force on crate 3 from crate 2? (b) If the crates then slide onto a polished floor, where the coefficient of kinetic friction is less than 0.700, is magnitude F32more than, less than, or the same as it was when the coefficient was 0.700?

A bolt is threaded onto one end of a thin horizontal rod, and the rod is then rotated horizontally about its other end. An engineer monitors the motion by flashing a strobe lamp onto the rod and bolt, adjusting the strobe rate until the bolt appears to be in the same eight places during each full rotation of the rod (Fig. 6-42). The strobe rate is2000flashes per second; the bolt has mass30gand is at radius3.5cm. What is the magnitude of the force on the bolt from the rod?
