Tension (T) is 4.6 N

Step-By-Step-Solution

Step 2: Determining the concept

The problem is based on Newton’s second law of motion which states that the rate of change of momentum of a body is equal in both magnitude and direction of the force acting on it. Thus, using the free body diagramdifferent forces acting on the objects can be found. Further, using Newton's second law of motion, the acceleration and tension in the cord can be computed.

Formula:

According to the Newton’s second law of motion,

$F_{net}=∑Ma$

Step 3: Determining the tension in the cord

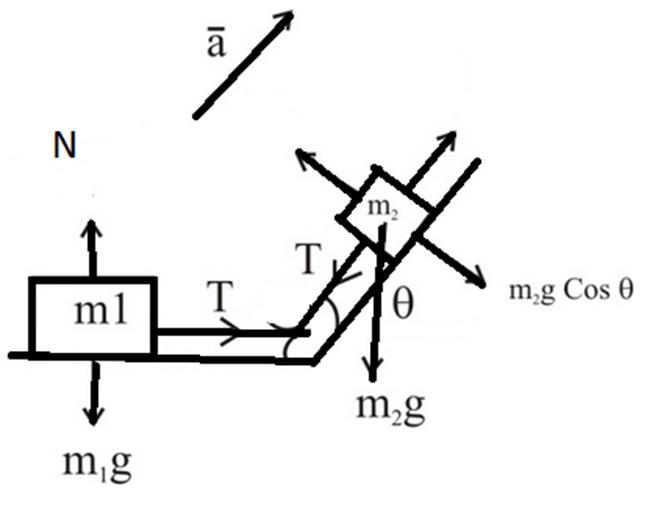

Free Body Diagram:

$F-T-m_{2}gs\mathrm{in}\left(\mathrm{θ}\right)=m_2^{}a$

$T=m_{1}a$

By solving above two equations,

$a=\frac{F-m_{2}g\sin \left(\mathrm{θ}\right)}{\left(m+m_2\right)}$

$\begin{array}{l}a=\frac{12-(1×98×sin({37}^a)}{(3+1)}\\ =153{\mathrm{mm}}^2\end{array}$

Now, tension is given by,

$\begin{array}{l}T=m_{1}a\\ =3×1.53\\ =4.6N\end{array}$

Hence, tension is 4.6 N
