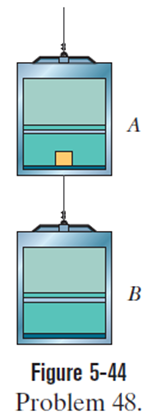

• The masses of the elevator cabs are,$M_{\mathit{A}}=1700\mathrm{kg},{\mathrm{M}}_{\mathrm{B}}=1300\mathrm{kg}$
• The tension in the cable connecting the cabs is,$T=1.91×{10}^4\mathrm{N}$
• Mass of the box,$M=12.0\mathrm{kg}$

Newton’s second law states that the net force acting on the body is equal to the vector sum of all the forces. The force is also equal to the product of mass and acceleration of the object.

Using the free body diagram and Newton’s second law, we can find the magnitude of the normal force acting on the box from the floor of cab A.

Formulae:

Newton’s second law is,

$F_{net}=\underset{}{∑}Ma$

The forces acting on the cab B are Tension in the upward direction and weight in the downward direction. The net acceleration is in the upward direction. We can draw FBD for cab B to understand this situation and find the acceleration.

From FBD, we can write as,

$$\begin{gathered} {\mathrm{M}}_{\mathrm{B}}\mathrm{a}=\mathrm{T}-{\mathrm{M}}_{\mathrm{B}}\mathrm{g} \\ \mathrm{a}=\frac{\mathrm{T}-{\mathrm{M}}_{\mathrm{B}}\mathrm{g}}{{\mathrm{M}}_{\mathrm{B}}} \\ =\frac{\left[\left(1.91×{10}^4\mathrm{N}\right)-\left(1300\mathrm{kg}×9.8\mathrm{m}/{\mathrm{s}}^2\right)\right]}{1300\mathrm{kg}} \\ =4.89\mathrm{m}/{\mathrm{s}}^2 \end{gathered}$$

Therefore, the acceleration of the cab is $4.89\mathrm{m}/{\mathrm{s}}^2$. Both cab A and B will have the same acceleration.

Since, both the cabs have the same acceleration, the box in cab A will also have the same acceleration. The forces on the box are, the weight of the box in the downward direction, and the normal force acting on the box. Free body diagram for box placed on the elevator cab A:

From FBD, we can write as,

$$\begin{gathered} F_N-Mg=Ma \\ {F}_N=M\left(g+a\right) \\ =12\mathrm{kg}\left(9.8\mathrm{m}/{\mathrm{s}}^2+4.89\mathrm{m}/{\mathrm{s}}^2\right) \\ =176\mathrm{N} \end{gathered}$$

Therefore, the normal force on the box is 176 N.
