Holding on to a towrope moving parallel to a frictionless ski slope, askier is pulled up the slope, which is at an angle of8.00with the horizontal. What is the magnitude of the force on the skier from the rope when (a) the magnitude vof the skier’s velocity is constant atlocalid="1657161930942" 2.0m/sand (b) as vincreases at a rate oflocalid="1657161837037" 0.10m/s2?

Short Answer

Expert verified

(a) The magnitude of the force on the skier from the rope when the skier moves with constant velocity,Frope=68N.

(b) The magnitude of the force on the skier from the rope when the skier moves with varying velocity,Frope=73N.

Step by step solution

01

Given information

  • The mass of the skier is,m=50kg.
  • The inclination angle with the horizontal is,θ=8.00.
  • The initial velocity of the skier is,v=2.0m/s.
  • The acceleration of the skier is,role="math" localid="1657163136849" a=0.10m/s2.
02

Understanding the concept

A free body diagram has to be drawn. By using Newton’s second law and vector resolution concept, the force on the skier at constant velocity and with varying velocity can be found.

Formula:

Fnet→=ma→

03

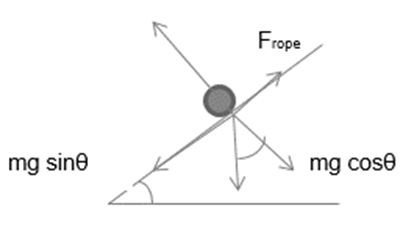

Draw the free body diagram

04

 Calculate the magnitude of the force on the skier from the rope when skier moves with constant velocity

By applying Newton’s second law along x axis as,

Fnet→=ma→

The skier is moving with constant velocity hence it has zero acceleration. Consider the sign convention according to the direction of the skier,

role="math" localid="1657164170548" Frope-mgsinθ=0Frope=mgsinθ=50kg×9.8m/s2×sin8.00=68N

Therefore, the magnitude of the rope force is 68 N.

05

Calculate the magnitude of the force on the skier from the rope

The skier is going up with the rate of acceleration, hence according to the Newton’s second law,

Frope-mgsinθ=maFrope=ma+mgsinθ=50kg×0.10m/s2+50kg×9.8m/s2×sin(8.00)=73N

Hence, the magnitude of the rope force, in this case, will be73 N .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A vertical forceF→ is applied to a block of mass m that lies on a floor. What happens to the magnitude of the normal forceF→N on the block from the floor as magnitudeF→ is increased from zero if force is (a) downward and (b) upward?

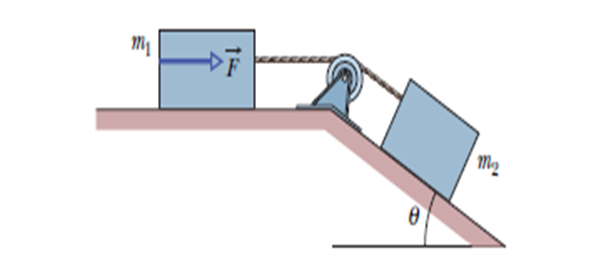

Figure shows a box of mass m2=1.0kgon a frictionless plane inclined at angle θ=30°°. It is connected by a cord of negligible mass to a box of massm1=3.0kgon a horizontal frictionless surface. The pulley is frictionless and mass less.(a) If the magnitude of horizontal forceF→is 2.3 N, what is the tension in the connecting cord? (b) What is the largest value the magnitude ofF→may have without the cord becoming slack?

Figure shows a section of a cable-car system. The maximum permissible mass of each car with occupants is 2800 kg. The cars, riding on a support cable, are pulled by a second cable attached to the support tower on each car. Assume that the cables are taut and inclined at angle θ=35°. What is the difference in tension between adjacent sections of pull cable if the cars are at the maximum permissible mass and are being accelerated up the incline at 0.81 m/s2?

A certain particle has a weight of 22Nat a point where. localid="1656143387519" g=9.8m/s2What are its:(a) weight and (b) mass at a point where localid="1656143411696" g=4.9m/s2? What are its (c) weight and(d) mass if it is moved to a point in space where g=0?

A block of mass Mis pulled along a horizontal frictionless surface by a rope of mass m, as shown in Fig. 5-63. A horizontal forceF→acts on one end of the rope.(a) Show that the rope must sag, even if only by an imperceptible amount. Then, assuming that the sag is negligible, find (b) the acceleration of rope and block, (c) the force on the block from the rope, and (d) the tension in the rope at its midpoint.
