A car that weighs 1.30×104N is initially moving at role="math" localid="1656996519190" 40km/h when the brakes are applied and the car is brought to a stop in role="math" localid="1656996543045" 15m. Assuming the force that stops the car is constant, find (a) the magnitude of that force and (b) the time required for the change in speed. If the initial speed is doubled, and the car experiences the same force during the braking, by what factors are (c) the stopping distance and (d) the stopping time multiplied? (There could be a lesson here about the danger of driving at high speeds.)

Short Answer

Expert verified
  1. The magnitude of the force is5.5×103N
  2. Time required for change in speed2.7sec
  3. Stopping distance will increase by factor 4 when speed will be doubled
  4. Stopping time will increase by factor 2 when speed will be doubled

Step by step solution

01

Given information

  • Mass of the car ism=1.30×104N ,
  • The initial velocity of the car isv0=40kmhr1000m1km1hr3600s=11.2m/s ,
  • The stopping distance is∆×=15m .
02

Understanding the concept of kinematic equations

Kinematic equations are a set of equations of motion that relate to the velocity, acceleration, displacement, and time of the motion of a particle.

We have given the weight of the car, so we can calculate its mass. We can calculate the car’s acceleration as we have its speed and stopping distance. As we know the acceleration so, we can calculate the force on the car.

Formulae.

v2=v02+2a∆× (1)

v=v0+at (2)

localid="1657002300051" F=ma (3)

03

Calculate the mass of the car

We can find the mass of the body from the equation of weight.

W=mg

m=Wg

=1.30×104N9.8m/s2

=1326kg

Therefore, the mass of the car is1326kg .

04

Calculate the acceleration of the car

We know that the final velocity of the car is zero. By using the given initial velocity and stopping distance in equation (1), we can find the acceleration of the car.

Rearrange the equation (1) and substitute the value of the given quantities, we get

a=-v022∆×

=-11.2m/s2×15m2=-4.12m/s2

Therefore, the magnitude of the acceleration is -4.12m/s2

05

(a) Calculate the stopping force

We know that force is a stopping force that acts in the opposite direction of motion. Therefore, equation (3) can be written as,

-F=ma-F=1327kg×-4.12m/s2F=5.5×103N

Therefore, the stopping force is equal to 5.5×103N .

06

(b) Calculate the time for a change in speed

The final velocity is zero as the car comes to stop. We have calculated acceleration in the above part. Using the value of initial, final velocity, and acceleration in equation (2), we can find the time required for stopping the car. Substitute the values in equation (2).

t=-v0a=-11.11m/s-4.12m/s2=2.7s

Therefore, the time required for the car to stop is 2.7s

07

(c) Calculate by what factors are the stopping distance multiplied

If we doubled the initial speed of the car then we know that from the kinematic equation we can say that v0are ∆×directly proportional to each other. So, doubling of v0is a quadrupling of ∆×. That is, it increases by factor 4.

08

(d) Calculate by what factors are the stopping time multiplied

From equation (2), we can see that tandv0are directly proportional. So, doubling one is doubling the other. Therefore, if we double the v0 then stopping time will increase by a factor of 2.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A 2.0kgparticle moves along an xaxis, being propelled by a variable force directed along that axis. Its position is given by role="math" localid="1657014461331" x=3.0m+(4.0m/s)t+ct2-(2.0m/s)t3, with xin meters and tin seconds. The factor cis a constant. Atthe force on the particle has a magnitude of 36Nand is in the negative direction of the axis. What is c?

Figure shows a section of a cable-car system. The maximum permissible mass of each car with occupants is 2800 kg. The cars, riding on a support cable, are pulled by a second cable attached to the support tower on each car. Assume that the cables are taut and inclined at angle θ=35°. What is the difference in tension between adjacent sections of pull cable if the cars are at the maximum permissible mass and are being accelerated up the incline at 0.81 m/s2?

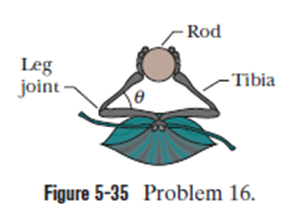

Some insects can walk below a thin rod (such as a twig) by hanging from it. Suppose that such an insect has mass mand hangs from a horizontal rod as shown in Figure, with angleθ=40°its six legs are all under the same tension, and the leg sections nearest the body are horizontal. (a) What is the ratio of the tension in each tibia (forepart of a leg) to the insect’s weight? (b) If the insect straightens out its legs somewhat, does the tension in each tibia increase, decrease, or stay the same?

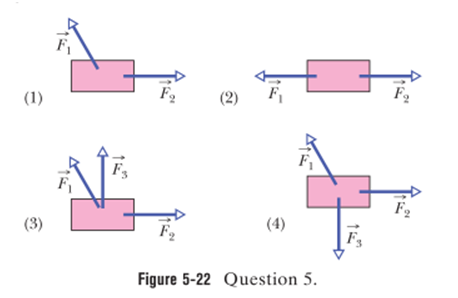

Figure 5-22 shows overhead views of four situations in which forces act on a block that lies on a frictionless floor. If the force magnitudes are chosen properly, in which situations is it possible that the block is

(a) stationary and

(b) moving with a constant velocity?

There are two horizontal forces on the 2.0 kgbox in the overhead view of the Figure but only one (of magnitudeF1=20N) is shown. The box moves along the xaxis. For each of the following values for the accelerationaxof the box, find the second force in unit-vector notation(a)10m/s2(b)20m/s2(c)0m/s2(d)-10m/s2(e)-20m/s2
