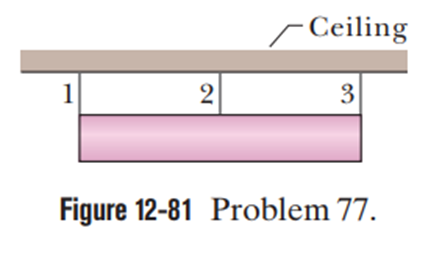

Figure 12-81 shows a 300 k²µ cylinder that is horizontal. Three steel wires support the cylinder from a ceiling. Wires 1 and 3 are attached at the ends of the cylinder, and wire 2 is attached at the center. The wires each have a cross-sectional area of2.00×10−6m2 . Initially (before the cylinder was put in place) wires 1 and 3 were2.0000″¾2 long and wire 2 was 6.00″¾mlonger than that. Now (with the cylinder in place) all three wires have been stretched. What is the tension in (a) wire 1 and (b) wire 2?

Short Answer

Expert verified
  1. The tension in the wire 1,F1=1380 N.
  2. The tension in the wire 2, F2=180 N.

Step by step solution

01

Understanding the given information

The mass of the cylinder,m=300 k²µ

The cross-sectional area of each wire,A=2.00×10−6″¾2

The original length of wires 1 and 3,L1=L2=L=2.0000″¾

The elongation in the wire 1 and 3 is more than in wire 2 by an amount of

y=6.00″¾m10−3″¾1″¾m=6.00×10−3″¾

02

Concept and formula used in the given question

You draw the free body diagram. The system is at equilibrium, for such a system, the vector sum of the forces acting on it is zero. You can use the concept of elasticity for steel wires. There is Young’s modulus of elasticity for steel wire. The formulas used are given below.

FA=EΔ³¢LΣF→net=0

03

(a) Calculation for the tension in wire 1


Three steel wires support the cylinder from the ceiling as shown in the figure. Due to steel material, there is Young’s modulus of elasticity produced in these wires. This is a static equilibrium condition hence the wires1and3must be stretched thin wire2by an amount ofy. Then all the wires have the same length after elongation as,

role="math" localid="1661350203235" Δ³¢1=Δ³¢3=Δ³¢2+y â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰â¶Ä‰(1)

According to the expression of Young’s modulus of elasticityEas

FA=EΔ³¢L

For the wire 1as

F1A=EΔ³¢1L1Δ³¢1=EL1F1A

For the wire 2 as

F2A=EΔ³¢2L2Δ³¢2=EL2F2A

For The wire 3 as

F3A=EΔ³¢3L3Δ³¢3=EL3F3A

Equation (1) becomes as

EL1F1A=EL3F3A=EL2F2A+yF1=F3=F2+yEAL

This is the static equilibrium condition for the cylinder.

According to the static equilibrium condition, the sum of the vertical forces acting on the beam is zero.

Hence,

Σ¹óynet=0F1+F3+F2−mg=0F1+F1+F1−yEAL−mg=0F1=mg+yEAL3F1=300kg×9.8″¾/s2+6.00×10−3 m×200×109N/m2×2.00×10−6 m22.0000m3F1=1380 N

04

(b) Calculation for the tension in wire 2

F1=F2+yEALF2=F1−yEALF2=1380N−6.00×10−3 m×200×109 N/³¾2×2.00×10−6 m22.0000mF2=180 N

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

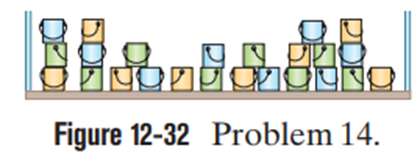

Question: In Fig.12-32, a horizontal scaffold, of length 2.00 m and uniform mass 50 kg , is suspended from a building by two cables. The scaffold has dozens of paint cans stacked on it at various points. The total mass of the paint cans is 75 kg . The tension in the cable at the right is 722 N . How far horizontally from thatcable is the center of mass of the system of paint cans?

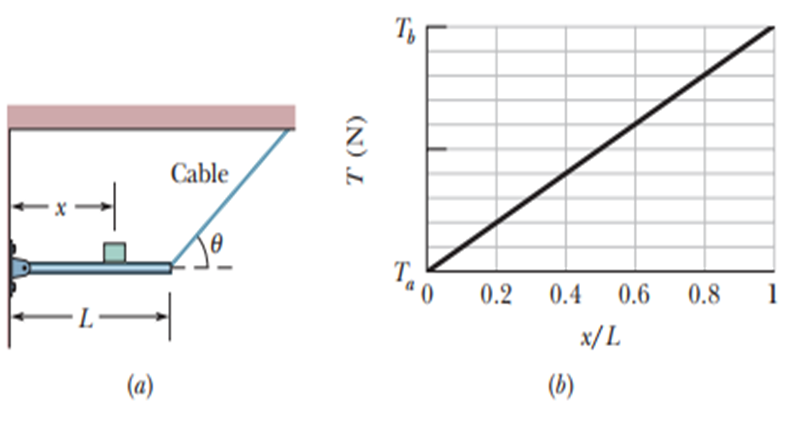

Figure (a) shows a horizontal uniform beam of massmband lengthLthat is supported on the left by a hinge attached to a wall and on theright by a cable at angle θ with the horizontal. A package of mass mp is positioned on the beam at a distance x from the left end. The total mass ismb+mp=61.22kg. Figure (b) gives the tension T in the cable as a function of the package’s position given as a fraction x/L of the beam length. The scale of the T axis is set by Ta=500N and Tb=700N.

(a) Evaluate angleθ ,

(b) Evaluate massmb , and

(c) Evaluate mass mp.

Figure 12-62 is an overhead view of a rigid rod that turns about a vertical axle until the identical rubber stoppersAand Bare forced against rigid walls at distancesrA=7.0cmandrB=4.0cmfrom the axle. Initially the stoppers touch the walls without being compressed. Then forceFof magnitude 220Nis applied perpendicular to the rod at a distance R=5.0cmfrom the axle. Find the magnitude of the force compressing (a) stopperA, and (b) stopper.B

A uniform cube of side length 8.0 c³¾ rests on a horizontal floor.The coefficient of static friction between cube and floor is m. A horizontal pull P→is applied perpendicular to one of the vertical faces of the cube, at a distance 7.0 c³¾above the floor on the vertical midline of the cube face. The magnitude of P→is gradually increased. During that increase, for what values ofμ will the cube eventually (a) begin to slide and (b) begin to tip? (Hint:At the onset of tipping, where is the normal force located?)

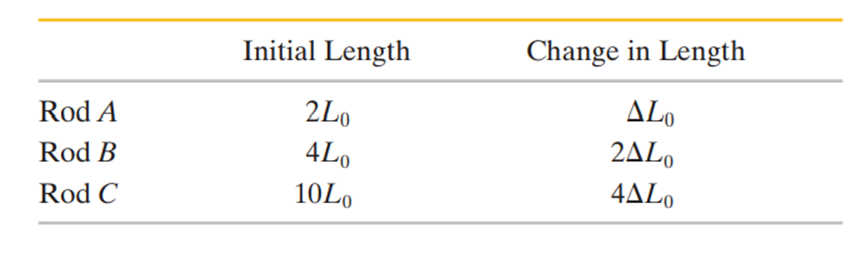

The table gives the initial lengths of three rods and the changes in their lengths when forces are applied to their ends to put them under strain. Rank the rods according to their strain, greatest first.
